ENGLISH
9

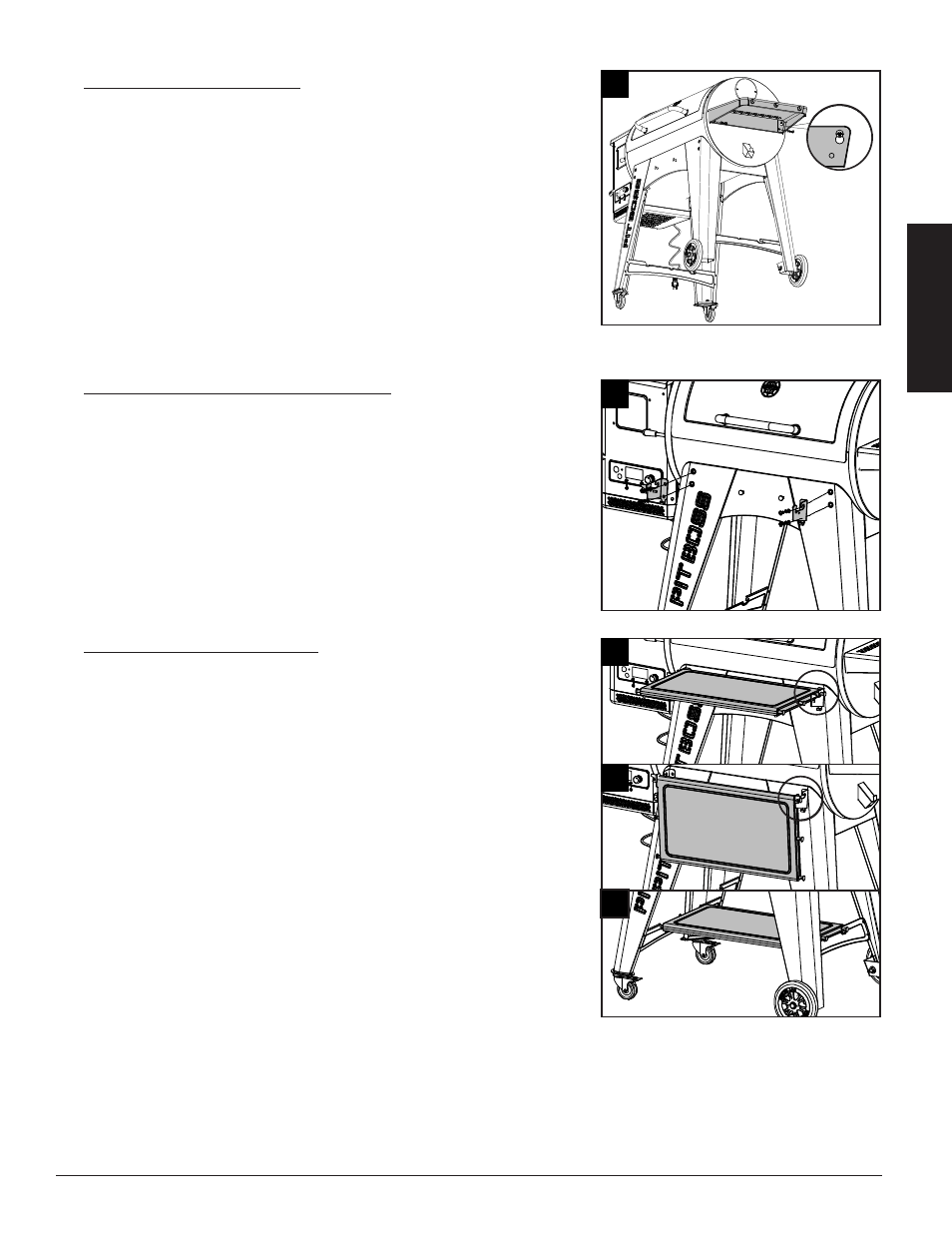

13. INSTALLING THE SIDE SHELF
Parts Required:
1 x Side Table (#27)
2 x Screw (#A)
2 x Washer (#B)
2 x Locking Washer (#C)
Installation:
• Loosen the two pre-installed screws from the side of the Main Barrel.
Hook up the Side Shelf on the screws first then secure the two pre-
loosened screws into place.
• From underneath, secure the Side Shelf to the side panel of the Main
Barrel using two screws, washers, and locking washers.
14. SECURING THE FRONT SHELF BRACKETS
Parts Required:
1 x Front Shelf Bracket Right (#24)
1 x Front Shelf Bracket Left (#25)
4 x Screw (#A)
4 x Washer (#B)
4 x Locking Washer (#C)
Installation:
• Secure each Front Shelf Support Bracket onto the Front Support Leg by
using two screws, washers and locking washers.
15. INSTALLING THE FRONT SHELF
Parts Required:
1 x Front Shelf (#22)
Installation:
• Place the Front Shelf on the Front Shelf Support Brackets. Note
illustration 15A as unfolded Front Shelf.
• Note illustration 15B as folded Front Shelf.
• Front Shelf can also be placed on the Bottom Support Plates and be used
as Bottom Plate. Note illustration 15C.
14
25
24
ACB
ACB
15A
15B
15C
22
22
22
13
27
BCA
