ENGLISH
7

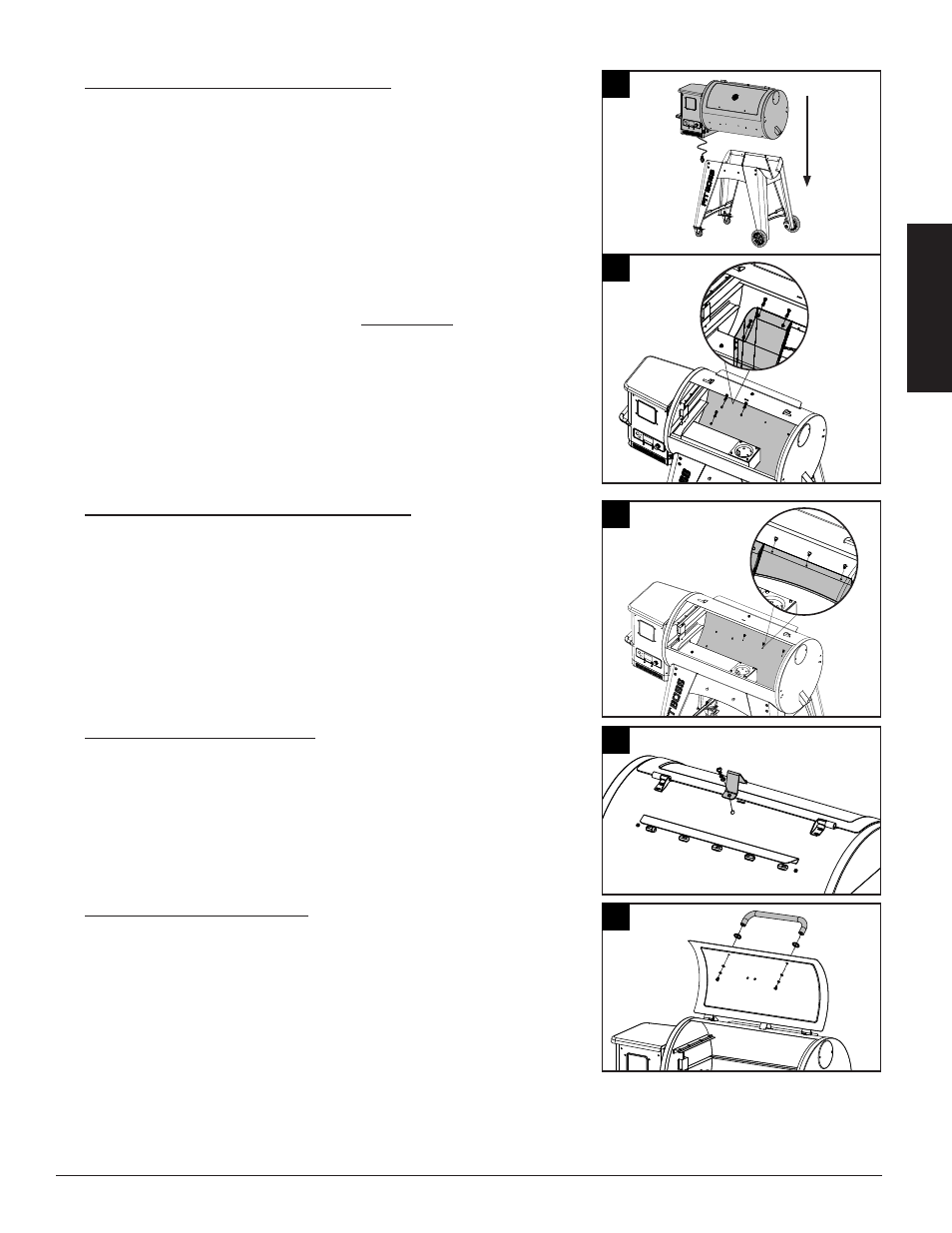

6. MOUNTING MAIN BARREL TO THE CART
Parts Required:
1 x Main Barrel (#4)
12 x Screw (#A)
12 x Washer (#B)
12 x Locking Washer (#C)
Installation:
• Prepare the Main Barrel to be mounted to the Cart. Carefully, lift the Cart
into an upright position with the wheels on the bottom. Position the
Cart next to the Main Barrel, with both facing the same direction. Lock
the Caster Wheels on the Cart. Using a second person, prepare to lift the
Main Barrel onto the Cart. With one person lifting from the hopper side,
and the other person lifting from the opposing barrel end, carefully lift
the Main Barrel, and slowly lower onto the Cart. Note illustration 6A.
• Next, open the Main Barrel lid. Adjust the rotation as needed to align
the screw holes of the Main Barrel to the Cart. Once placed, secure each
leg to the Main Barrel using three screws, washers, and locking washers.
Note illustration 6B.
7. SECURING SUPPORT PLATES TO THE GRILL
Parts Required:
6 x Screw (#E)
Installation:
• Secure each Long Support Plate to the Main Barrel using three screws .
8. INSTALLING THE LID STOPPER
Parts Required:
1 x Lid Stopper (#1)
Installation:
• Secure the Lid Stopper onto the top of the Main Barrel using the pre-
installed screw on top of the Main Barrel.
9. INSTALLING THE LID HANDLE
Parts Required:
1 x Lid Handle (#2)
2 x Lid Handle Bezel (#3)
Installation:
• Remove the pre-installed screws from the Lid Handle. From inside the
barrel lid, insert one screw protrude to the outside. Add a Bezel on
the screw. Then hand-tighten the screw (from the inside) into the Lid
Handle. Repeat for other side.
6A
4
6B
B
A
C
7
8
1
9 2
3
3
