ENGLISH
6

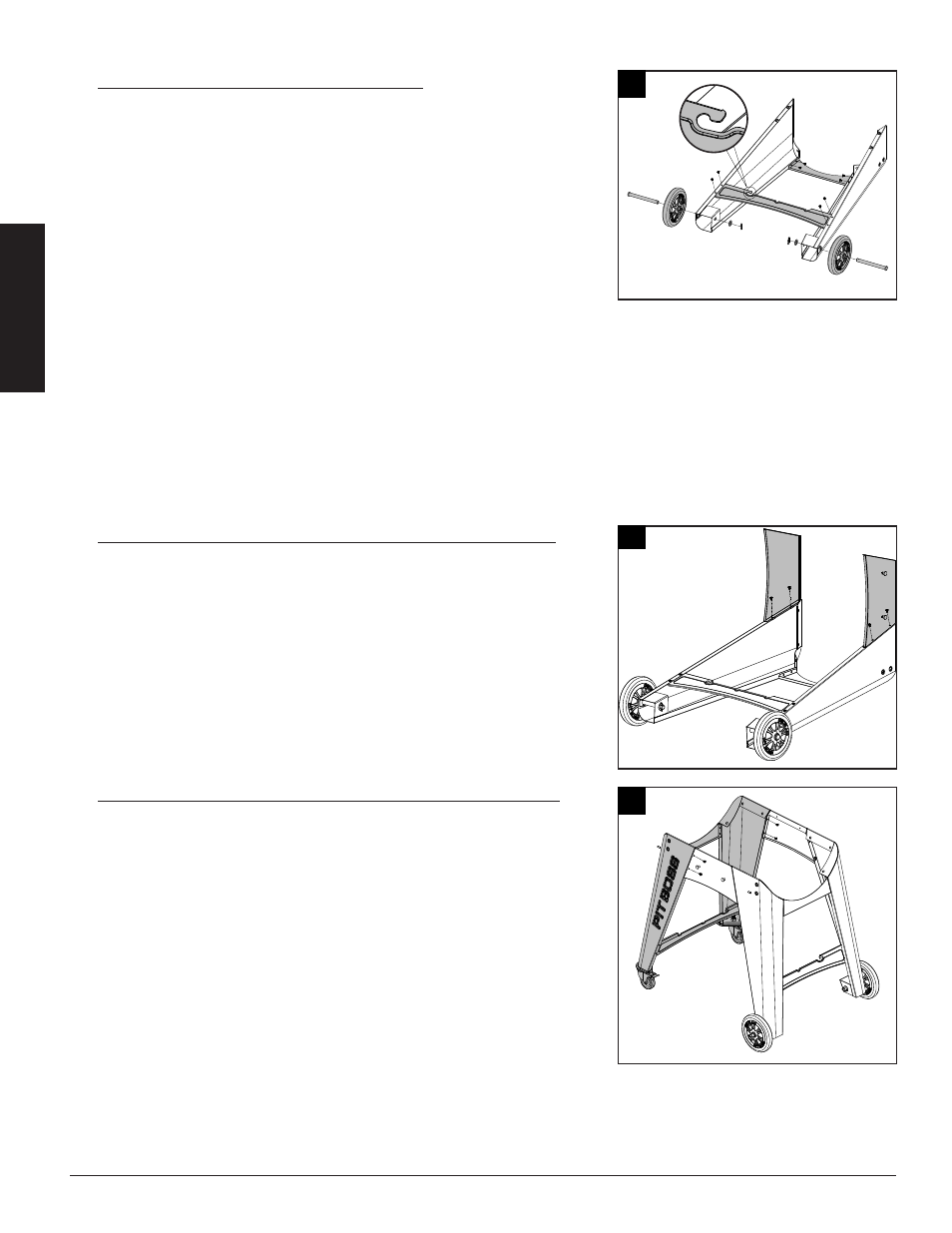

3. SECURING SUPPORT PLATES AND WHEELS
Parts Required:
1 x Right Front Leg (#11)
1 x Right Back Leg (#12)
1 x Right Bottom Support Plate (#17)
1 x Short Support Plate (#19)
2 x Wheel (#16)
8 x Screw (#D)
2 x Wheel Axle Pin (#F)
2 x Wheel Cotter Pin (#G)
2 x Wheel Washer (#H)
Installation:
• Install one Short Support Plate to the side of the unit between of a Front
and Back Support Legs using four screws. Repeat the same installation
to mount the Bottom Support Plate to the same legs.
• Attach the large Wheel to the Support Leg by inserting the Wheel Axle
Pin through the Wheel Support Leg hole, then secure using the Wheel
Cotter Pin. Repeat installation for other Wheel on the same side.
NOTE: Make sure Bottom Support Plate is facing up with correct direction.
4. SECURING SUPPORT PLATE TO SUPPORT LEGS FOR WHEELS
Parts Required:
1 x Front Long Support Plate (#20)
1 x Back Long Support Plate (#21)
4 x Screw (#D)
Installation:
• Secure one Long Support Plate to one Support Leg for Wheel using two
screws. Ensure the flat side of the Support Plate is facing outwards.
Repeat the same installation to mount the other Long Support Plate to
the other Support Leg.
5. SECURING SUPPORT PLATE TO SUPPORT LEGS FOR CASTERS
Parts Required:
4 x Screw (#D)
Installation:
• Next, Secure the Long Support Plates to the Support Legs for Caster
Wheel. Secure using two screws for each plate.
5
3
12
11
19
17
16
16
F
F
G H
H G
4
21
20
