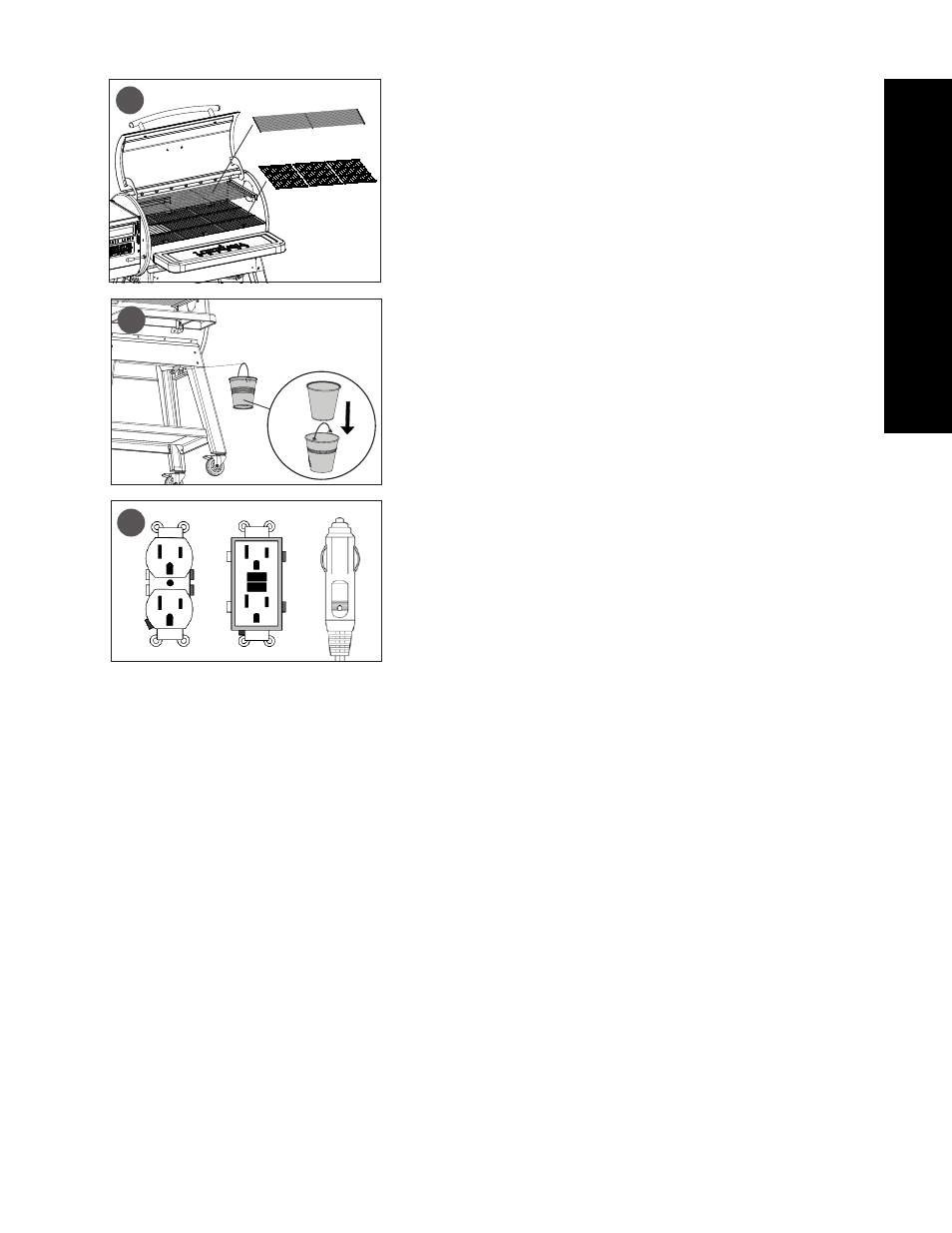

INSTALLING THE COOKING COMPONENTS
PARTS REQUIRED:
1
x Upper Cooking Rack (#1)
3 x Cooking Grids (#2)
INSTALLATION:
• Place the three Cooking Grids side-by-side on the lower grid ledges inside the
Main Grill.
• Following, place the Upper Cooking Rack on the upper ledge inside the Main
Grill. The Upper Cooking Rack will lock into place.
IMPORTANT: TO MAINTAIN OPTIMAL SEARING AND GRILLING PERFORMANCE
OF YOUR COOKING GRIDS, REGULAR CARE AND MAINTENANCE IS REQUIRED.
PLACING THE GREASE BUCKET
PARTS REQUIRED:
1
x Grease Bucket Liner (#8)
1 x Grease Bucket (#9)
INSTALLATION:
• Insert the Grease Bucket Liner inside the Grease Bucket, then place the
Grease Bucket on the spout hook on the underside of the grill. Ensure it is
level to avoid grease spills.
• The unit is now completely assembled.
CONNECTING TO A POWER SOURCE
STANDARD OUTLET
This unit requires 110-120 Volt, 60 Hz, 375 Watt. It must be a 3-prong grounded plug.
Ensure grounded end is not broken off. The control uses a 110-120 volt, fast-blow
fuse to protect the board from the igniter.
GFCI OUTLETS
This unit works on most GFCI outlets, with a recommended size of 15 amp service.
If the GFCI outlet is highly sensitive to power surges, it will likely trip during the
start-up phase of operation. During the start-up phase, the igniter draws 300-700
watts of electricity which can be too much power for a GFCI outlet to handle. Each
time the GFCI trips, it increases in sensitivity. If the GFCI keeps tripping, replace the
outlet or change to a non-GFCI outlet.
ON THE ROAD
Disconnect the igniter from the main wiring harness. Use the manual start-up
procedure. The Louisiana Grills® unit can operate using a 12 volt, 100 watt positive
wave length inverter plugged into your automobile outlet. To use the automatic
igniter, it is recommended to use a minimum of a 1000 watt positive wave length
inverter.
IMPORTANT: DISCONNECT UNIT FROM POWER SOURCE WHEN NOT IN USE.
11
10
9
8
Place the cooking grids, side-by-side, on the grid ledge inside
the main grill. Place the upper cooking rack on the upper
ledge inside the main grill. The cooking rack will lock into
place.
Place the cooking grids, side-by-side, on the grid ledge inside
the main grill. Place the upper cooking rack on the upper
ledge inside the main grill. The cooking rack will lock into
place. Place the cooking grids, side-by-side, on the grid ledge inside
the main grill. Place the upper cooking rack on the upper
ledge inside the main grill. The cooking rack will lock into
place.
9 1
2 2 2
