LOUISIANA GRILLS
2
ENGLISH
ENGLISH
COPYRIGHT NOTICE
Copyright 2021. All right reserved. No part
of this manual may be copied, transmitted,
transcribed, stored in a retrieval system,
in any form or by any means without
expressed written permission of,
DANSONS
3411 North 5th Avenue, Suite 500,
Phoenix, AZ, USA 85013
CUSTOMER CARE
USA: (480) 923-9632
Canada (Toll Free): 1-877-942-2246
www.louisiana-grills.com
ASSEMBLED (WxHxD) WEIGHT
1,464 x 1,172 x 823 mm /
57.6 x 46.1 x 32.4 in 91.8 kg /
202.4 lb
COOKING AREA TEMPERATURE RANGE
Upper - 2,722 cm² / 422.0 sq. in.
Lower - 4,894 cm² / 758.6 sq. in.
TOTAL - 7,616 cm² / 1,180.6 sq. in.
82-315°C /
180-600°F
LG1200BL
ELECTRIC REQUIREMENTS
110-120 V, 60 Hz, 375 W, 3-prong grounded plug
NOTE: Due to ongoing product development, parts are subject to change without notice. Contact
Customer Care if parts are missing when assembling the unit.

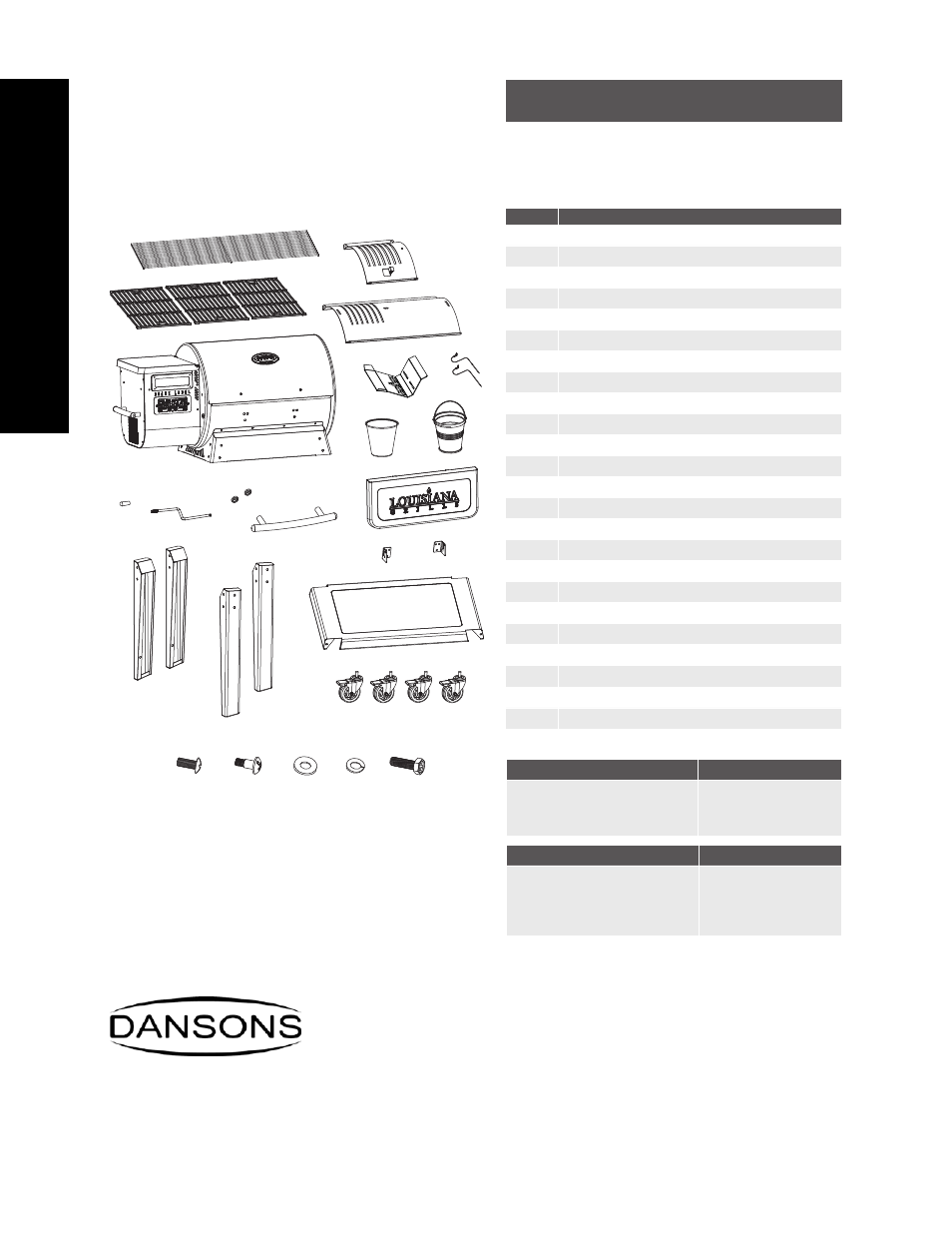

PART# DESCRIPTION
1 Upper Cooking Rack (x1)
2 Cooking Grids (x3)
3 Flame Broiler Slider (x1)
4 Flame Broiler Main Plate (x1)
5 Main Barrel / Hopper Assembly (x1)
6 Burn Grate (x1)
7 Meat Probe (x2)
8 Grease Bucket Liner (x1)
9 Grease Bucket (x1)
10 Flame Broiler Adjusting Bar Handle (x1)
11 Flame Broiler Adjusting Bar (x1)
12 Lid Handle Bezel (x2)
13 Lid Handle (x1)
14 Front Shelf (x1)
15 Front Shelf Bracket / Left (x1)
16 Front Shelf Bracket / Right (x1)
17 Bottom Shelf (x1)
18 Support Leg A (x2)
19 Support Leg B (x2)
20 Locking Caster Wheel (x4)
A Screw (x30)
B Screw (x2)
C Washer (x32)
D Locking Washer (x32)
E Screw (x2)
A B C D E
1
2
3
4
5
6
9
8
10
11
12
13
14
15
16
17
7
18
19
20
