LOUISIANA GRILLS
6
ENGLISH
ENGLISH
Insert the Flame Broiler Adjusting Bar through the opening
hole on the left side of the Main Barrel. Add the Flame Broiler
Adjusting Bar Handle on the end outside the Barrel. Next,
slide the notched end of the Adjusting Bar into the locking tab
on the Flame Broiler Slider, giving you adjustable access to
the Flame Broiler Slider on the Main Plate. Note illustration.
INSTALLING THE FLAME BROILER COMPONENTS
PARTS REQUIRED:
1
x Flame Broiler Slider (#3)
1 x Flame Broiler Main Plate (#4)
1 x Flame Broiler Adjusting Bar Handle (#10)
1 x Flame Broiler Adjusting Bar (#11)
INSTALLATION:
NOTE: SOME OF THE COOKING COMPONENTS MAY BE LIGHTLY COATED WITH
OIL TO AVOID RUSTING WHEN SHIPPED.

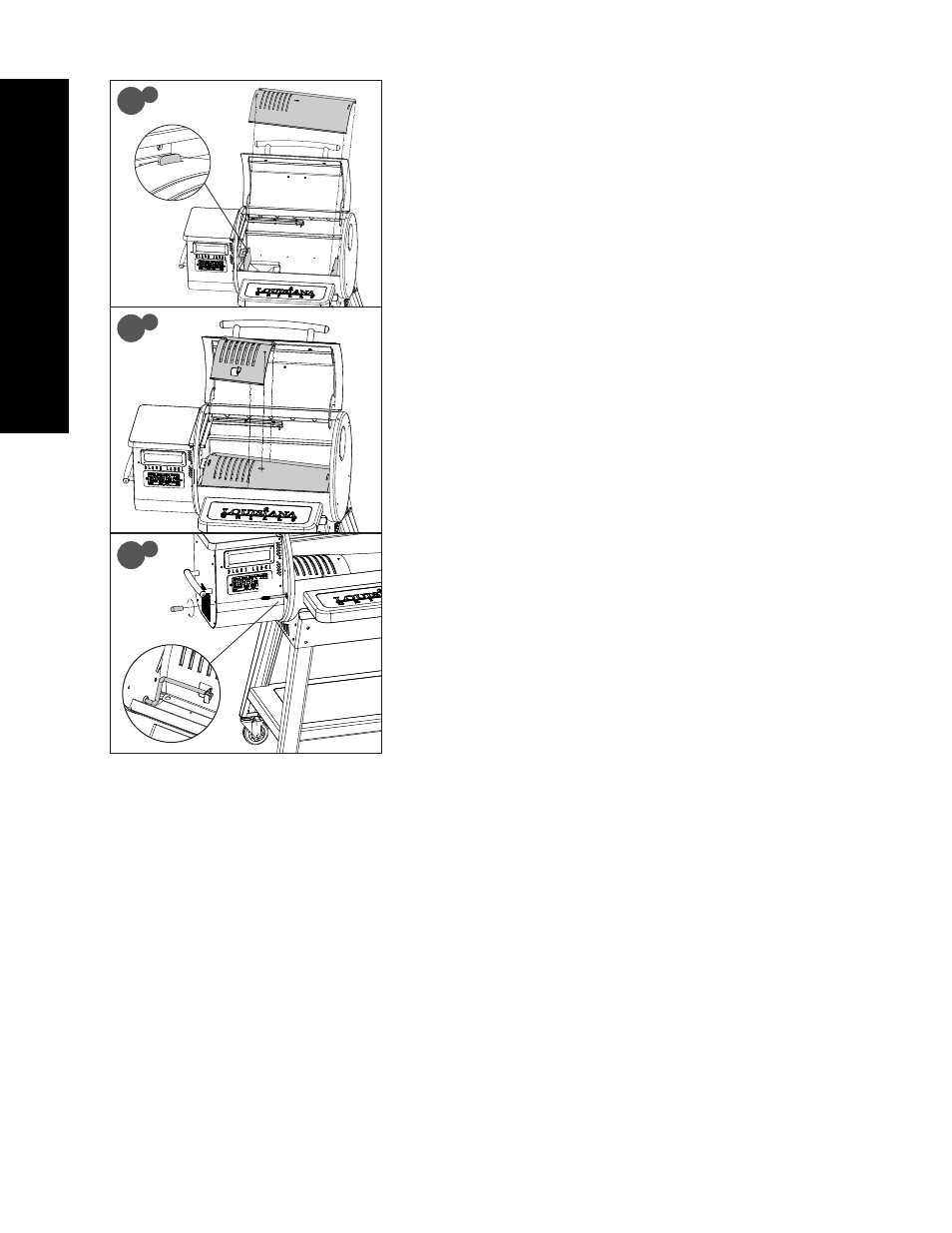

• Insert the Flame Broiler Main Plate into the grill barrel. Rest the Flame Broiler
Main Plate on the built-in ledge, right side first, of the Main Barrel that directs
grease towards the Grease Bucket. Slide the entire piece to the left side,
and the Main Plate will lock into the raised tab above the Burn Grate. Note
illustration 8A.
IMPORTANT: IF THE MAIN PLATE IS RESTING ON THE BASE OF THE BARREL,
IT IS INSTALLED INCORRECTLY. THE FLAME BROILER MAIN PLATE IS USED TO
DISTRIBUTE THE HEAT EVENLY. POOR INSTALLATION OF THIS PART MAY RESULT
IN DAMAGE TO YOUR MAIN GRILL BARREL.
• Place the Flame Broiler Slider on top of the Flame Broiler Main Plate. Ensure
the small anchor pin on the right side of the Flame Broiler Slider goes into the
small pin hole of the Flame Broiler Main Plate. Note illustration 8B.
cooking. Note illustration
openings. Ensure the raised tab is on the left, to easily adjust for direct or indirect flame when
Place the flame broiler slider on top of the flame broiler main plate, covering the slotted
grate. Note illustration . The flame broiler main plate is used to distribute the heat evenly.
Slide the entire piece to the left side, and the tray will lock into the raised tab above the burn
built-in ledge, right side first, of the main grill that directs grease towards the grease bucket.
Insert the flame broiler main plate into the grill barrel. Rest the flame broiler main plate on the
NOTE: Both flame broiler parts are lightly coated with oil to avoid rusting when shipped.
1x Porcelain-Coated Steel Upper Cooking Rack (#17)
2x Porcelain-Coated Cast-Iron Cooking Grids (#16)
1x Smoke Adjusting Bar (#15)
1x Smoke Adjusting Bar Knob (#14)
1x Flame Broiler Main Plate (#13)
1x Flame Broiler Slider (#12)
8.INSTALLING THE COOKING COMPONENTS
cooking. Note illustration
openings. Ensure the raised tab is on the left, to easily adjust for direct or indirect flame when
Place the flame broiler slider on top of the flame broiler main plate, covering the slotted
grate. Note illustration . The flame broiler main plate is used to distribute the heat evenly.
Slide the entire piece to the left side, and the tray will lock into the raised tab above the burn
built-in ledge, right side first, of the main grill that directs grease towards the grease bucket.
Insert the flame broiler main plate into the grill barrel. Rest the flame broiler main plate on the
NOTE: Both flame broiler parts are lightly coated with oil to avoid rusting when shipped.
1x Porcelain-Coated Steel Upper Cooking Rack (#17)
2x Porcelain-Coated Cast-Iron Cooking Grids (#16)
1x Smoke Adjusting Bar (#15)
1x Smoke Adjusting Bar Knob (#14)
1x Flame Broiler Main Plate (#13)
1x Flame Broiler Slider (#12)
8.INSTALLING THE COOKING COMPONENTS
(#4)
Insert the Flame Broiler Adjusting Bar through the opening
hole on the left side of the Main Barrel. Add the Flame Broiler
Adjusting Bar Handle on the end outside the Barrel. Next,
slide the notched end of the Adjusting Bar into the locking tab
on the Flame Broiler Slider, giving you adjustable access to
the Flame Broiler Slider on the Main Plate. Note illustration.
• Remove the Flame Broiler Adjusting Bar Handle from the Flame Broiler
Adjusting Bar by twisting it off. Insert the Bar through the opening hole on
the left side of the Main Barrel. Add the Bar Handle back onto the end that
protrudes from the Main Barrel. Next, slide the notched end of the Bar into
the locking tab on the Flame Broiler Slider, giving you adjustable access to the
Flame Broiler Slider on the Main Plate. Note steps in 8C.
NOTE: WHEN THE FLAME BROILER SLIDER IS OPEN, AND DIRECT FLAME IS USED
WHILE COOKING, DO NOT LEAVE THE GRILL UNATTENDED FOR ANY PERIOD OF TIME.
8 A
8 B
8 C
4
3
4
10
11
