ENGLISH
8

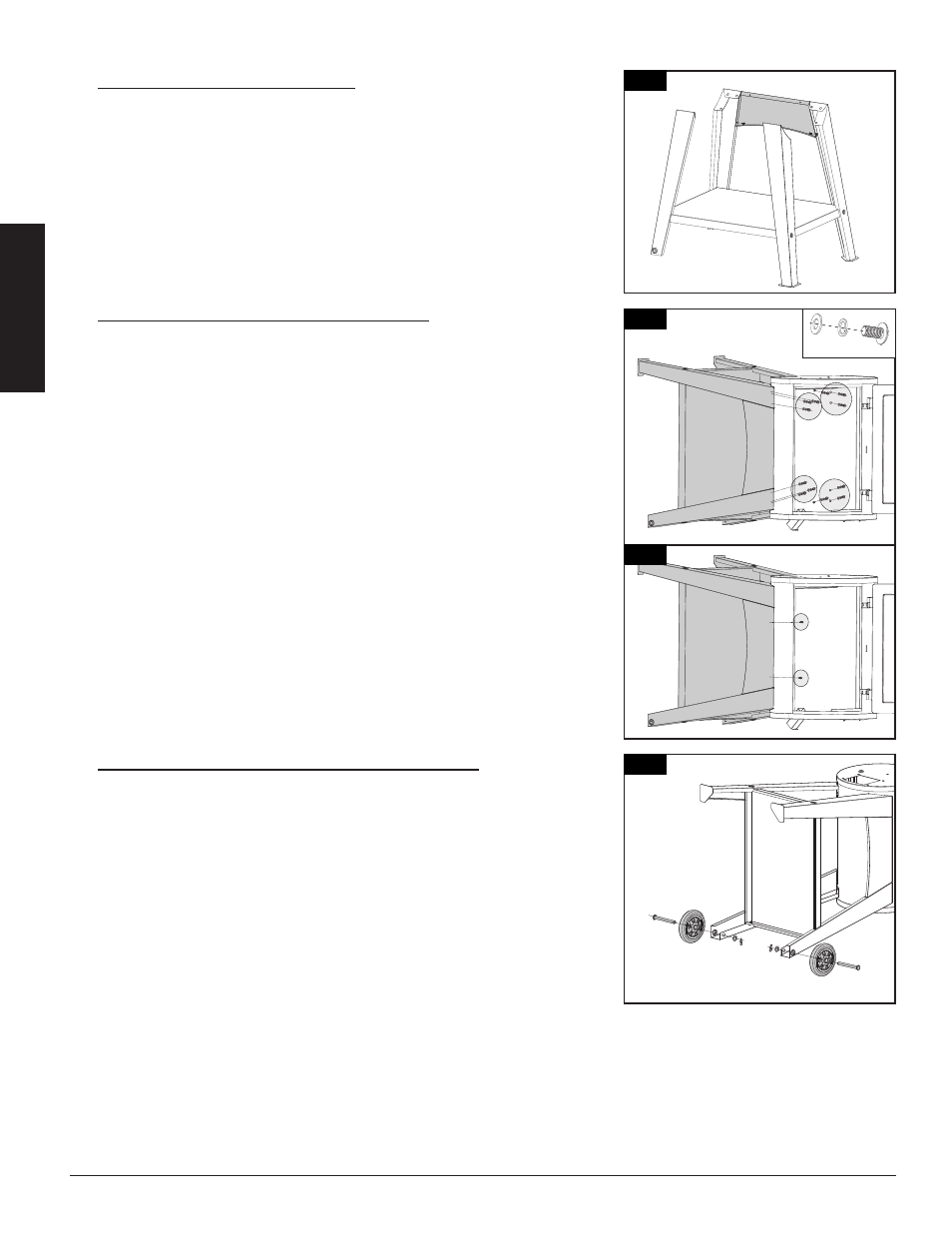

2. MOUNTING THE SUPPORT PANEL
Parts Required:
1 x Support Panel (#20)
2 x Screw (#G)
Installation:
• Mount the Support Panel to the front two Support Legs of the unit using
two screws. Ensure the flat side of the Support Plate is facing outwards.
3. SECURING THE MAIN BARREL TO THE CART
Parts Required:
1 x Main Barrel (#13)
12 x Screw (#A)
12 x Washer (#B)
12 x Locking Washer (#C)
2 x Screw (#G)
Installation:
• Lay Main Barrel down on its side on the cardboard, hopper end pointed
upward. Lay the Cart next to the Main Barrel with the Support Panel
facing the front.
• Secure the Main Barrel to each Support Leg using three screws, locking
washers, and washers. Install the hardware from the inside of the
Main Barrel. Note illustration 3A.
• Secure the Support Panel to the Main Barrel using two screws (#G).
Note illustration 3B.
NOTE: Once all screw are installed, then tighten securely into the legs.
4. MOUNTING THE WHEELS TO THE CART ASSEMBLY
Parts Required:
2 x Wheels (#23)
2 x Wheel Cotter Pin (#D)
2 x Wheel Washer (#E)
2 x Wheel Axle Pin (#F)
Installation:
• Attach the Wheel to the Support Leg by inserting the Wheel Axel Pin
through the leg hole, Wheel Washer, and finally secure using the Wheel
Cotter Pin. Note illustration. Repeat installation for the other wheel.
• Carefully lift the grill into an upright position.
2
20
G
G
3A
3B
4
23
23
F
F
E
E
D D
A
B C
13
BCA
BCA
G
G
