ENGLISH
10

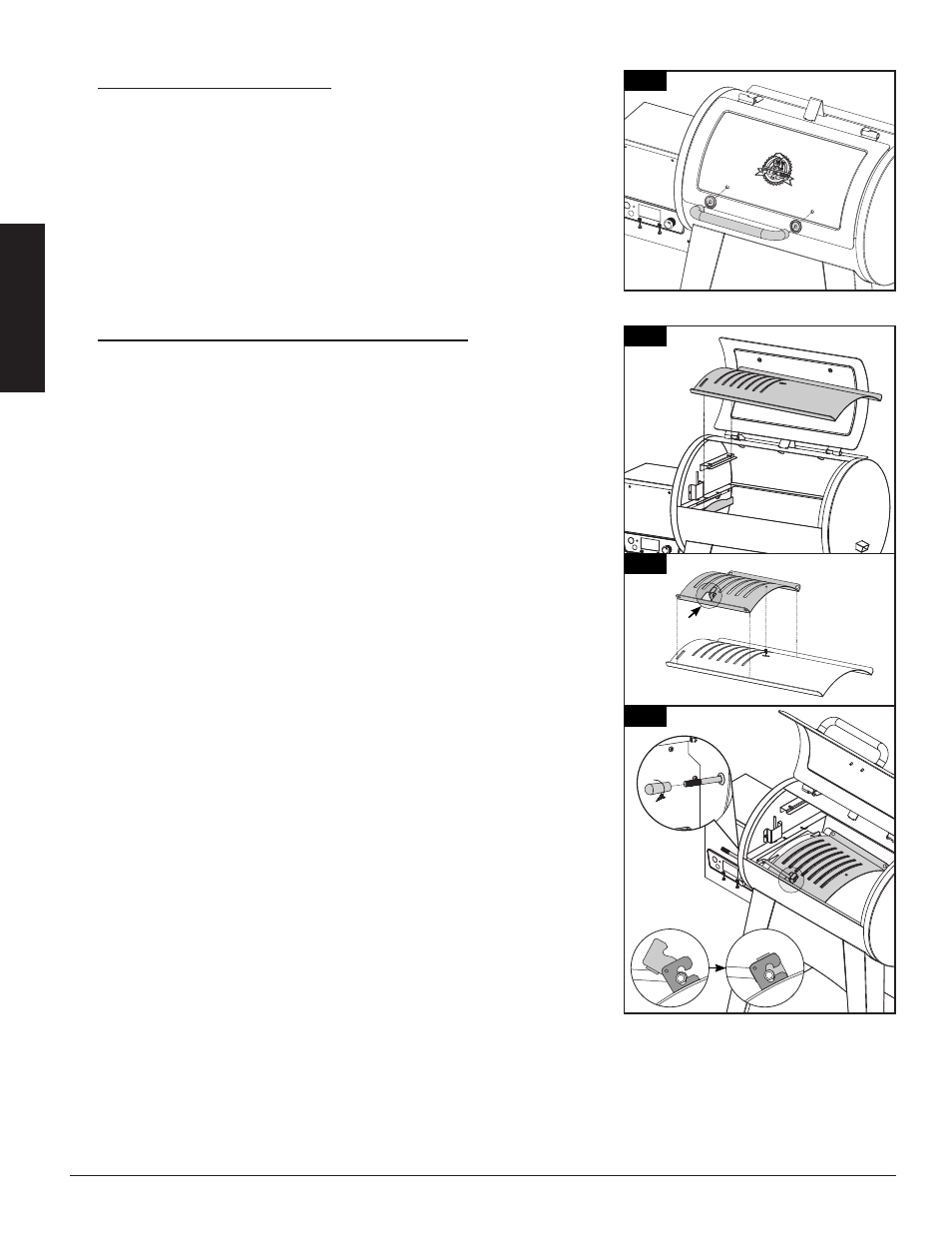

7. ASSEMBLING THE LID HANDLE
Parts Required:
2 x Lid Handle Bezel (#8)
1 x Lid Handle (#9)
Installation:
• Remove the pre-installed hardware from the lid handle. From inside
the barrel lid, insert one screw to protrude to the outside. Add a
bezel on the screw, then hand-tighten the screw, locking washer, and
washer (from the inside) into the lid handle. Repeat same installation
for other end of lid handle.
8. INSTALLING THE FLAME BROILER COMPONENTS
Parts Required:
1 x Flame Broiler Slider (#6)
1 x Flame Broiler Main Plate (#7)
1 x Flame Broiler Adjusting Bar Handle (#18)
1 x Flame Broiler Adjusting Bar (#19)
Installation:
• Insert the Flame Broiler Main Plate into the Main Barrel, right side
first. Rest the Flame Broiler Main Plate on the built-in ledge (on the
inside right) of the Main Barrel that directs grease towards the grease
bucket. Slide the entire piece to the left side, and the two slots on the
Flame Broiler Main Plate will fit into the rounded ledge above the Burn
Pot. It will sit slightly at a downward angle. Note 8A.
IMPORTANT: If the Flame Broiler Main Plate is on the base of the
barrel, it is installed incorrectly. The Flame Broiler Main Plate should
sit at an angle, with the left side sitting higher than the right. Poor
installation of this part may result in damage to your Main Barrel.
• Place the Flame Broiler Slider on top of the Flame Broiler Main Plate,
covering the slotted openings. Ensure the raised tab is closest to the
front edge. Note illustration 8B. Both Flame Broiler parts are lightly
coated with oil to avoid rusting when shipped.
• Next, remove the Flame Broiler Adjusting Bar Handle from the Flame
Broiler Adjusting Bar. Insert the Flame Broiler Adjusting Bar through
the opening hole on the left side of the Main Barrel. Add the Flame
Broiler Adjusting Bar Handle back onto the end outside the barrel.
Next, slide the notched end of the adjusting bar into the locking tab
on the Flame Broiler Slider, giving you adjustable access to the Flame
Broiler Slider on the main plate. Note steps in 8C.
NOTE: When the Flame Broiler Slider is open and direct flame is used,
do not leave the grill unattended for any period of time.
7
8
9
8
8A
8B
8C
A
B
7
6
7
18
19
