PARTS & SPECS
Part#
Description
1
Power Cord Bracket (x1)
2
Probe Wire Casing (x1)
3
Porcelain-Coated Steel Cooking Grids (x2)
4
Porcelain-Coated Steel Upper Cooking Rack (x1)
5
Lid Stopper (x1)
6
Flame Broiler Slider (x1)
7
Flame Broiler Main Plate (x1)
8
Lid Handle Bezel (x2)
9
Lid Handle (x1)
10
Hopper Assembly (x1)
11
Plate Screw (x1)
12
Drop Chute Plate (x1)
13
Main Barrel (x1)
14
Left Support Leg - Front (x1)
15
Left Support Leg - Back (x1)
16
Right Support Leg - Front (x1)
17
Right Support Leg - Back (x1)
18
Flame Broiler Adjusting Bar Handle (x1)
19
Flame Broiler Adjusting Bar (x1)
20
Front Panel (x1)
21
Bottom Shelf (x1)
22
Grease Bucket (x1)
23
Wheel (x2)
A
Screw (x20)
B
Washer (x20)
C
Locking Washer (x20)
D
Wheel Cotter Pin (x2)
E
Wheel Washer (x2)
F
Wheel Axle Pin (x2)
G
Screw (x4)
NOTE: Due to ongoing product development, parts are subject to change without notice. Contact
Customer Care if parts are missing when assembling the unit.
PB – ELECTRIC REQUIREMENTS
110-120 V, 60 Hz, 250 W, 3-PRONG GROUNDED PLUG

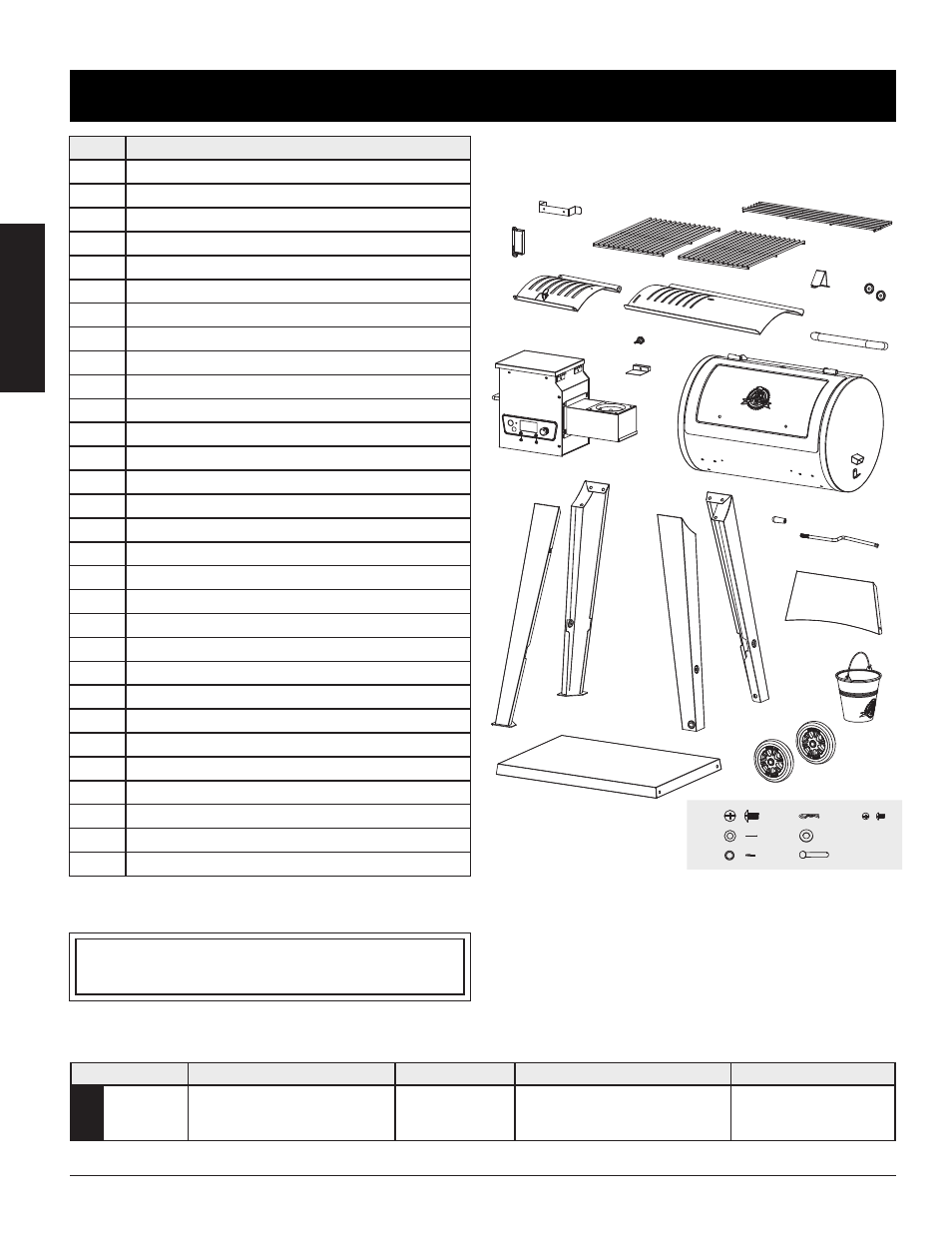

4
5
1
2
3
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
A
D
G
B
E
C
F
MODEL
ASSEMBLED (WxDxH)
WEIGHT
COOKING AREA
TEMPERATURE RANGE
PB
PB440FB1
1,020 MM X 616 MM X 1,148 MM
/ 40.1 IN. X 24.2 IN. X 45.2 IN.
40.5 KG
/ 89.3 LB
MAIN - 2,404 CM² / 372.5 IN²
UPPER - 711 CM² / 110.3 IN²
TOTAL - 3,115 CM² / 482.8 IN²
82-260°C
/ 180-500°F
