INSTALLATION
3
HPR130 gaz manuel
Mode d’emploi
3-25

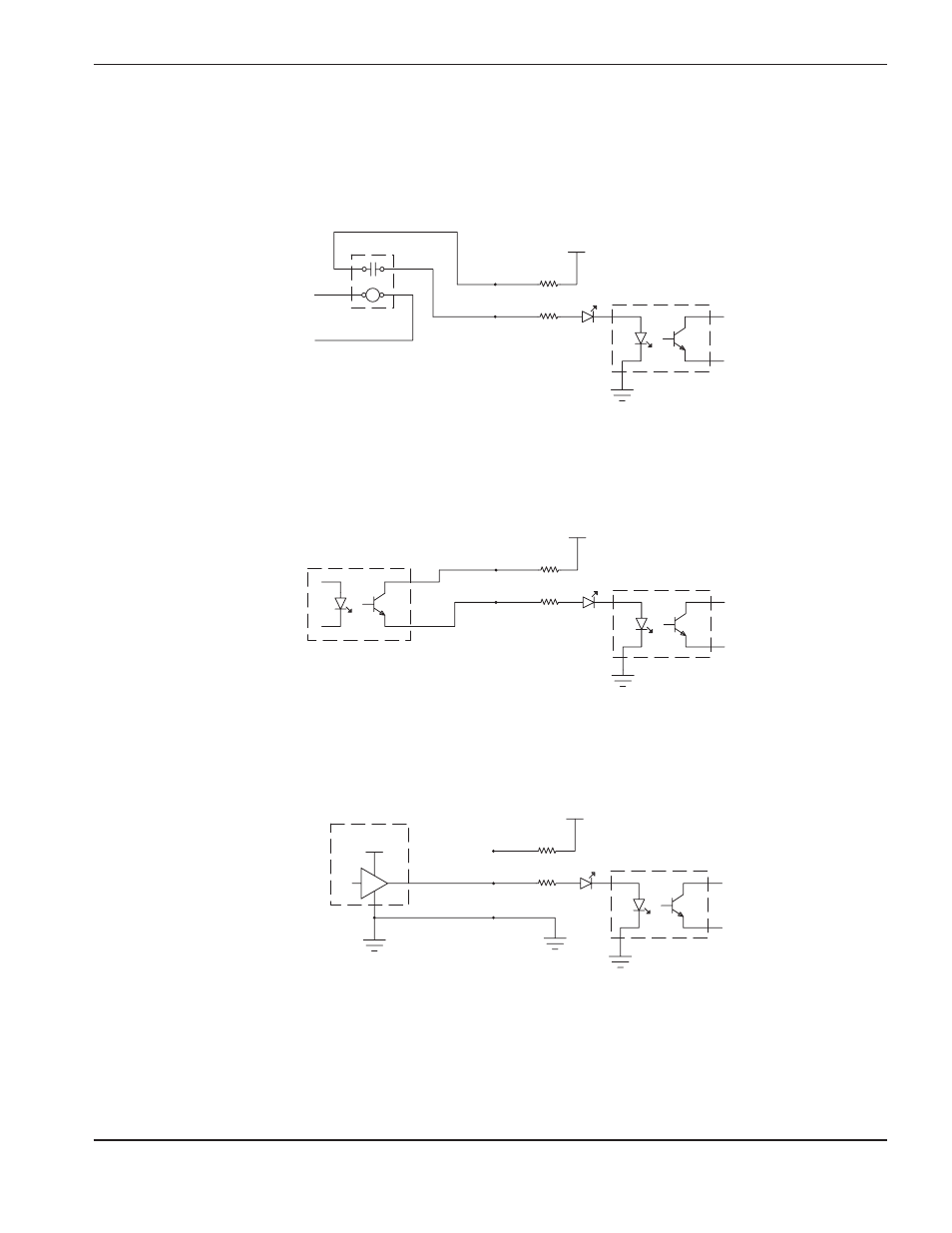

Exemples de circuits d’entrée
Sortie de
CNC/PLC
Relais extérieur
(c.a. ou c.c.)
1. Interface relais
+24 V c.c.
HPR
Terre
2. Interface optocoupleur
CNC/PLC
+24 Vc.c.
HPR
Terre
Optocoupleur
sortie transistor
12V-24 Vc.c.
CNC/PLC
+24 V c.c.
HPR
Terre
Terre
Entraînement actif
plus grand que zéro
3. Interface de sortie amplifiée
