7
EN

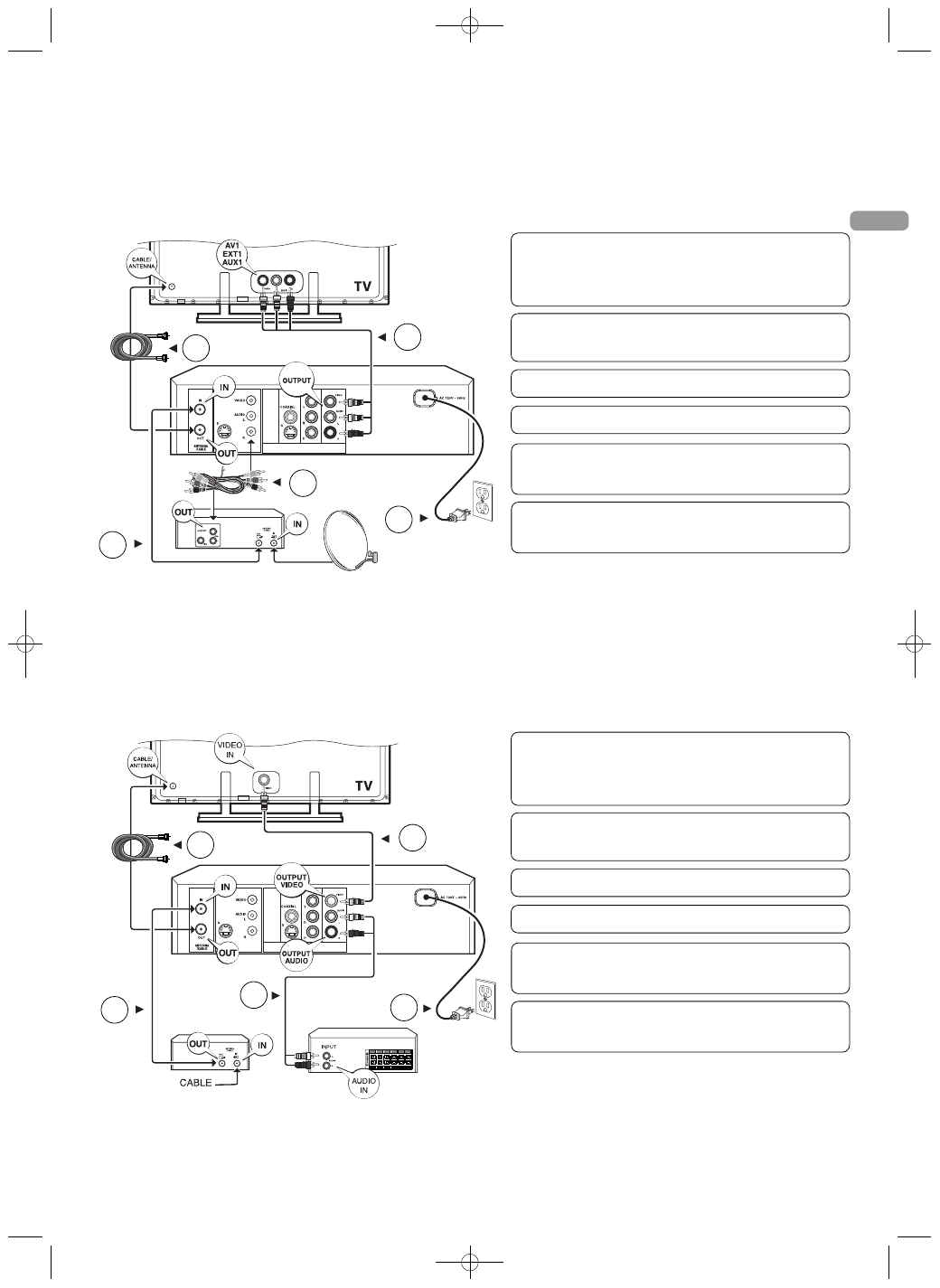

Connections
Option C: DVD/VCR + TV + satellite receiver
For your unit to work properly, you must follow the instructions below.
Option D: DVD/VCR + TV + basic cable box + audio receiver
For your unit to work properly, you must follow the instructions below.
,1387 287387
&E
&U
DVD/VCR
,1387
,1387 287387
&E
&U
DVD/VCR
,1387
Audio Video cables
(not included)
Satellite
receiver
Cable box
Audio receiver
Audio
cables (red
and white)
Note: graphics are for representation only and may differ from your actual units.
RF coaxial cable
Power
cable
Audio
Video
cables
1
Video
cable
1
Antenna
cable
2
Antenna
cable
2
3
RF coaxial cable
3
AC120V
60Hz
5
Power cable
AC120V
60Hz
5
4
4
5 Connect the unit’s AC power cable to a suitable
wall outlet.
6 Your unit is ready for use after the connections.
Please read page 12 to start using the unit.
1 Connect the included Audio/Video cables as shown.
If your TV does not have AV inputs, you will need to buy an RF
modulator (not provided). Please refer to page 8 of the user
manual for more information.
2 Connect your existing antenna cable (from
satellite receiver) to “ANTENNA IN”.
3 Connect the provided RF coaxial cable as shown.
4 Connect the audio cables as shown.
5 Connect the unit’s AC power cable to a suitable
wall outlet.
6 Your unit is ready for use after the connections.
Please read page 12 to start using the unit.
1 Connect the included Video cable as shown.
If your TV does not have AV inputs, you will need to buy an RF
modulator (not provided). Please refer to page 8 of the user
manual for more information.
2 Connect your existing antenna cable (from cable
box) to “ANTENNA IN”.
3 Connect the provided RF coaxial cable as shown.
4 Connect the included audio cables as shown.
