Connections

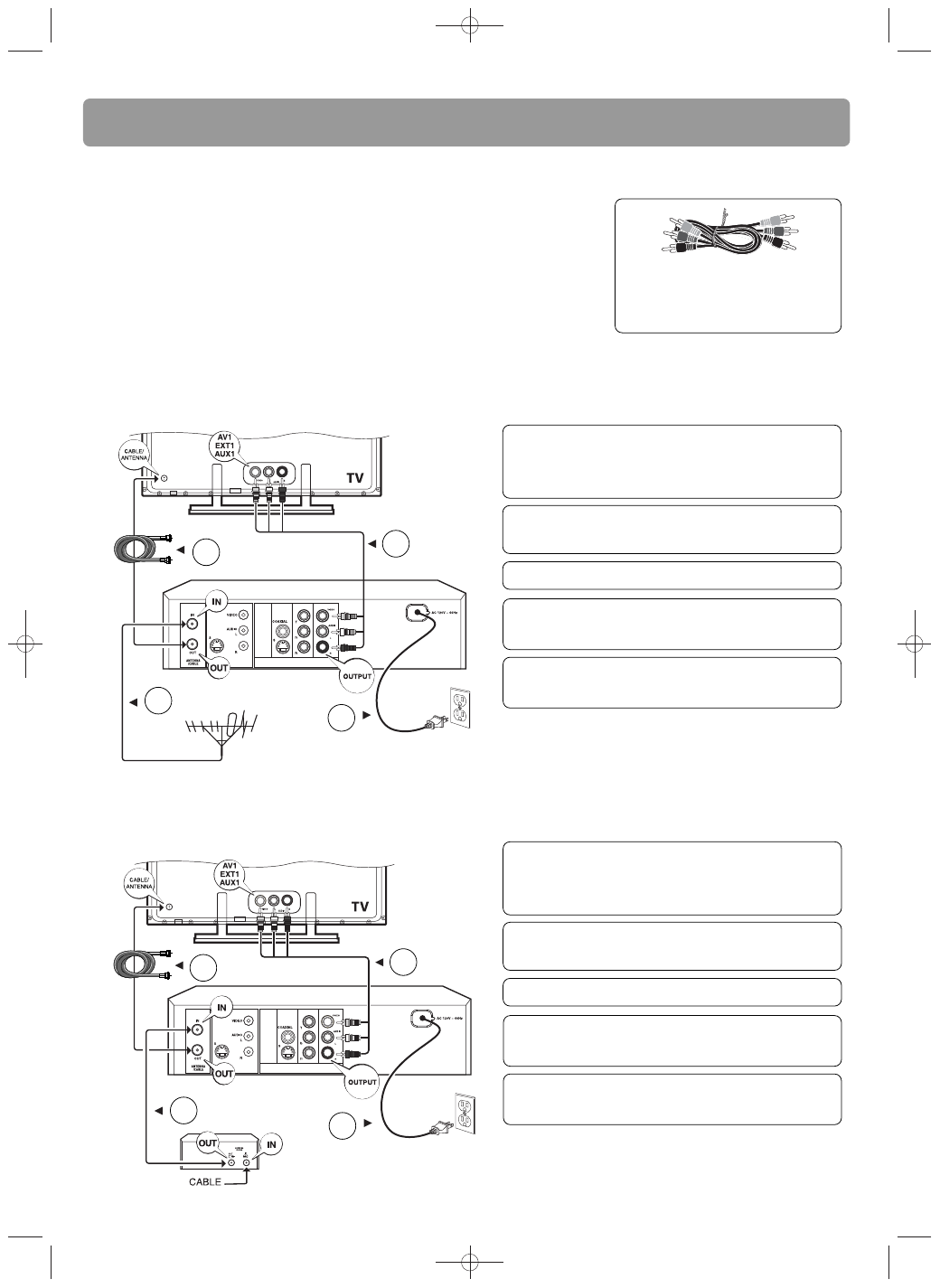

Option A: DVD/VCR + TV
For your unit to work properly, you must follow the instructions below.
Option B: DVD/VCR + TV + basic cable box
For your unit to work properly, you must follow the instructions below.
Cable box
Connecting your unit
The RF coaxial cable supplied with this unit is only for passing the antenna signal to
the TV.
1. To use your new DVD/VCR player and recorder, you MUST connect the unit to the
TV with the supplied audio video cables (color-coded red, white and yellow) in
addition to the antenna cable.
2. Turn on the TV and tune it to the correct Video Input Channel (if you do not know
how to access the video input channel on your TV, refer to “Initial Setup” on page
12 for help). For more details about connecting to different types of equipment
and connection possibilities (options A-E), refer to page 6-8.
These are the audio/video cables.
The yellow cable carries the video
signal, and the red and white
cables carry the audio signal.
,1387 287387
&E
&U
DVD/VCR
,1387
AC120V
60Hz
RF coaxial cable
Antenna cable
Power cable
Audio
Video
cables
2
Antenna cable 2
3
1
Audio
Video
cables
1
4
Power cable
4
AC120V
60Hz
RF coaxial cable
3
4 Connect the unit’s AC power cable to a suitable
wall outlet.
5 Your unit is ready for use after the connections.
Please read page 12 to start using the unit.
1 Connect the included Audio/Video cables as shown.
If your TV does not have AV inputs, you will need to buy an RF
modulator (not provided). Please refer to page 8 of the user
manual for more information.
2 Connect your existing antenna cable (from
antenna) to “ANTENNA IN”.
3 Connect the provided RF coaxial cable as shown.
4 Connect the unit’s AC power cable to a suitable
wall outlet.
5 Your unit is ready for use after the connections.
Please read page 12 to start using the unit.
1 Connect the included Audio/Video cables as shown.
If your TV does not have AV inputs, you will need to buy an RF
modulator (not provided). Please refer to page 8 of the user
manual for more information.
2 Connect your existing antenna cable (from cable
box) to “ANTENNA IN”.
3 Connect the provided RF coaxial cable as shown.
