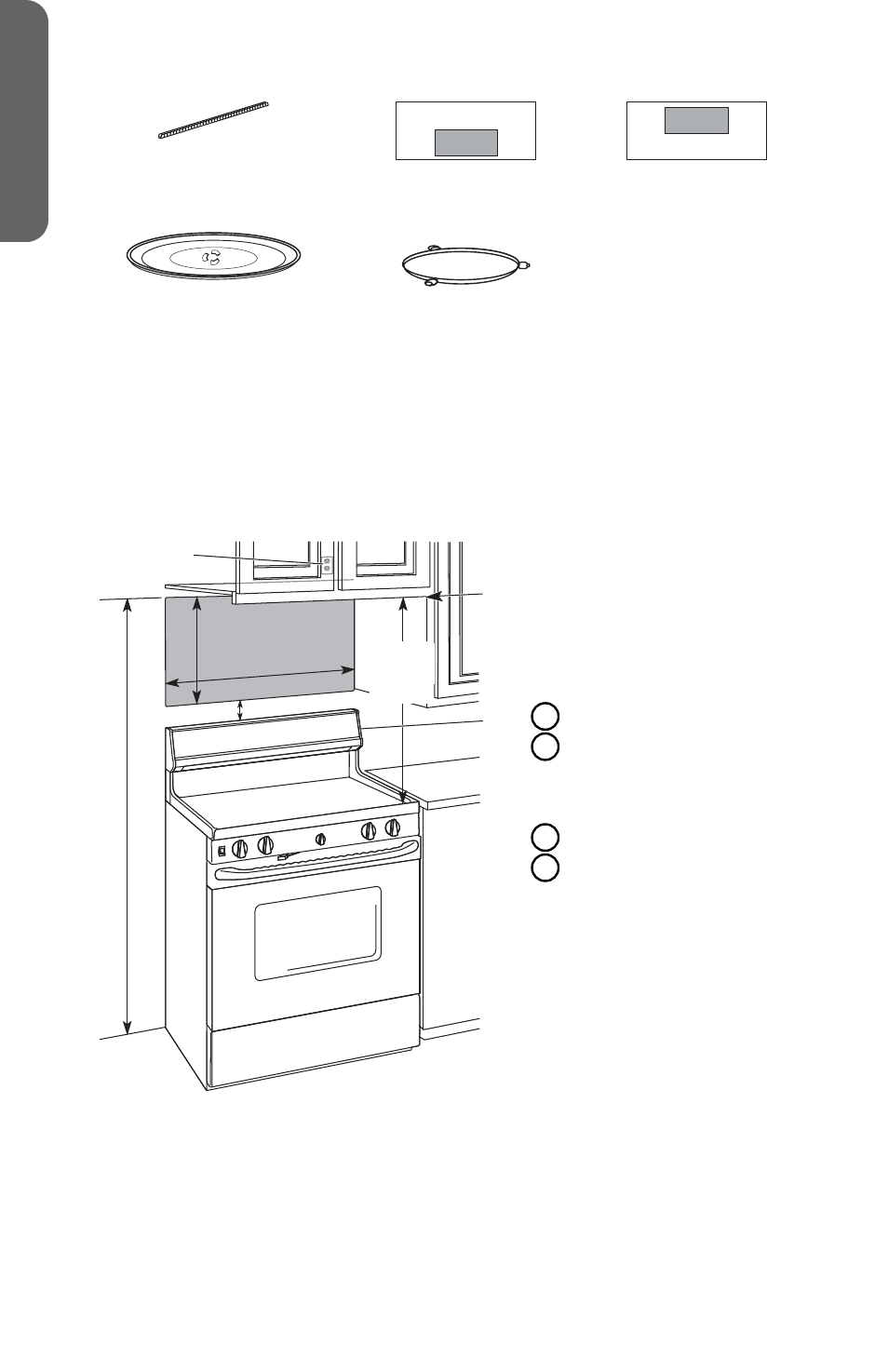

TOP CABINET TEMPLATE
REAR WALL TEMPLATE
Nylon Grommet (for metal
cabinets)
Top Cabinet Template Rear Wall Template
Glass Tray Turntable Ring
PARTS NEEDED
•
M6-1.00 Self-aligning Machine Screw (2) - of the length needed to go through
the cabinet bottom, filler block (if needed for recessed bottom cabinets), and
into the top of the microwave.
LOCATION REQUIREMENTS
24" (61.0 cm)
30"
(76.2 cm)
min.
16½" (42 cm)
c
b
d
a
2 " (5.1 cm)
A
Grounded 3 Prong Outlet
B Bottom edge of cabinet
needs to be 30" (76.2 cm)
or more from the cooking
surface.
C
Backsplash
D 66" (167.6 cm) or more
from the floor to the top
of the microwave
• The space between the cabinets on each side of the range must be at least 24"
(61 cm) wide and free of obstructions.
• Grounded electrical outlet inside overhead cabinet. See “Electrical
Requirements” section.
• If you are going to vent the microwave oven to the outside, see “Install
Microwave Oven” for exhaust and duct preparation.
•
When installing the microwave oven beneath smooth, flat cabinets, follow the
instructions on the Top Cabinet template for power cord clearance.
