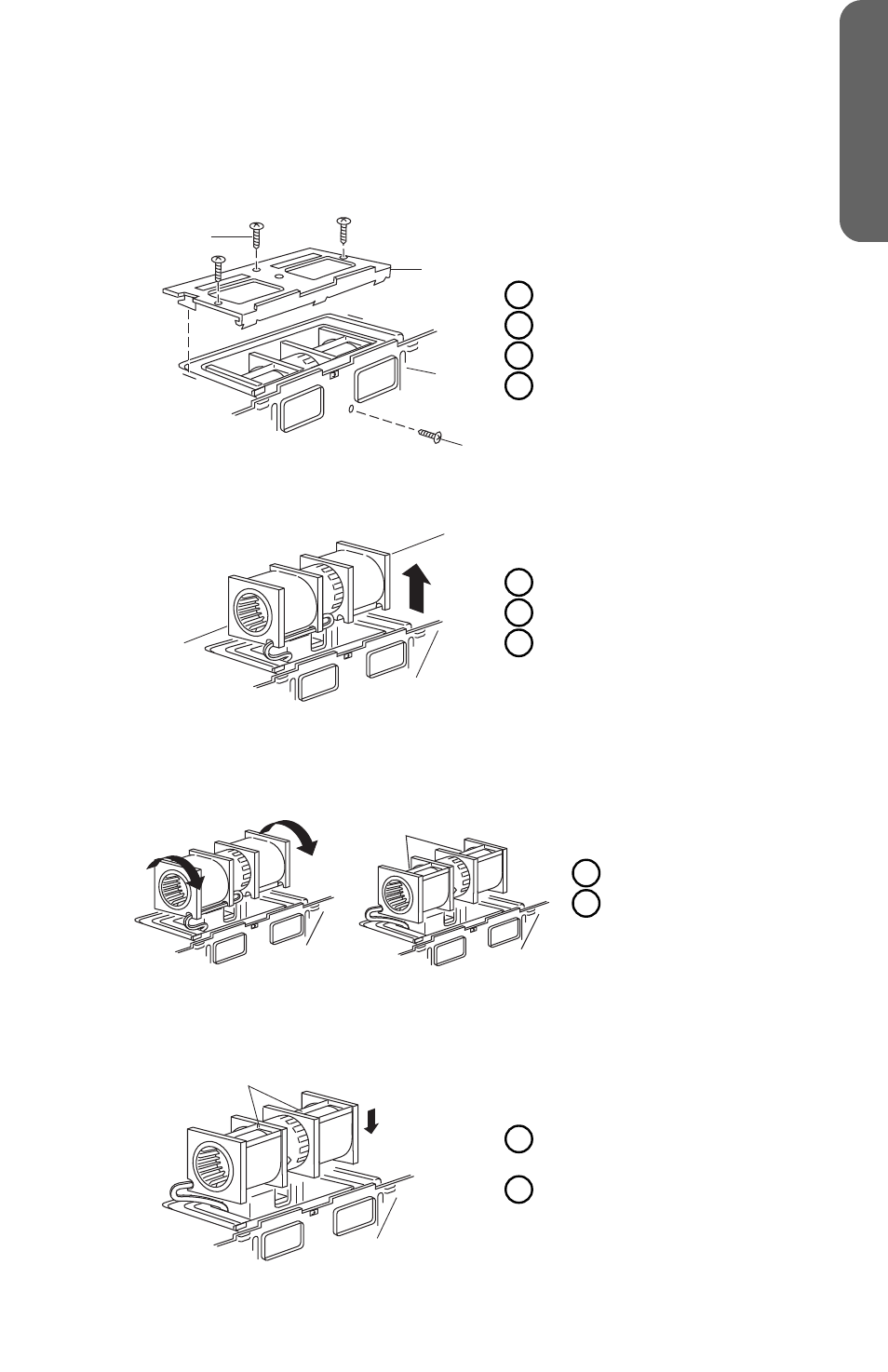

ADAPT BLOWER FOR OUTSIDE TOP EXHAUST
1. Place the microwave in an upright position.
2. Remove and save the three screws fastening the exhaust plate to the
microwave.
3. Remove and save the screw fastening the blower motor to the microwave.
b
d
c
a
A Exhaust Plate Screw (3)
B
Exhaust Plate
C Back of Microwave
D
Blower Motor Screw
4. Carefully pull out the blower unit. The wires will extend far enough to allow you
to adjust the blower unit.
b
a
c
A
End A
B End B
C
Back of Microwave
5. Roll the blower unit 90° so that fan blade openings are facing out the top of the
microwave.
Before Rotation After Rotation
a
a
b
A Back of Microwave
B
Fan Blade Openings
6. Place the blower unit back into the microwave.
7. Using the blower motor screw removed earlier, secure blower unit to
microwave. Completely tighten the screw.
a
b
A
AFTER: Fan Blade Openings
Facing Top
B Back of Microwave
8. Using the three blower plate screws removed earlier, reinstall the blower plate.
Completely tighten the screws.
