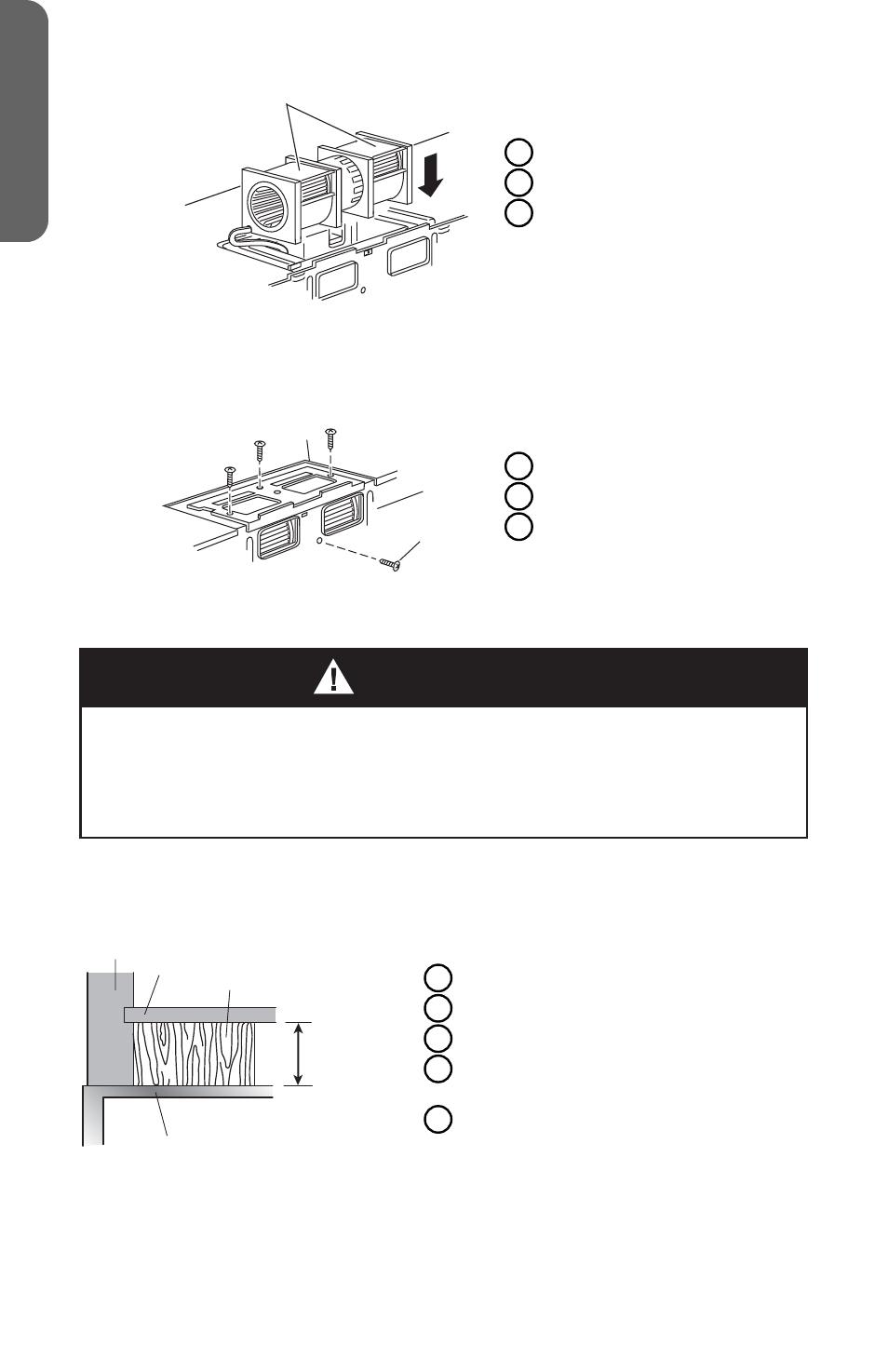

a
b
c
A
End A
B End B
C After: Fan Blade Openings
Facing Back
9. Using the blower motor screw removed earlier, secure blower unit to
microwave. Completely tighten the screw.
10. Using the three blower plate screws removed earlier, reinstall the blower plate.
Completely tighten the screws.
a
c
b
A
Exhaust Plate
B Back of Microwave
C Blower Motor Screw
MOUNT THE MICROWAVE OVEN
WARNING
Excessive Weight Hazard
Use two or more people to move and install microwave oven.
Failure to do so can result in back or other injury.
NOTE: If the cabinet front hangs below the bottom cabinet shelf it is
recommended that you use filler blocks to avoid damaging the case by over
tightening the screws.
a
b
c
e
d
A Cabinet Front
B Cabinet Bottom
C Filler Block
D Equivalent to Depth of
Cabinet Recess
E
Microwave Oven Top
1. Thread the power cord through the hole in the bottom of the overhead cabinet.
Keep the power cord tight while mounting the oven.
NOTE: If the overhead cabinet is metal, use the nylon grommet around
the power cord hole to avoid cutting the power cord.
2. Using two or more people, lift the microwave, tilt it forward, and hook slots at
back bottom edge onto four lower tabs of mounting plate.
