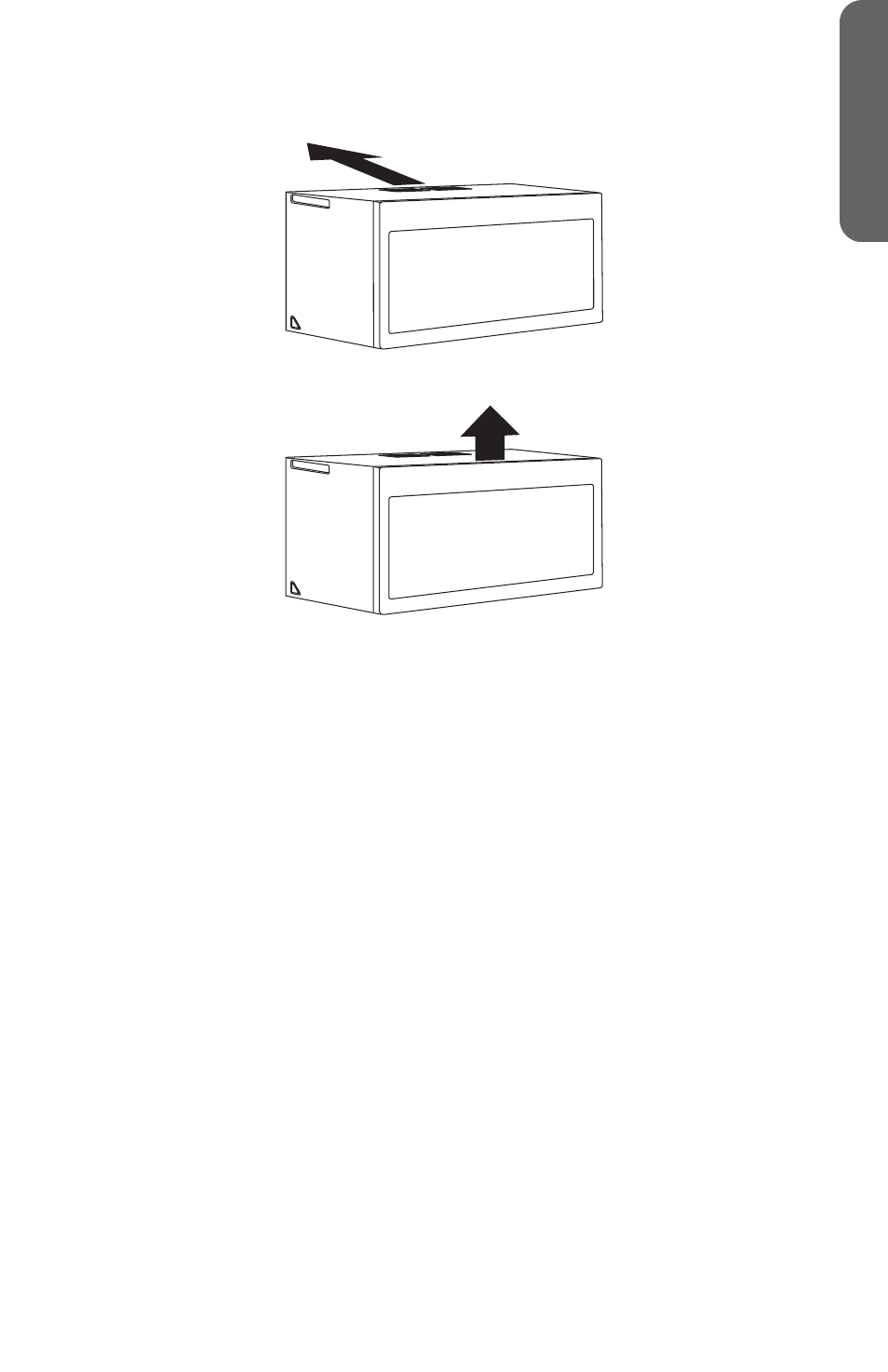

Method B - Outside Back Exhaust (Horizontal Duct)
Method C - Recirculating (Non-Vented, Ductless)
STEP 6 - INSTALL MICROWAVE OVEN
Install the microwave oven following the instructions specific to your method of
ventilation: Method A - Outside Top Exhaust, Method B - Outside Back Exhaust,
Method C - Non-Vented (Recirculating)
METHOD A - OUTSIDE TOP EXHAUST
IMPORTANT:
•
Make sure the screws for the blower motor and blower plate are securely
tightened when they are reinstalled. This will help avoid excessive vibration.
•
Make sure the motor wiring has been properly routed and secured, and that
the wires are not pinched.
INSTALL MOUNTING PLATE
NOTE:
At least one wood screw must be used to attach the plate to a wall stud.
1. Remove the toggle wings from the bolts.
2. Insert the bolts into the mounting plate through the holes designated to go into
drywall and reattach the toggle wings onto each bolt.
