A Surface Lights
B
Door
C Grease Filters

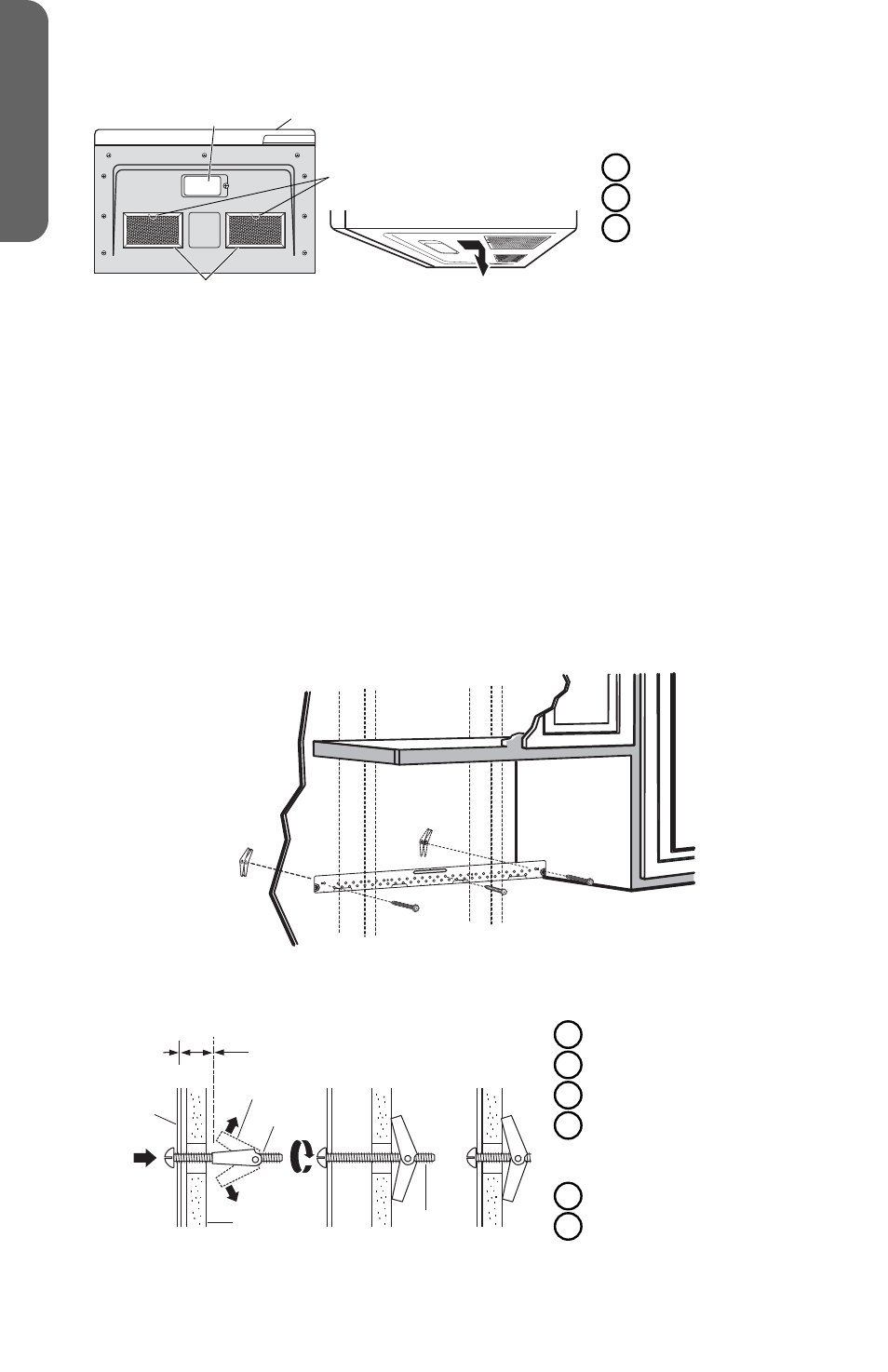

METHOD C - RECIRCULATING (NON-VENTED, DUCTLESS)
IMPORTANT:
• Make sure the screws for the blower motor and blower plate are securely
tightened when they are reinstalled. This will help avoid excessive vibration.
• Make sure the motor wiring has been properly routed and secured, and that
the wires are not pinched.
INSTALL MOUNTING PLATE
NOTE:
At least one wood screw must be used to attach the plate to a wall stud.
1. Remove the toggle wings from the bolts.
2. Insert the bolts into the mounting plate through the holes designated to go into
drywall and reattach the toggle wings onto each bolt.
3. Place the mounting plate against the wall and insert the toggle wings into the
holes in the wall to mount the plate.
b
a
d
c
f
e
A
Mounting Plate
B Wall
C
Bolt End
D Spacing for Toggles
More Than Wall
Thickness
E Toggle Wings
F
Toggle Bolt
4. Press the mounting plate flush against the wall. Make sure the mounting plate
touches the bottom of the horizontal line and that the plate is centered under
the cabinet.
