Multi-Contact MA213-01 - Manuel (Page 8)

Advanced Contact Technology
8 / 12 www.multi-contact.com
A = CT-E1-26
B = CT-E3-3
C = CT-E1-6
D = CT-E1-15
E = CT-E1,5-5
F = CT-E0,6-20

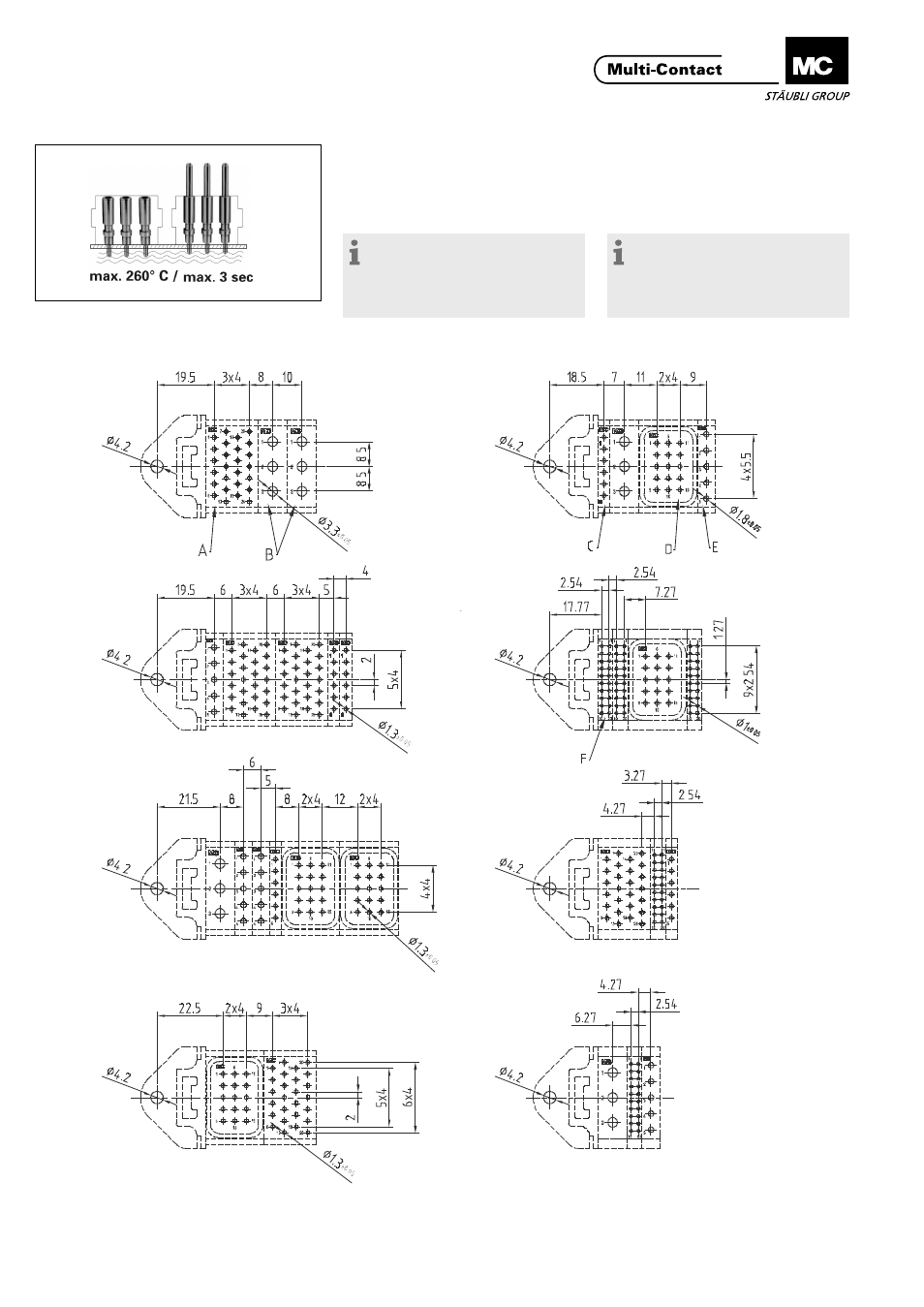

Plans de perçage des con-
tacts PCB Drilling plans PCB contacts
Les faces de connexion mâle et
femelle sont identiques
Male and female connecting face
are identical
Notes:
Tempér. max. de soudure: 260 °C.
Temps max. de soudure: 3 sec.
Le matériau du support de contacts
résiste au trichloréthylène.
Hinweis:
Max. soldering temp.: 260 °C
Max. soldering time: 3 seconds.
Material of contact carrier, is resistant
to the cleaning fluid trichloroethylene.
Vue: face de connexion Connecting face view
Entraxes de perçage, tolérance: ±0,1
Distance between holes, tolerance: ±0,1
