Preparation

C

AM antenna connector

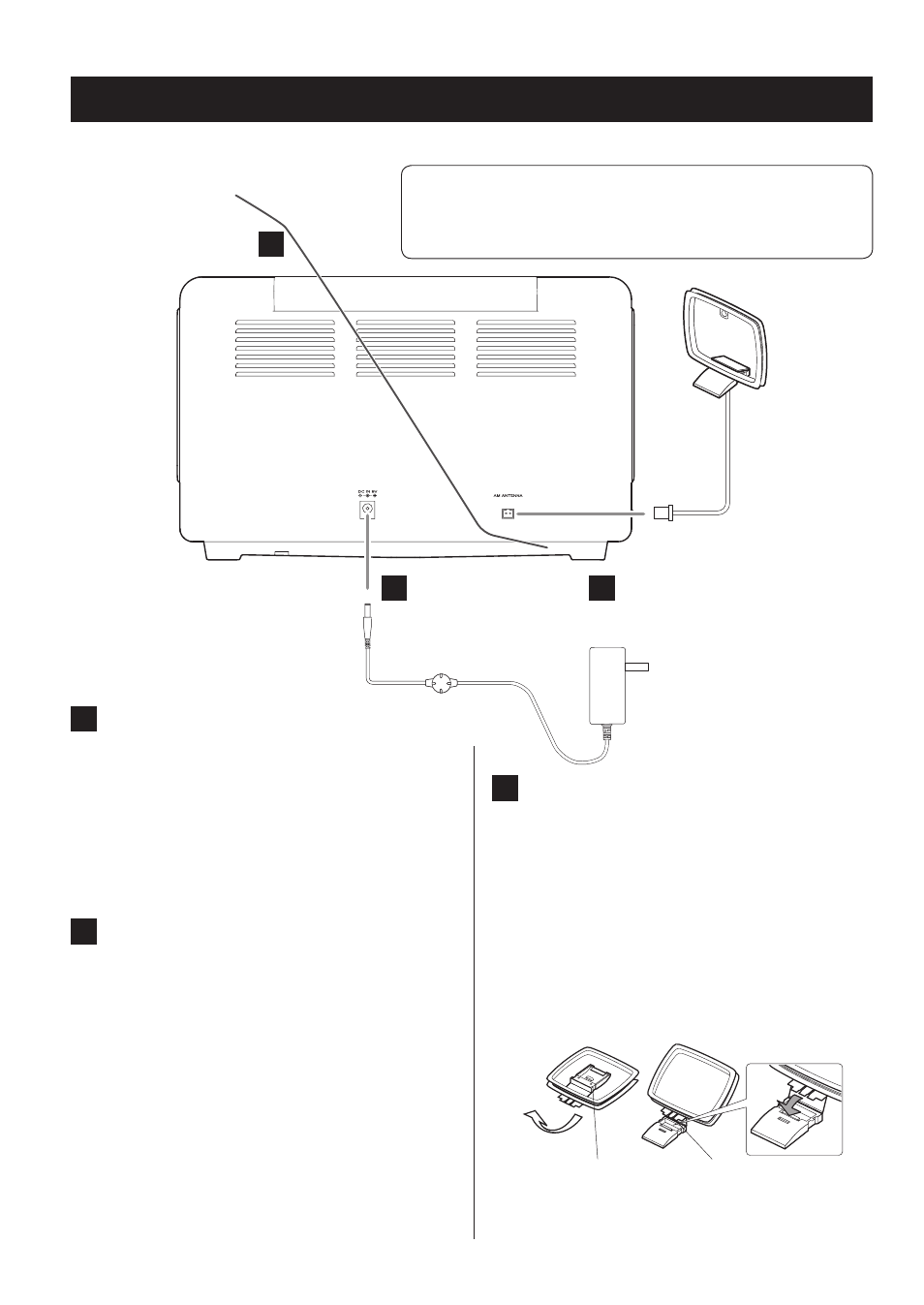

Assemble the included AM loop antenna and connect
it to the AM antenna connector on the back of the
unit.
Place the antenna in the position that provides the
best AM reception.

Assembling the AM antenna

To assemble the AM antenna, turn the base in the direction
of the arrow. Then, insert the hook at the bottom of the
loop into the slot in the base.

Antenna base

Hook

1

2

A

FM antenna

After finding a position where FM broadcasts can be
received and the reception is good, attach it to the
wall or ceiling using tacks or tape, for example.

o

See page 27 for instructions about how to receive
radio signals.

o

Do not bundle the antenna with other wires
because doing so will reduce its sensitivity.

B

DC input connector (DC IN 9V)

After completing all the connections, connect the
included AC adapter (PS-M0926) to this jack.
Next, plug the AC adapter into a power outlet.
Unplug the power adapter from the outlet when
you are not planning to use the unit for an extended
period of time.
Do not use any AC adapter other than the one
included (PS-M0926).

AM antenna

Included PS-M0926
AC adapter

A

B

C

V

Precautions when making connections

o

Do not plug the unit in until all connections have been completed.

o

Carefully read the manuals of the devices that you are connecting
and follow their instructions when making connections.
