STUDIO SCAN XTD825 / 625™

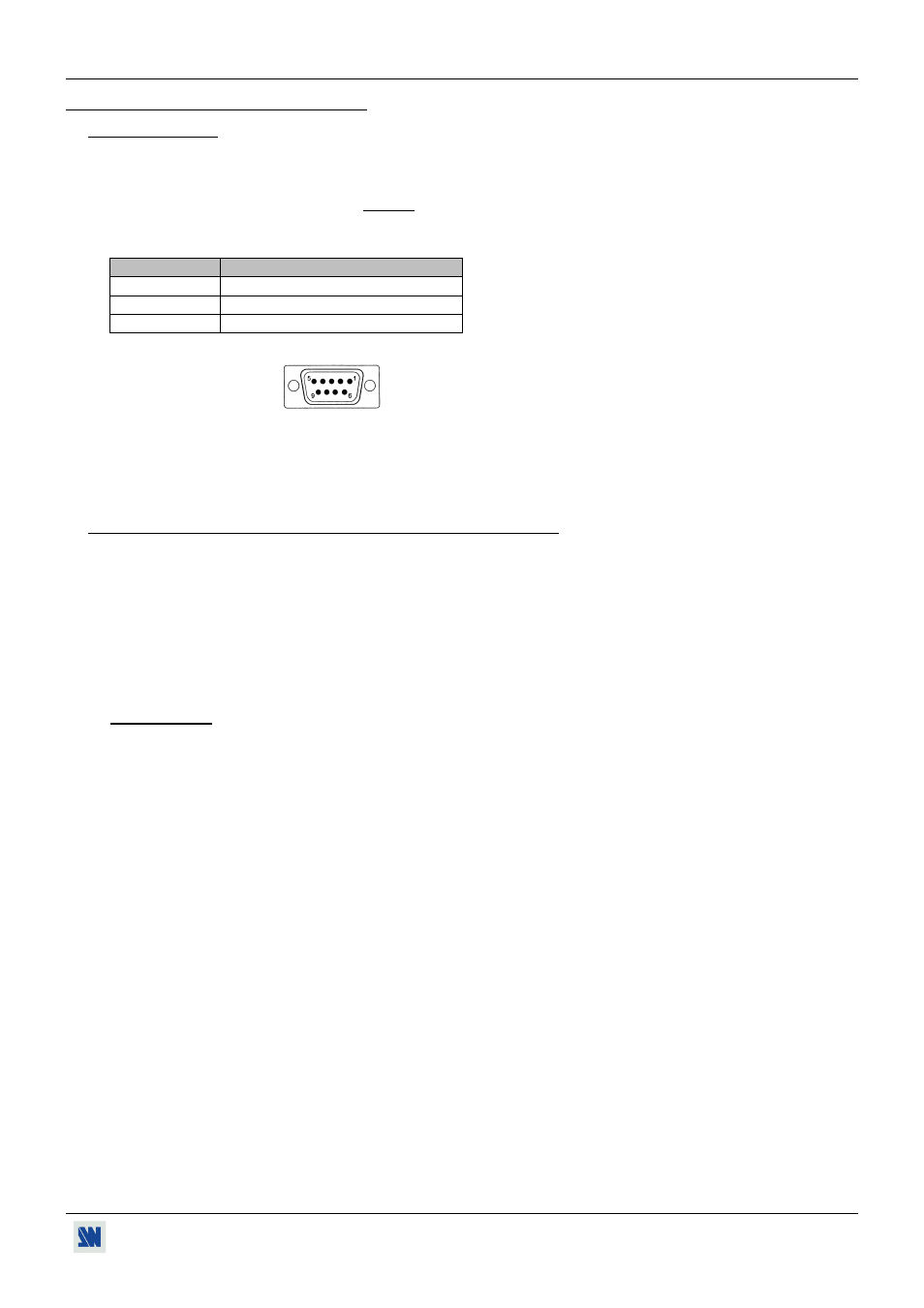

PAGE 17
Chapter 9 : CONTROL SOFTWARE
9-1. CONNECTION
• CONNECTING THE RS-232:
Connect the serial port of your control device to the REMOTE CONTROL (RS-232) connector (DB 9 Female) of the
STUDIO SCAN XTD825 / 625
™ with a straight cable (DB 9 Female / DB 9 Male).
• PIN-OUT:
PIN # FUNCTIONS
2 TRANSMIT DATA (Tx)
3 RECEIVE DATA (Rx)
5 GROUND (Gnd)
DB 9 female
(Rear panel of the STUDIO SCAN XTD825 / 625 ™ )
• SPEED TRANSMISSION: 9600 bauds, 8 data bits, 1 stop bit, no parity bit, no flow control.
9-2. "STUDIO SCAN XTD825 / 625 REMOTE CONTROL" SOFTWARE
Your device is shipped with a Windows compatible Remote Control Software. This software allows you to control and
make all adjustments by a simple mouse click.
• SOFTWARE INSTALLATION:
c Turn your computer ON and wait for Windows to completely start.
d Insert the CD-ROM into your drive: the ANALOG WAY home window will open automatically.
e Select the language of the CD-ROM menus, then click on "Install a Remote Control Software" and select the name
of your device.
IMPORTANT: If the Autorun is not enabled: From the Windows desktop, open My Computer and select the CD-
ROM drive. Select the Autorun folder, then select the autorun.exe file.
f Follow the Windows installation instructions.
• COMMUNICATION SETUP:
c Connect the RS-232 cables between the control device and the STUDIO SCAN XTD825 / 625
™ as indicated in
section 9-1.
d Then only power ON all of the devices.
e Click on the program files XTD825-625 in Start-program-ANALOGWAY-STUDIO SCAN to run the software.
f Click on Controls menu and select the Serial port.
The STUDIO SCAN XTD825 / 625
™ is now controllable by the computer.
