The device you have just purchased was submitted to many tests and checks ensuring its quality.
We thank you for your choice and trust.We hope you will be fully satisfied.
A few recommendations:
Read the instructions before installing the device.
Power the device off before intervening on it, and check the power supply voltage.
Store the instructions, even after installing the device.
Characteristics of the device: (shown on the machine’s information label)
Cat C : Device complying with NF standard Electricity Performance
IP24 : Device protected against water projections.
Classe II : Dual insulation.
I
NSTALLING THE DEVICE

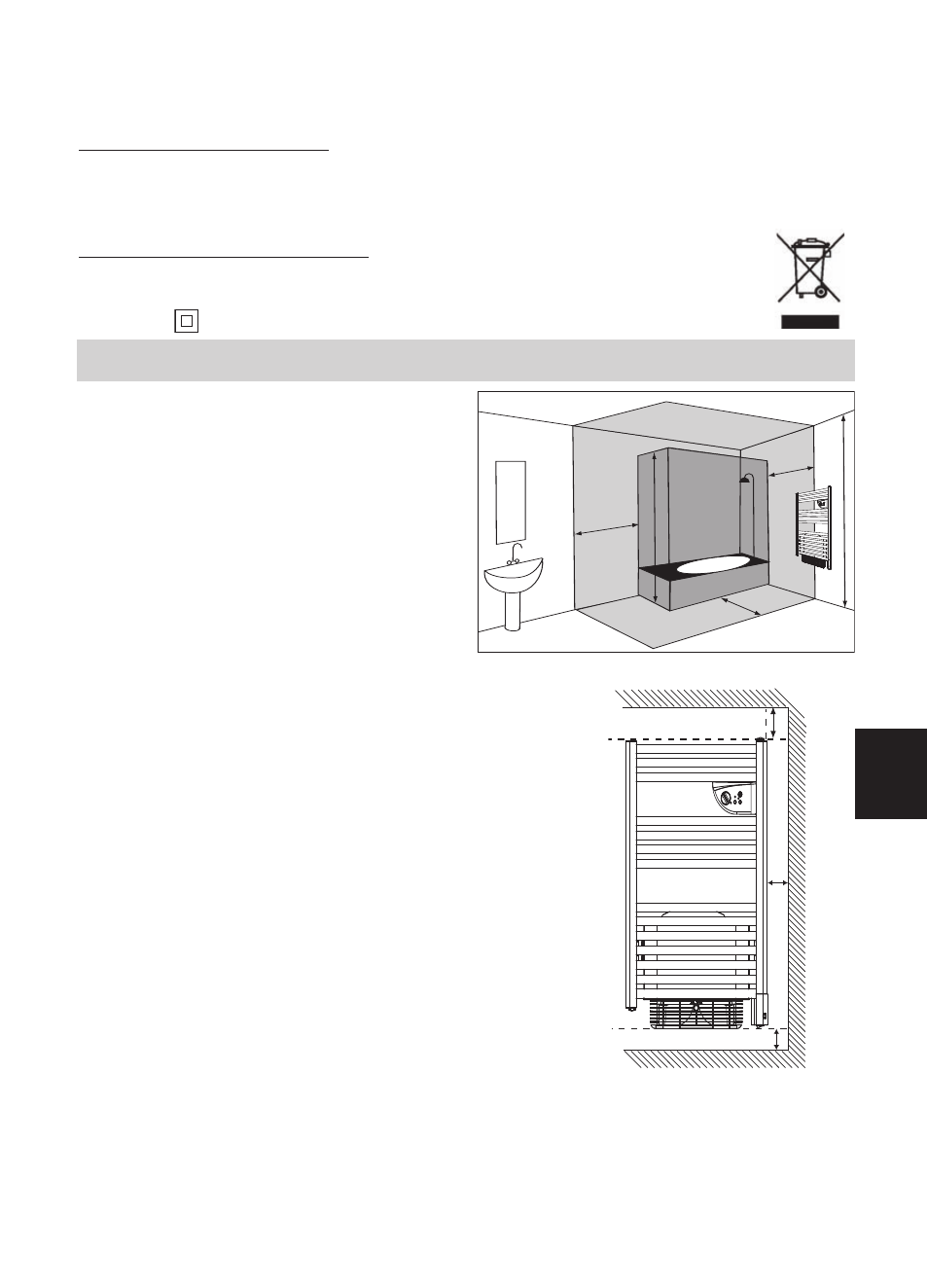

1) Location of the device
- This device was designed to be installed in resi-
dential premises. In any other case, please call
your distributor.
- Installation must comply with the standards cur-
rently enforced in the country of use.
- Locate the heater within minimum distances
from obstacles.
Do not install the device :
In a draft likely to affect its control
(under centralised mechanical ventila-
tion, etc…).
Under a fixed mains outlet.
Inside zones 0 and 1 in bathrooms.
The device is to be installed so that switches and other
controls cannot be touched by a person in the bath or sho-
wer, except in the UK where IEE Regulations 701.512.2 and
701.512.3 apply. These allow the use of IP24 rated products
and their integral controls in Zone 2 and ouside zones.
2) How to install the device
The installation template is printed on the packaging.
1/ Unfasten the carton’s flaps and place it against the wall with the
lower flap folded back and resting flat on he floor. Prick out the
four drill holes though the packaging (without drilling) and then
remove the packaging.
2/ Carefully mark the drilling points with a pencil (draw a cross, 2 cm
wide).
3/ Drill the holes.
4/ Screw on and orient the sleeve in place. Fit the screws with the
washers provided.
5/ Screw the pins on the on the tubes without locking them. Check they are correctly positioned by
inserting them in the sleeves, with the device.After finding the right position, tighten the screws on
each pin.
6/ Place the device on the wall, in the sleeves.Tighten all the locking screws. Fit the caps on the ends
of the pins.
150 mm mini
200 mm mini
150 mm mini
Volume
3
Volume
2
60 cm
60 cm
60 c
m
3
m
2
,2
5
m
Volume
1
