TRIPLIX™ (TRC8022)
PAGE 10
Chapter 5 : LCD SCREEN DESCRIPTION
5-1. INTRODUCTION
The LCD screen is composed of 2 modes: the STATUS MODE and the CONTROL MODE.
• The STATUS MODE indicates the input and the output status.
• The CONTROL MODE allows to select and adjust the parameters.
5-2. LCD CONTROL BUTTONS
The LCD screen is controlled by 3 buttons :
 CONTROL knob: To scroll thru the different menus.
EXIT MENU button: • From the STATUS MODE, press on this button to display the CONTROL MODE.
• From the CONTROL MODE, press on this button to:
- return to the previous menu,
- return to the STATUS MODE (press several times),
- return without safeguarding the item.
ENTER button : • From the STATUS MODE, press on this button to go to the next STATUS menu.
• From the CONTROL MODE, press on this button to confirm a selected item.
NOTE: When entering in the CONTROL MODE, the LCD window will automatically display the STATUS MODE
after 60 seconds of inactivity of the front panel buttons.

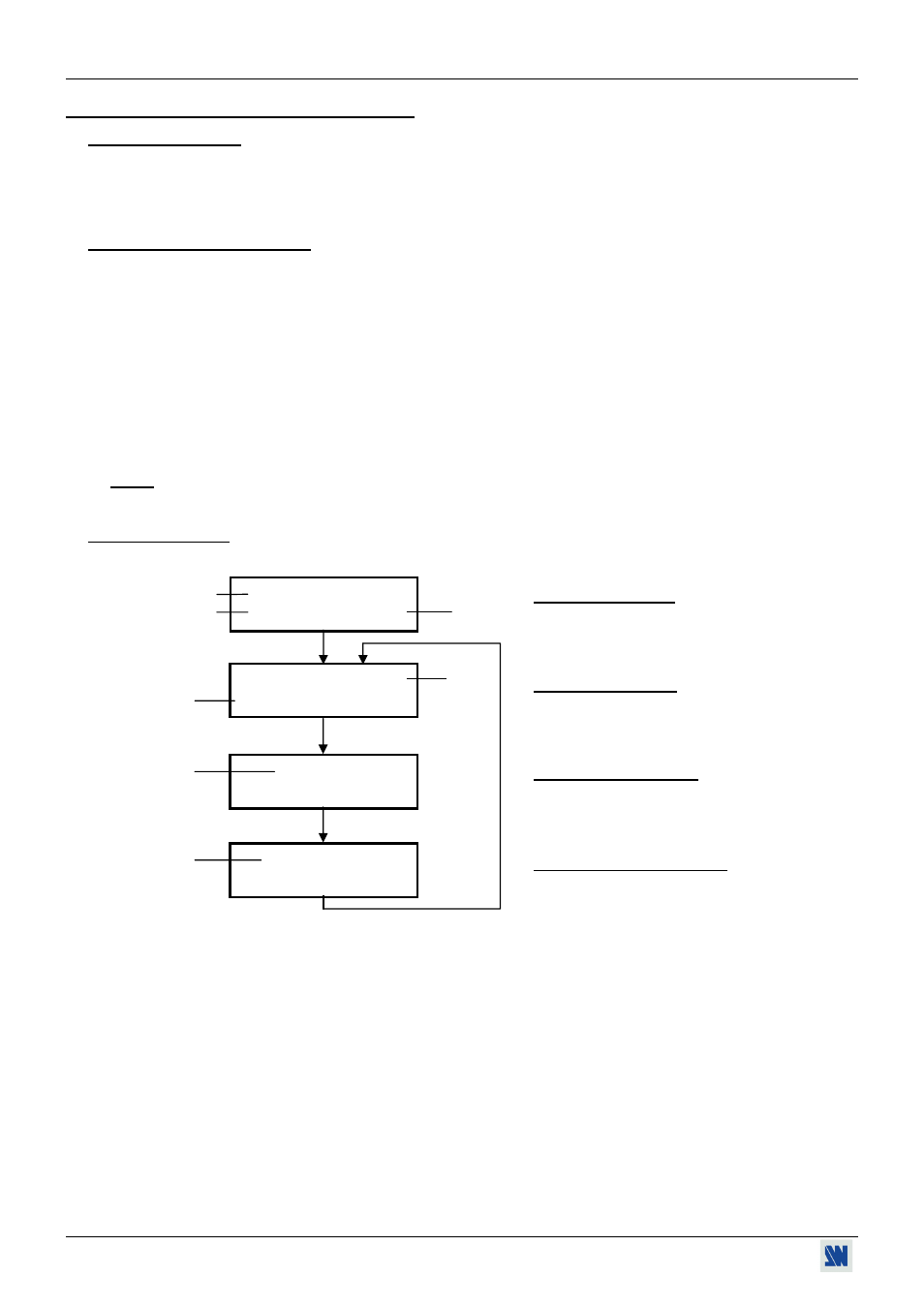

5-3. STATUS MODE
When switching ON the TRIPLIX
™ , the LCD screen shows the product's name and status as follows:
c DEVICE VERSION
d OUTPUT FORMAT
e OUTPUT RATE
f SELECTED INPUT
g PRE-SELECTED INPUT
g
f
e
PRODUCT NAME
PRODUCT MODEL
PREVIEW = 5
SXGA 64K / 60Hz
MAIN = 3
XGA 40.6K / 60Hz
OUTPUT XGA
internal rate
60Hz
TRIPLIX
TRC8022 V_._
DEVICE STATUS MENU
OUTPUT STATUS MENU
SELECTION STATUS MENU
PRE-SELECTION STATUS MENU
c
d
