Installation Instructions

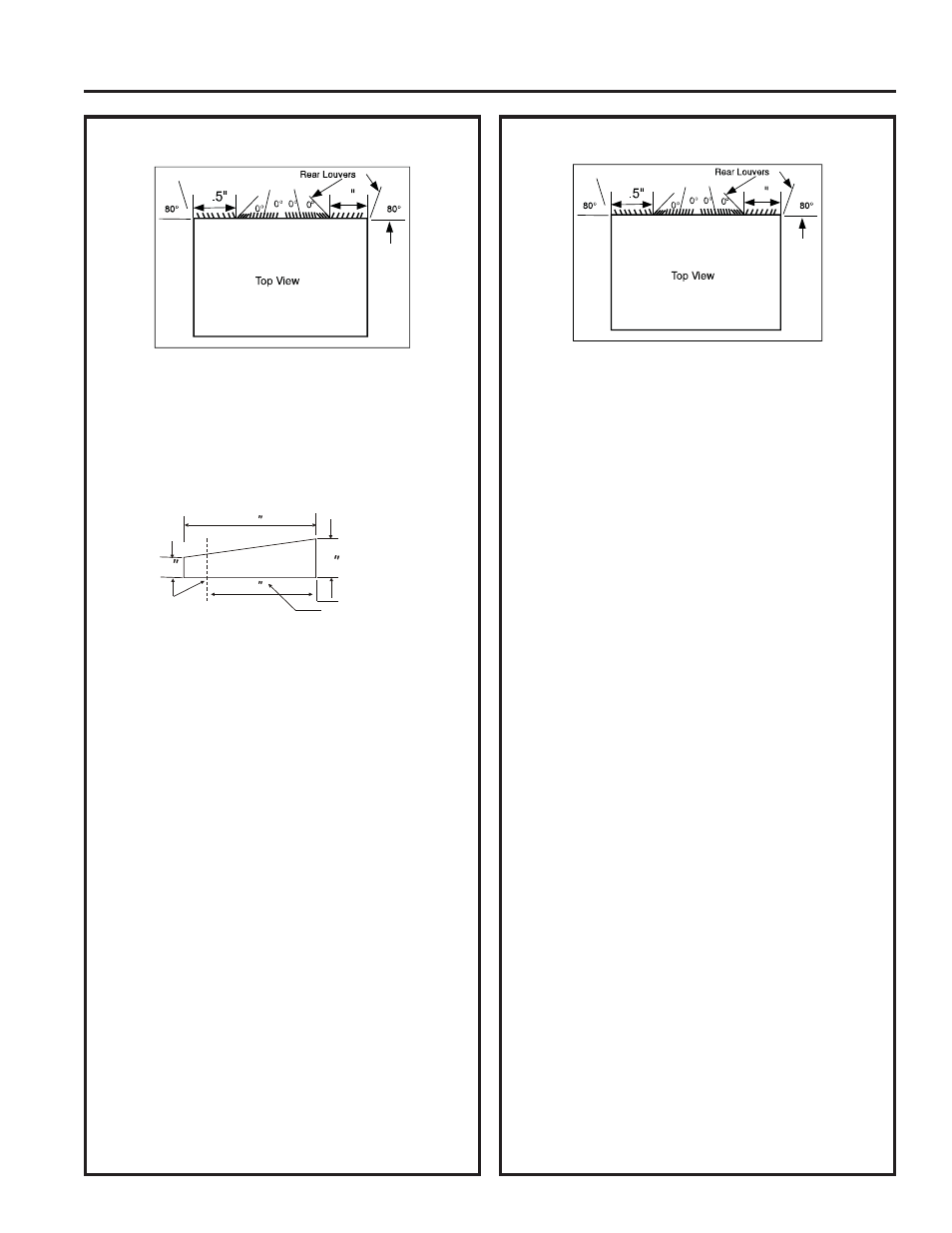

Whirlpool (17-1/8” Deep)
4 4
3
8 3 8
1. Remove existing rear grille as shown on page 9
of this manual and replace with provided louvered
rear panel.
NOTE: You may need to drill holes in flange of
existing sleeve to match new rear grille.
2. Cut (2) 17” tapered spacer blocks as shown below
into two pieces.
3. Install 13” section to the floor of the sleeve. This
helps induce a rearward slope on the unit.
4. $WWDFK´[´[´ORQJVHDOLQWKHFHQWHUDW
the top of the sleeve. Remove the backing paper
and press into position.
5. $WWDFK´[´[´VHDOVWRWKHOHIWDQGULJKW
sides of the sleeve.
6. &XW´[´[´VHDOVWR´ORQJDQGDWWDFK
them to the vertical sections of the rear grille.
7. Center unit and gently slide unit into sleeve.
8. Before sliding all-the-way back, remove the second
screw from front on left side of unit.
9. Remove the plastic washer from the screw.
10. Screw and attach the other end of the ground wire
to the unit. Make sure that the toothed washer is
against the cabinet.
11. Slide the unit completely to the rear to ensure a
good seal, making sure the ground wire does not
become tangled.
12. If you have difficulty with mounting the grill to the
sleeve, follow the instructions for direct mounting
on page 15.
13. Seal and frame the unit as described on page 16.
3 /
4
17
Tapered Spacer Block
1
Protection Paper
Backing
Cut Here
13
Whirlpool (23” Deep)
4 4
3
8 3 8
1. Remove existing rear grille as shown on page 9
of this manual and replace with provided louvered
rear panel.
NOTE: You may need to drill holes in flange of
existing sleeve to match new rear grille.
Because of the increased unit depth, first try dry
fitting using the method described below:
2. 3ODFH´[´[´VHDOVDJDLQVWHDFKVLGH
3. Gently slide unit in and check if amount extending
from the sleeve is sufficient once the trim frame is
attached.
4. If position is correct, remove unit and proceed to
the next step. If not, go to step 9.
5. $WWDFK´[´[´ORQJVHDOLQWKHFHQWHU
at the top of the sleeve. Remove the backing paper
and press into position.
6. $WWDFK´[´[´VHDOVWRWKHOHIWDQG
right sides of the sleeve.
7. &XW´[´[´VHDOVWR´ORQJDQGDWWDFK
them to the vertical sections of the grille.
8. Attach the tapered spacer blocks to the floor of the
sleeve. Now go to step 15.
Use these next steps if the unit requires extra
extension into the room:
9. $WWDFK´[´[´ORQJVHDORYHUWKHVROLG
vertical portion of the rear grille.
10. $WWDFK´[´[´IRDPEORFNV
with the slot overlapping the seal above.
11. Install the divider into the slots of the foam blocks.
You may need to trim the length to size.
12. Repeat steps 9-11 for the other vertical portion of
the grille.
13. $WWDFK´[´[´VHDOVDORQJWKHVLGHV
of the sleeve again making sure all seals are
flush.
14. &XWWKH´[´[´VHDOWRILWWKHWRSRIWKH
sleeve. The pieces must be fitted flush to the
edge of the divider.
