8

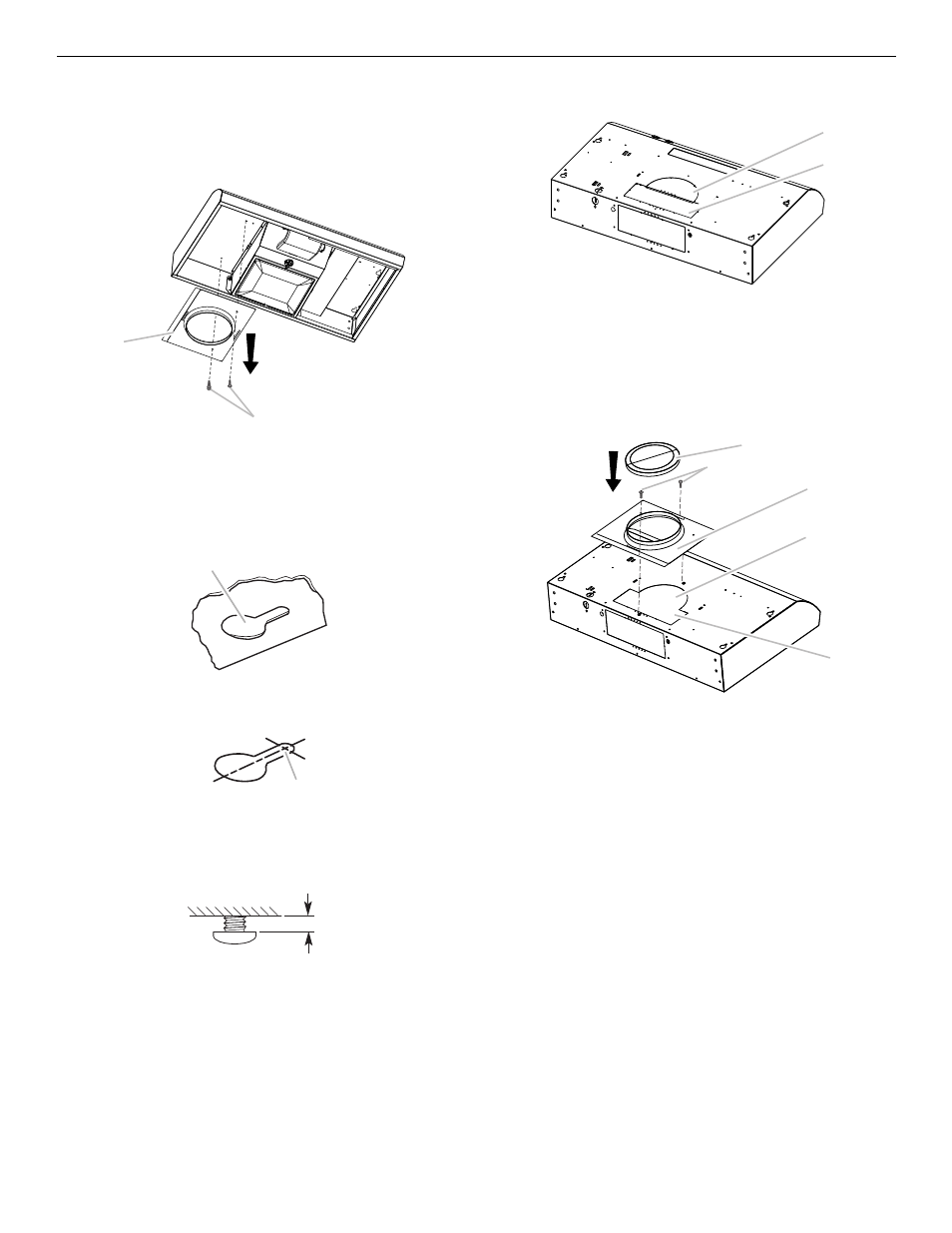

Install Range Hood
NOTE: Your model will have a 7" (17.8 cm) round vent mounting
plate on the inside of your range hood.
1. Remove the 7" (17.8 cm) round vent mounting plate attached
with 3.5 x 9.5 mm screws on the inside of your range hood.
Use these screws to install the round vent mounting plate.
2. Lift the range hood up under cabinet and determine final
location by centering beneath cabinet. Mark on the underside
of cabinet the location of the 4 keyhole mounting slots on the
range hood. Set range hood aside on a covered surface.
3. Use ¹⁄₈" (3 mm) drill bit and drill 4 pilot holes as shown.
4. Install the 4 - 4.5 mm x 13 mm mounting screws in pilot
holes. Leave about
¹⁄₄" (6.4 mm) space between screw heads
and cabinet to slide range hood into place.
5. Remove top rectangular and round vent knockouts.
6. Install 7" (17.8 cm) round vent mounting plate. Attach to
range hood with the 3.5 x 9.5 mm screws provided.
NOTE: An optional 7" (17.8 cm) round damper is available as
an accessory. For information on ordering, see the
“Accessories” section.
NOTE: The 7" (17.8 cm) round vent mounting plate can
be installed up to 1" (2.5 cm) on either side of the hood
center to accommodate off-center ductwork.
A. 7" (17.8 cm) round vent mounting plate
B. 3.5 x 9.5 mm screws
A. Keyhole slot
A. Drill pilot hole
A
B
A
A
¹⁄₄ "
(6.4 mm)
A. Round vent knockout
B. Top rectangular vent knockout
A. 7" (17.8 cm) Round damper (see “Accessories” section)
B. 3.5 x 9.5 mm screws
C. 7" (17.8 cm) round vent mounting plate
D. Round vent knockout
E. Rectangular vent knockout
A
B
A
B
C
D
E
