11
Replacing the Incandescent Light Bulb
Turn off the range hood and allow the light bulb to cool.
1. Disconnect power.
2. Squeeze the plastic lens cover and remove it from the hood.
3. Screw light bulb into socket.
4. Replace lens cover by squeezing cover and inserting tabs
into slots.
5. Reconnect power.
If new light does not operate, make sure the lamp is inserted
correctly before calling service.

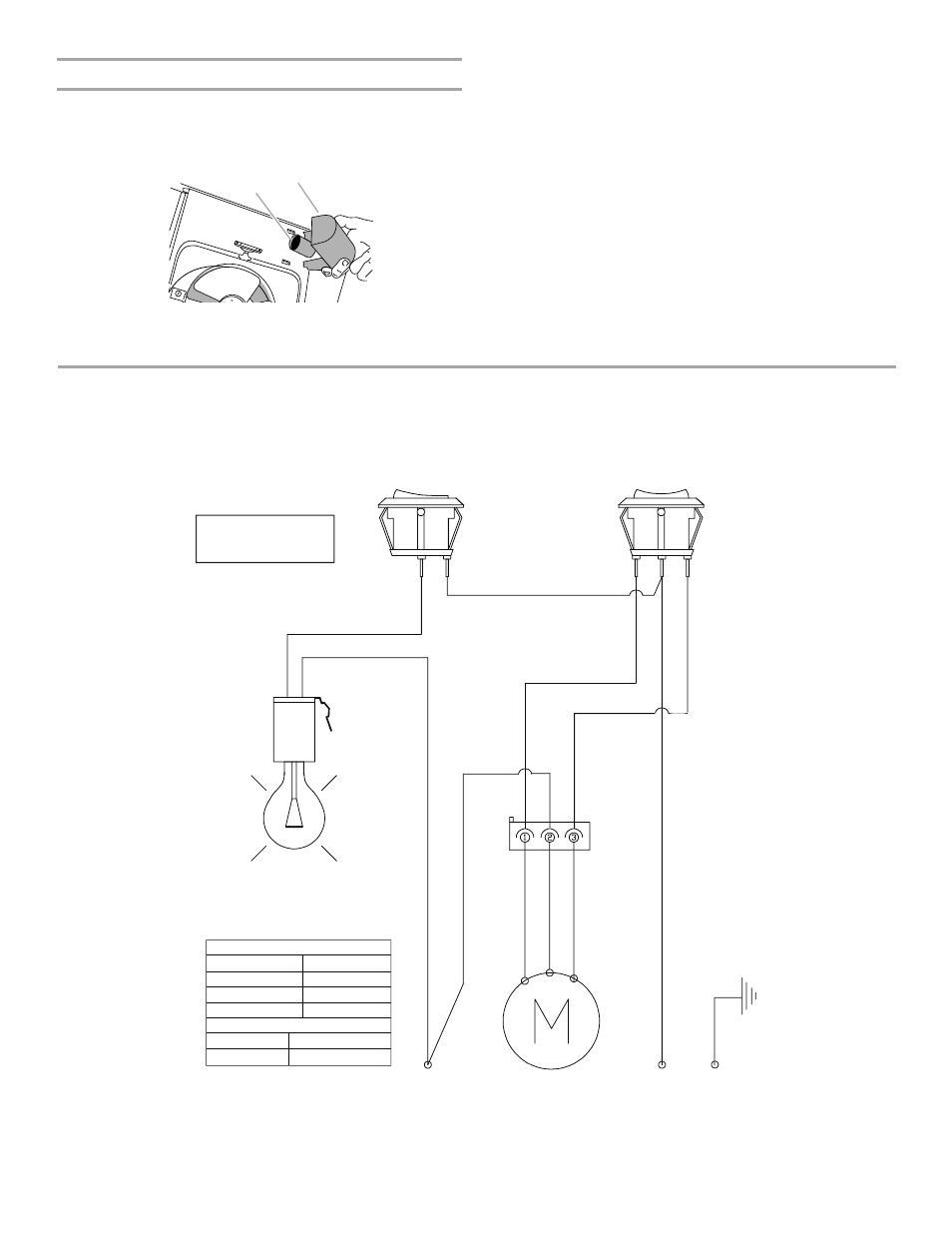

WIRING DIAGRAM
A. Light bulb socket
B. Lens cover
A
B
0.9 ±10% A
50 ±10% Watts
22.3 ±10% Ohms
13.4 ±10% Ohms C19
SE116B
Motor Characteristics
Power Supply 120 VAC
Frequency 60 Hz
Amperage
Wattage Rating
Motor Resistance
White - Red
White - Black
Light Switch
On - Off Motor Switch
Low - Off - High
BK
WH
WH WH
N
BK WH RD
Speed 2 Common
Speed 1
BK
L GND
Ground
Screw
BR WH RD
RD BK BR
BK
