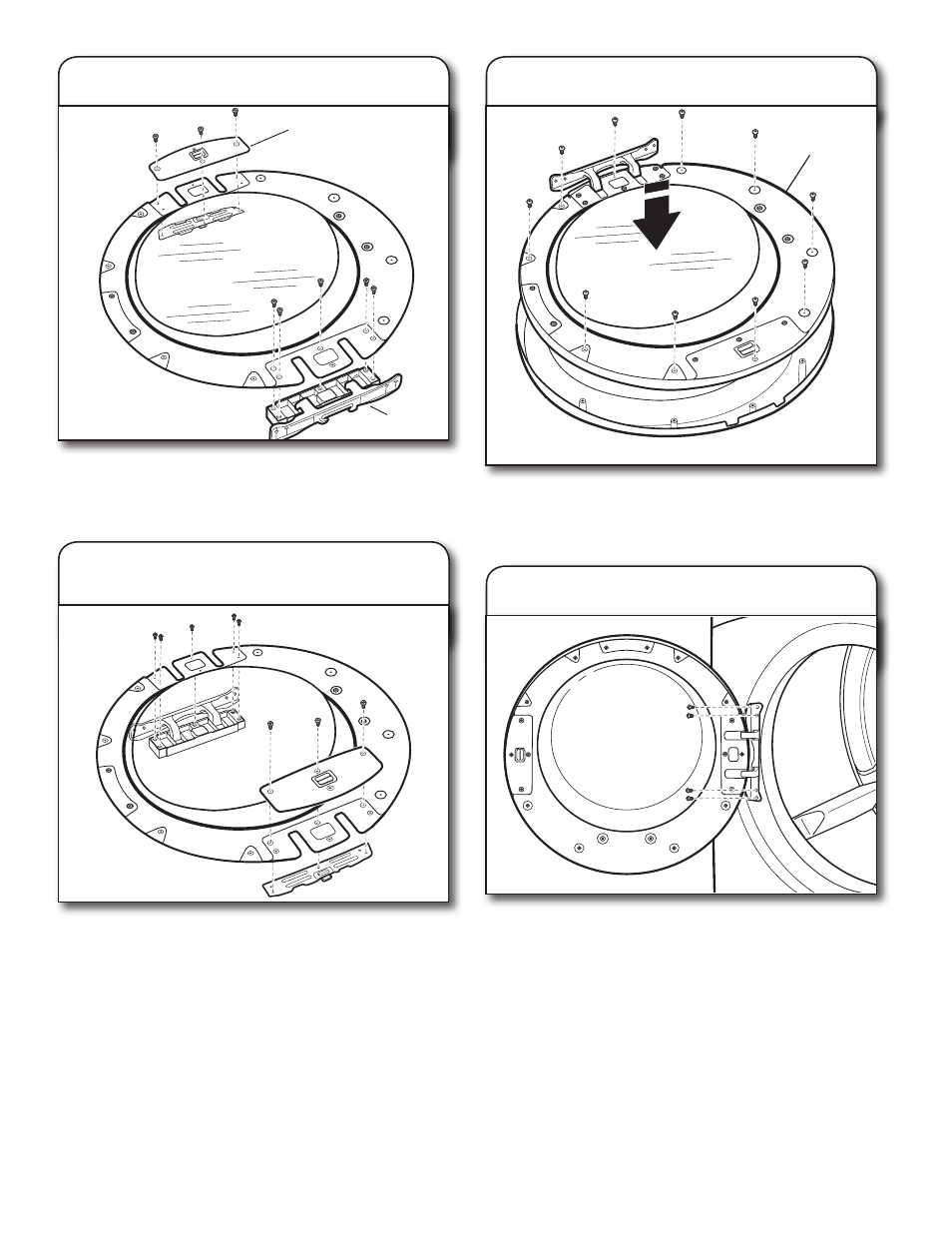

Reinstall hinge and latch on
opposite sides
Using a Torx ® † T25 screwdriver, reinstall the latch plate, latch
backing plate, and hinge assembly on the opposite sides from
which they were removed.
7.
Remove hinge and latch
Using a Torx ® † T25 screwdriver, remove the 3 Torx screws
securing the latch plate and latch backing plate and the 5
screws holding the hinge assembly in place.
Hinge
Latch
9.
Reinstall inner door assembly
Position the door with the inside of the door facing up.
Reinstall the 10 screws securing the inner door to the
outer door.
10.
Reinstall door on dryer
Using a Torx ® † T25 screwdriver, remove the 4 screws on the
dryer. Insert the tabs on the hinge into the mounting slot and
slide down to engage the top tab. Secure in place with
the 4 Torx ® † T25 screws removed earlier.
Bottom
of door
