5

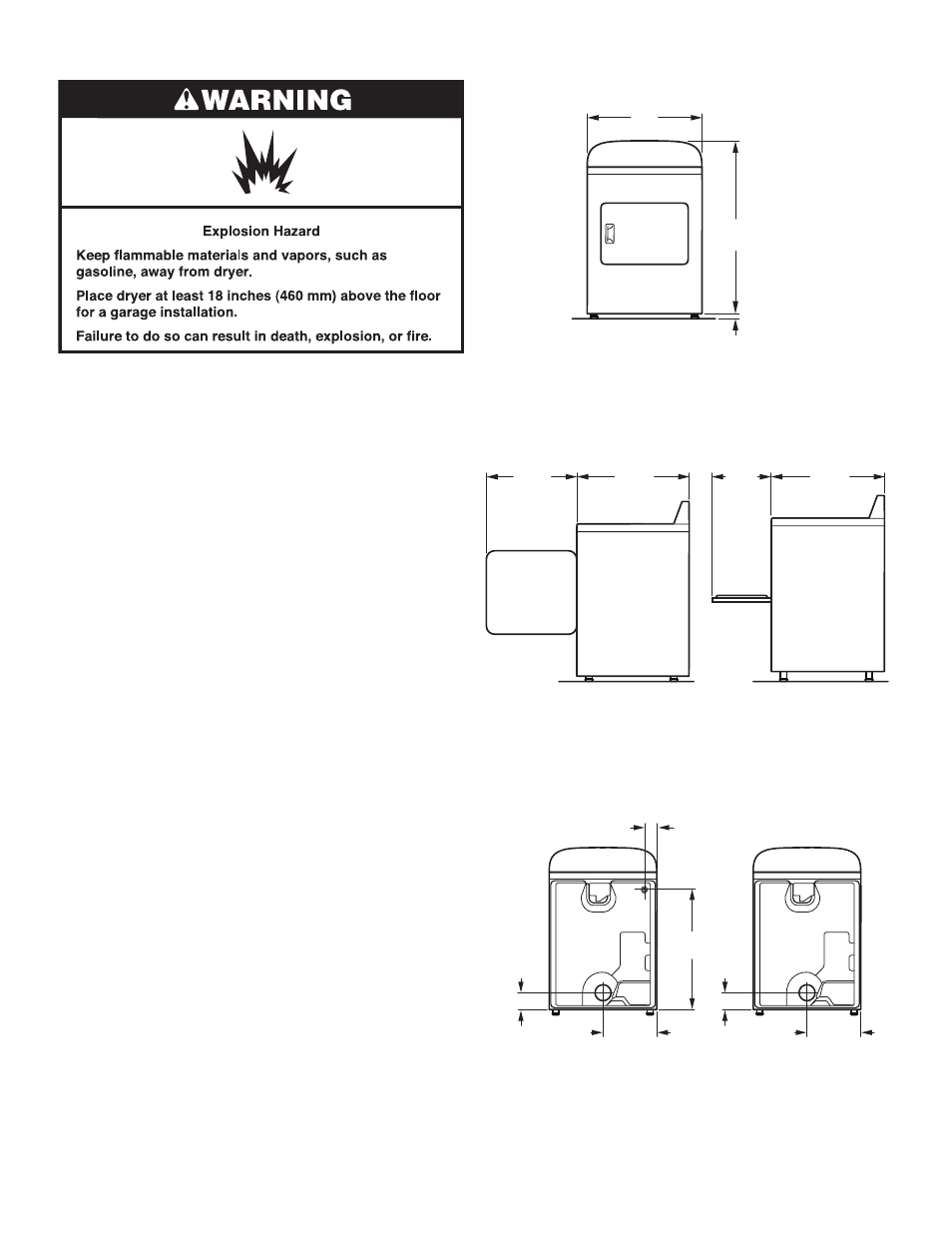

29" Wide Models Dryer Dimensions
Front View
A B
Installation clearances:
The location must be large enough to allow the dryer door to
open fully.
A minimum of 5½" (140 mm) clearance is required behind
the dryer for the exhaust vent with elbow. See “Venting
Requirements.”
Location Requirements
You will need:
■ A location allowing for proper exhaust installation.
See “Venting Requirements.”
■
A separate 30 amp circuit for electric dryers.
■ A separate 15 or 20 amp circuit for gas dryers.
■ If you are using power supply cord, a grounded electrical
outlet located within 2 ft. (610 mm) of either side of dryer.
See “Electrical Requirements.”
■
A sturdy floor to support dryer and a total weight (dryer
and load) of 200 lbs. (90.7 kg). The combined weight of a
companion appliance should also be considered.
■ Level floor with maximum slope of 1" (25 mm) under entire
dryer. If slope is greater than 1" (25 mm), install Extended
Dryer Feet Kit, Part Number 279810. If not level, clothes
may not tumble properly and automatic sensor cycles may
not operate correctly.
Do not operate your dryer at temperatures below 45°F (7°C).
At lower temperatures, the dryer might not shut off at the end
of an automatic cycle. Drying times can be extended.
The dryer must not be installed or stored in an area where it will
be exposed to water and/or weather.
Check code requirements. Some codes limit, or do not permit,
installation of the dryer in garages, closets, mobile homes, or
sleeping quarters. Contact your local building inspector.
NOTE: No other fuel-burning appliance can be installed in the
same closet as a dryer.
22 3 /
4
"
(578 mm)
27 3 /
4
"
(705 mm)
27 3 /
4
"
(705 mm)
13 3 /
4
"
(349 mm)
A. Wide opening side-swing door
B. Wide opening hamper door
NOTE: Leveling legs should be 1/2" (13 mm) (to match height of
3.6 cu. ft. capacity washer) or 1½" (38 mm) (to match height of
3.8 cu. ft. capacity washer).
Side View
Back View
29"
(737 mm)
43 3 /
8
"
(1102 mm)
1 /
2
"
(13 mm)
30 1 /
4
"
(768 mm)
14 1 /
2
"
(368 mm)
4 3 /
4
"
(121 mm)
4"
(101 mm)
14 1 /
2
"
(368 mm)
4 3 /
4
"
(121 mm)
Steam Non-Steam
