22

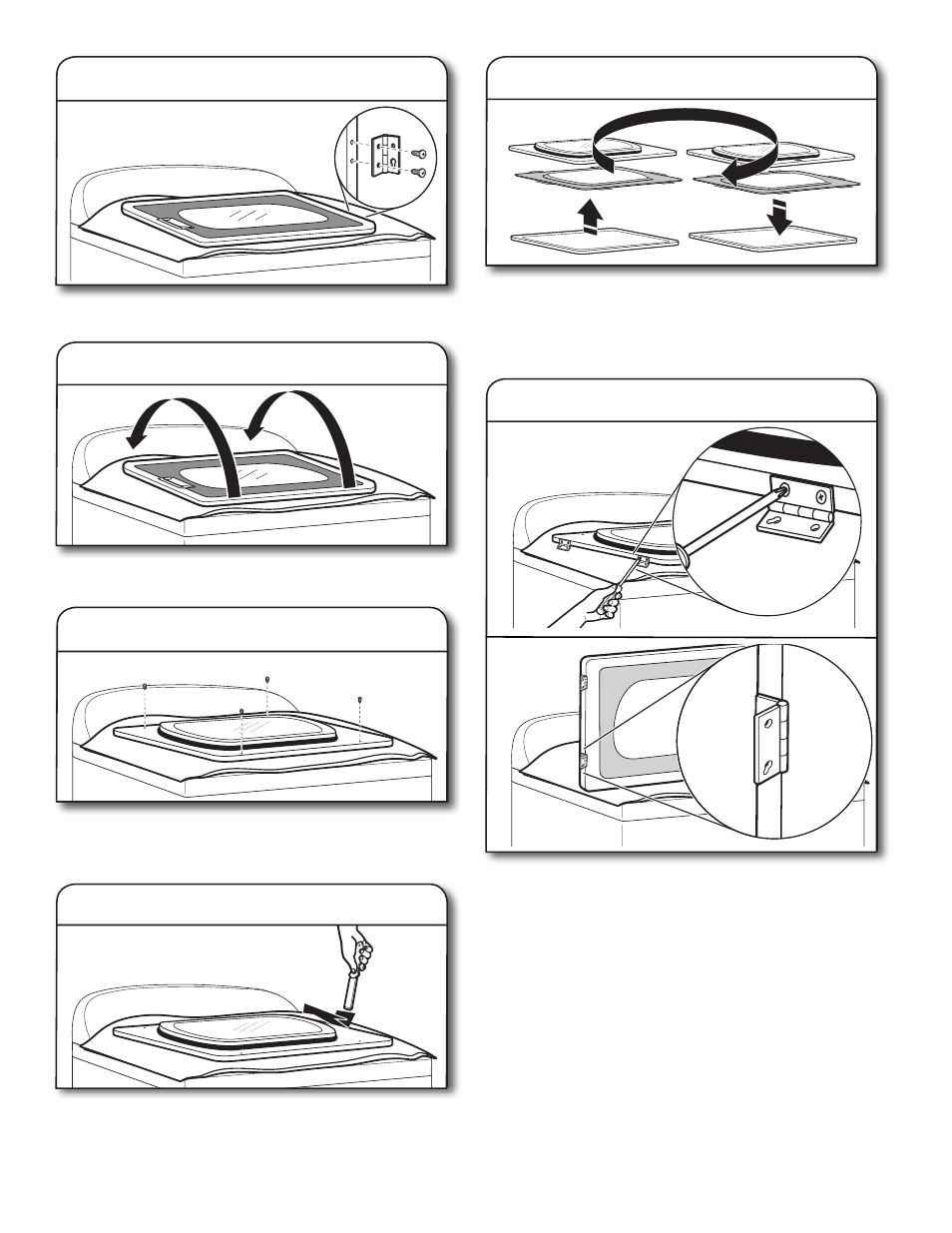

Remove screws attaching hinges to door.
Remove screws from hinges
4.
Flip door over
5.
Flip door over so handle side is down.
Rotate outer door
8.
Rotate outer door 180º and set it back down on inner door.
Be certain to keep cardboard spacer centered between
doors. Reattach outer door panel to inner door panel so
handle is on the side where hinges were just removed. Insert
4 door screws.
Remove screws at top, bottom, and side of door (4 screws).
Keep door screws separate from hinge screws as they are
different sizes.
Remove screws from door
6.
Attach door hinges
9.
Reattach door hinges to dryer door so that the larger hole is
at the bottom of the hinge.
Holding door over towel on dryer, pry inner door and lift to
separate it from outer door.
NOTE: Do not pull on door seal or plastic door catches.
Separate inner from outer door
7.
