Positioning Oven Feet for Multiple Cabinet Cutout Heights
Single Ovens
The positioning of the oven feet allow a single oven to be
installed in a cutout height between 26 15 ⁄
16
" (68.4 cm) and 29 7 ⁄
16
"
(74.8 cm). Refer to the following instructions to position the feet
for the size of your cabinet cutout.
Cutout height is between 27
5 ⁄
8
" (70.2 cm)
and 28 5 ⁄
8
" (72.7 cm)
The oven feet do not need to be changed. They are positioned
correctly as received.
Go to the “Make Electrical Connection” section.
Cutout Height is between 26 15 ⁄
16
" (68.4 cm)
and 27¹¹⁄
16
" (70.3 cm)

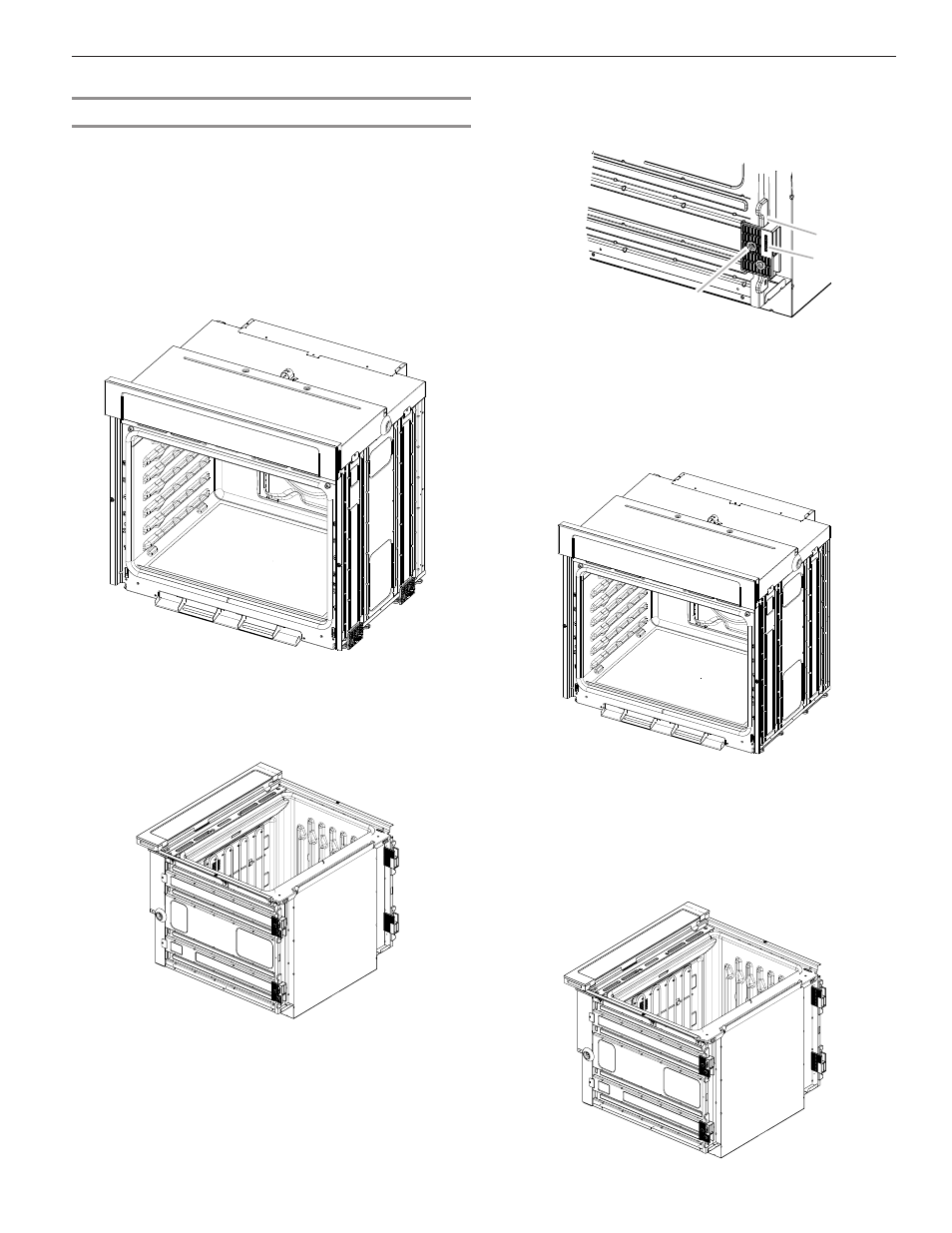

1. Using 2 or more people, place the oven on its back
on a covered surface.
2. Remove the foot from the right front spacer by removing
the #8-18 x ³⁄
8
" screw.
NOTE: Do not remove the spacer.
A. Spacer
B. Foot
C. #8-18 x ³⁄
8
" screw
3. In the same manner, remove the feet on the right rear,
left front, and left rear of the oven.
4. Using 2 or more people, place the oven in its upright
position.
5. Go to the “Make Electrical Connection” section.
Cutout Height is between 28¹¹⁄
16
" (72.8 cm)
and 29 7 ⁄
16
" (74.8 cm)
1. Using 2 or more people, place the oven on its back
on a covered surface.
A
B
C
