7. On models with the foot positioned with the short side of
the foot toward the top of the oven, the bottom vent trim
must also be installed. See the following instructions to
install.
■

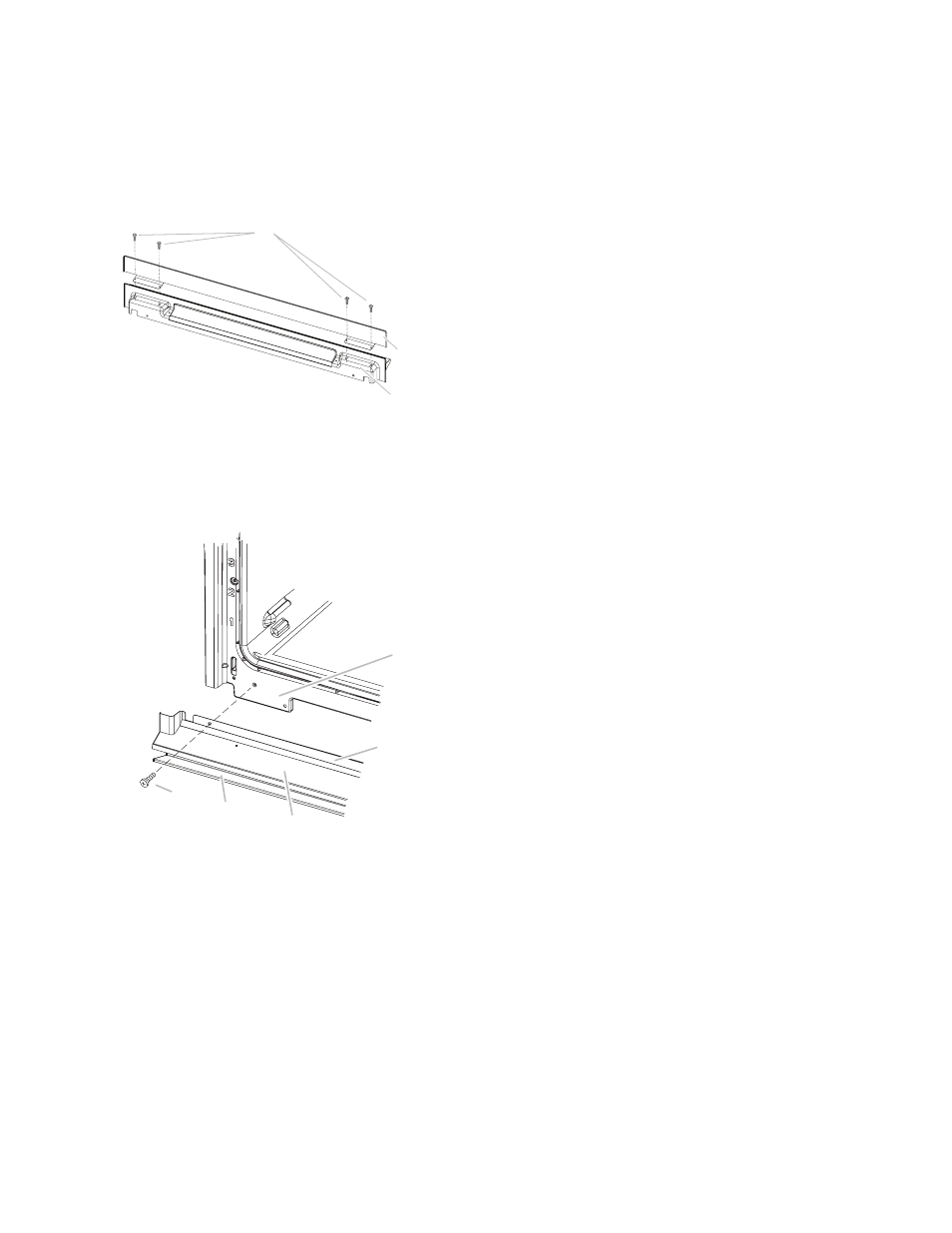

Position the bottom vent trim (B) on the vent (C).
■ Install the bottom vent trim (B) to the vent (C) using two
#8–18 x ¹⁄
4
" screws on each side.
NOTE: On 27" (68.6 cm) models, only one #8–18 x ¹⁄
4
"
screw is used on each side.
A. #8–18 x ¹⁄
4
" screw
B. Bottom vent trim
C. Vent
8. Replace the oven racks.
9. Replace the oven door by inserting the ends of hinges into
the hinge slots in the oven frame.
10. Push the hinges in as far as they will go and open the oven
door. You should feel the oven door drop into place.
11. Rotate both hinge latches back to the locked position.
12. Check that the door is free to open and close. If it is not,
repeat the removal and installation procedures. See the
“Prepare Built-In Oven” section.
13. Repeat for lower oven door.
14. Reconnect power.
15. The display panel will light briefly, and “PF” should appear
in the display.
16. If the display panel does not light, reference the “Assistance
or Service” section of the Use and Care Guide or contact
the dealer from whom you purchased your oven.
■ Align vent tab (B) with oven frame (A) as shown.
■ Using one #8-18 x ³⁄
8
" screw (E) on each side of the
vent tab (B), fasten the vent securely to the oven.
A. Oven frame
B. Vent tab
C. Oven vent
D. Bottom vent trim
E. #8–18 x ³⁄
8
" screw
