3

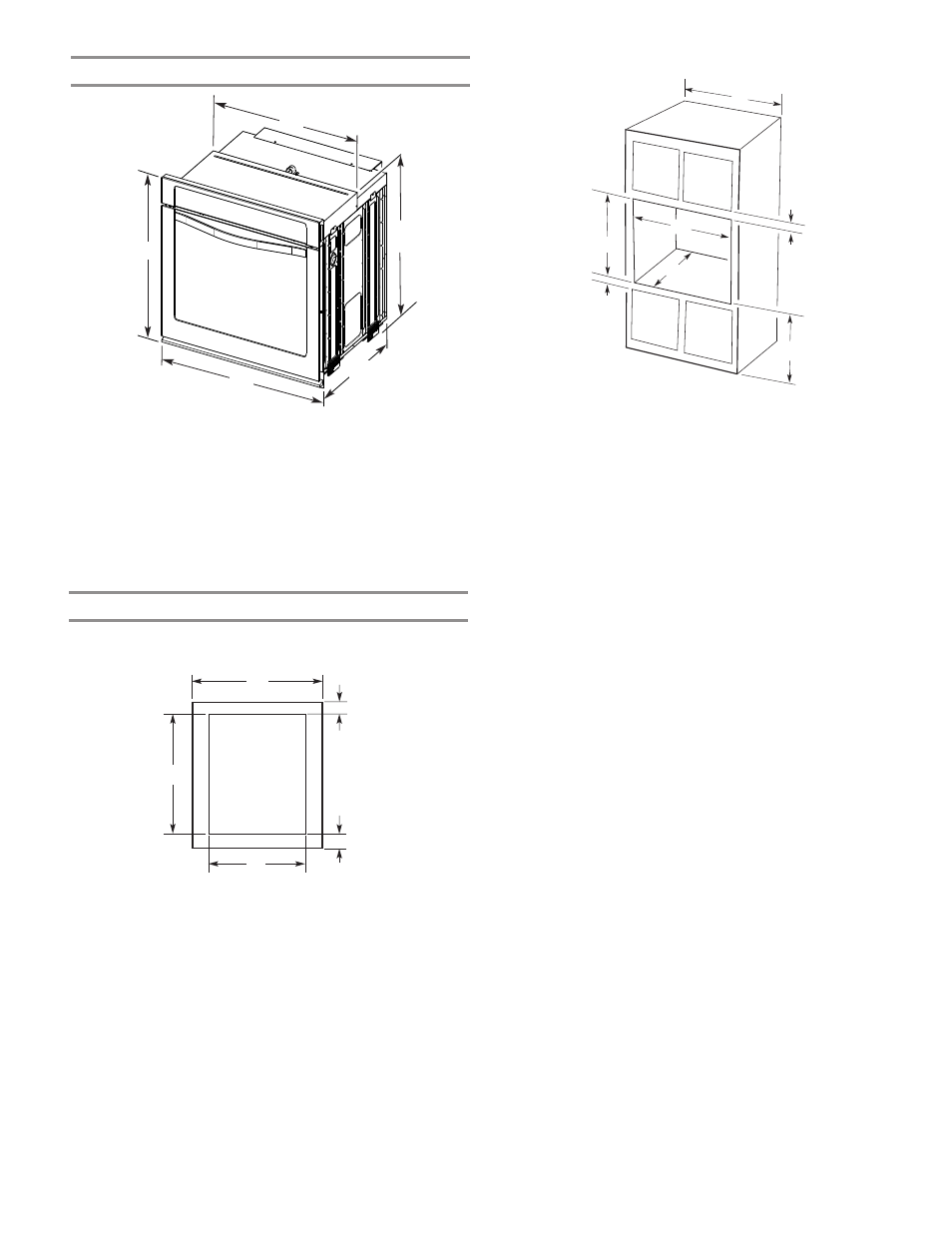

Product Dimensions – Single Ovens
Cabinet Dimensions – Single Oven
Single Oven Undercounter (without cooktop installed above)
27" (68.6 cm) models
A. 28¾" (72.8 cm) max. overall
height
B. 25 7 ⁄
16
" (64.6 cm) max. recessed
width
C. 26³⁄
4
" (67.9 cm) recessed height
D. 23¹⁄
4
" (59.1 cm) max. recessed
depth
E. 27" (68.6 cm) overall width
27" (68.6 cm) models
A. 27" (68.6 cm) min. cabinet
width
B. 1¹⁄
2
" (3.8 cm) min. top of cutout
to underside of countertop
C. 5¹⁄
4
" (13.3 cm) bottom of cutout
to floor
D. 25¹⁄
2
" (64.8 cm) cutout width
E. 28" (71.2 cm) min. cutout
height
B
C
D
E
A
A
B
C
D
E
30" (76.2 cm) models
A. 28¾" (72.8 cm) max. overall
height
B. 28½" (72.4 cm) max. recessed
width
C. 26³⁄
4
" (67.9 cm) recessed height
D. 23¹⁄
4
" (59.1 cm) max. recessed
depth
E. 30" (76.2 cm) overall width
30" (76.2 cm) models
A. 30" (76.2 cm) min. cabinet
width
B. 1¹⁄
2
" (3.8 cm) min. top of cutout
to underside of countertop
C. 5¹⁄
4
" (13.3 cm) bottom of cutout
to floor
D. 28¹⁄
2
" (72.4 cm) cutout width
E. 28" (71.2 cm) min. cutout
height
Single Oven Installed in Cabinet
27" (68.6 cm) models
A. 27" (68.6 cm) min. cabinet
width
B. 1" (2.5 cm) top of cutout
to bottom of upper cabinet
door
C. 32" (81.3 cm) bottom of
cutout to floor
D. 25¹⁄
2
" (64.8 cm) cutout width
E. 1¹⁄
2
" (3.8 cm) min. bottom of
cutout to top of cabinet door
F. 28" (71.2 cm)* recommended
cutout height
G. 24" (60.7 cm) cutout depth
F
E
B
C
A
D
G
30" (76.2 cm) models
A. 30" (76.2 cm) min. cabinet
width
B. 1" (2.5 cm) top of cutout
to bottom of upper cabinet
door
C. 32" (81.3 cm) bottom of
cutout to floor
D. 28¹⁄
2
" (72.4 cm) cutout width
E. 1¹⁄
2
" (3.8 cm) min. bottom of
cutout to top of cabinet door
F. 28" (71.2 cm)* recommended
cutout height
G. 24" (60.7 cm) cutout depth
* NOTE: The cutout height can be between 26 15 ⁄
16
" (68.4 cm)
and 29 7 ⁄
16
" (74.8 cm) for single ovens.
