NOMENCLATURE DES PIÉCES
6
6-6 Command THC (X-Y) Manuel d’instructions

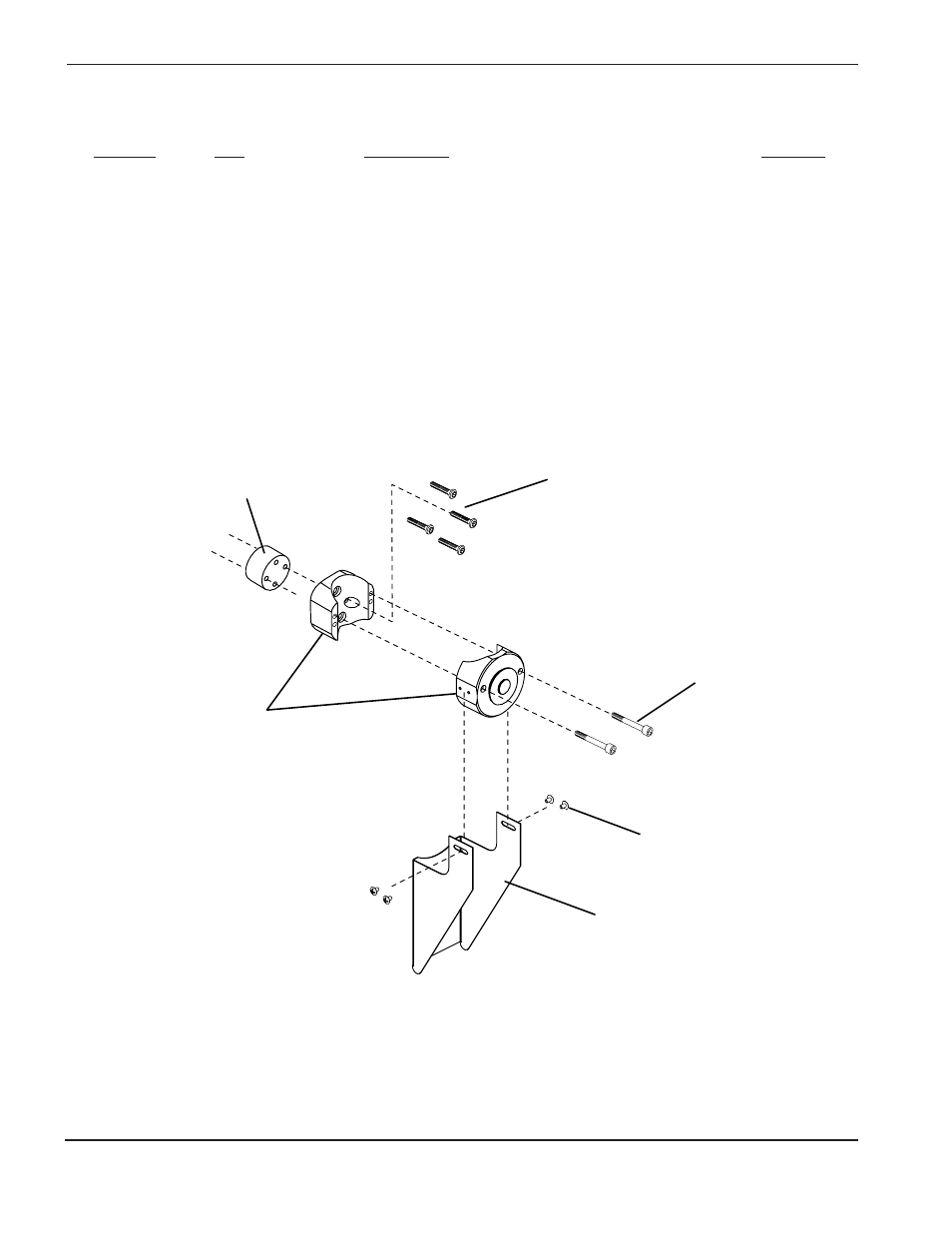

Figure 6-5 Ensemble du bloc de fixation de la torche du dispositif de levage THC X-Y
Ensembles du block de fixation de la torche du dispositif de levage X-Y
Nº Index Réf. Description Quantité
128277 Kit, torch mounting block, 1-3/8 inch diameter torch 1
128278 Kit, torch mounting block, 1-3/4 Inch diameter torch 1
128279 Kit, torch mounting block, 2 inch diameter torch 1
1 004775 Spacer, Command THC mounting block 1
2 075127 Socket cap, 1/4-20 X 1-1/2 inch hex BTN S/Z 4
3 075583 Socket cap, 1/4-20 X 1-3/4 inch hex SST 2
4 120595 Block, 1-3/8 inch torch mounting (kit 128277) 1
4 120596 Block, 1-3/4 inch torch mounting (kit 128278) 1
4 120597 Block, 2 inch torch mounting (kit 128279) 1
5 002303 Shield 1
6 075071 Screw, 8-32 X 1/4 inch 4
THC.54
1
2
3
4
5
6
