Chapter 3 : OPERATING MODE (continued) Di-VentiX™
PAGE 18
3-1. OPERATING WITH THE REMOTE CONTROL SOFTWARE (continued)
3-1-3. OPERATING IN MIXER MODE (continued)
• INPUT SELECTION
Pre-select an input with the INPUT SELECT buttons. The button starts blinking.
Select an effect with the EFFECT buttons.
Press on TAKE to do the transition.

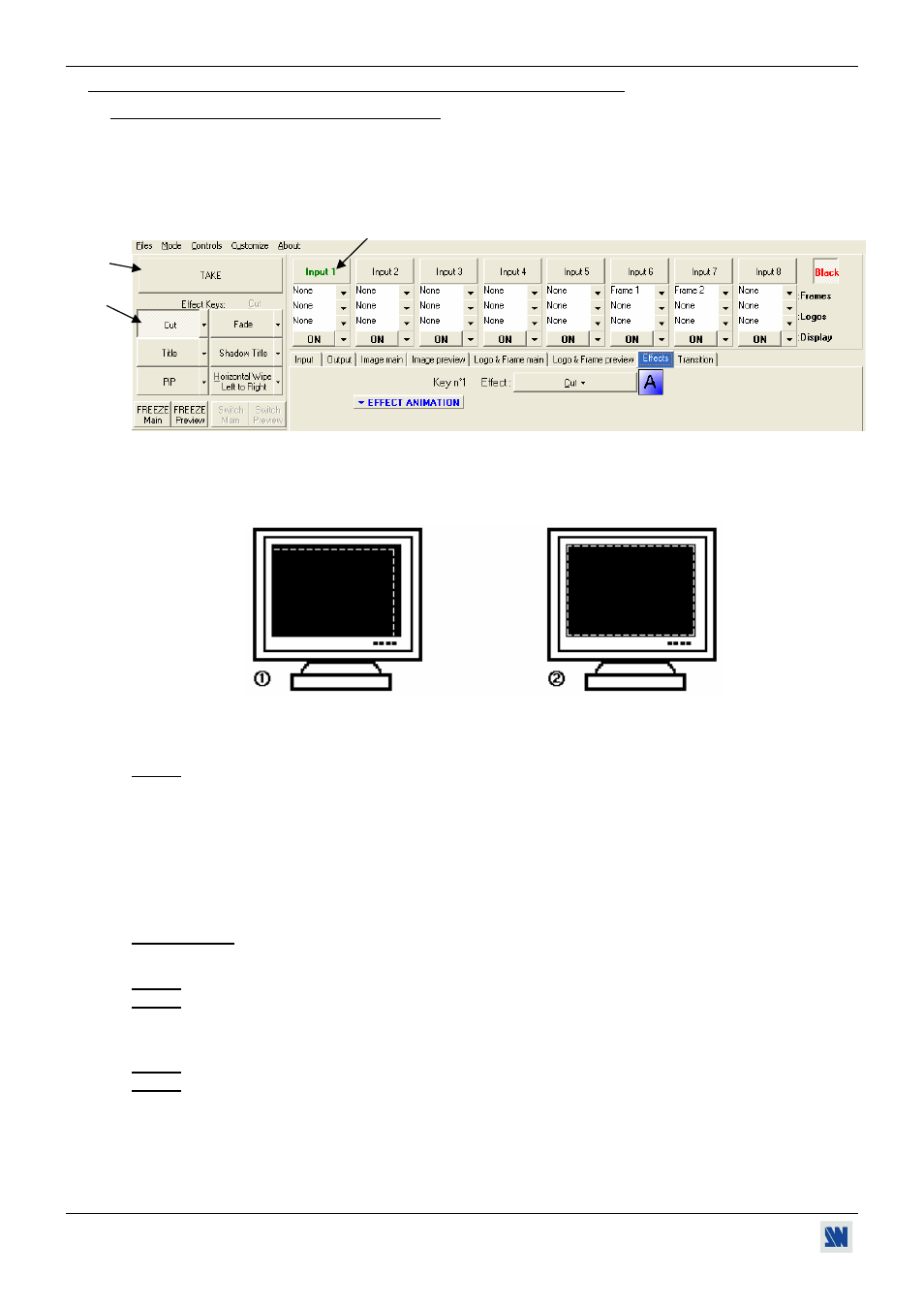

Figure 17
• DISPLAY DEVICES ADJUSTMENTS
Click on the Output tab and select the MAIN centering pattern.
Adjust directly the display device itself, using its controls, to fill the centering pattern in full screen.
Figure 18: Centering pattern.
Renew the same process to adjust your PREVIEW display device.
NOTE: Now the display devices are identically adjusted, you can also do the image adjustments of each source on
the display device of your choice. When you are in a live display, you can do corrections on the PREVIEW
monitor only, without disturbing the MAIN display device.
• IMAGE ADJUSTMENTS
For each input source connected to the Di-VentiX do the following adjustments:
Select the source you want to adjust.
Click on the Image main or Image preview tab.
Use the Centering function to automatically position the image in the Centering pattern.
IMPORTANT: For best results, display a full size bright image (no black border) to perform a centering. As
required, correct the adjustment with the position & size functions.
NOTE: The centering function is only available for computer sources.
NOTE: In case of same Input/Output resolution, the centering also achieves automatic pixel clock adjustments. It
may be useful, to improve manually the pixel clock and phase.
As required, do the others adjustments, available in the IMAGE menu (color, brightness…).
NOTE: To set the image adjustments to the factory settings, use the Preset function.
NOTE: The adjustments are automatically stored in NON-volatile memories. The Di-VentiX is provided with 40
NON-volatile image memories. Each of these memories contains the input channel number, the input and
output format parameters and all of the image adjustments (position, size, brightness...). When the 40
memories are used, each new memorization erases the oldest record.
