Di-VentiX™ Chapter 3 : OPERATING MODE (continued)
PAGE 17
3-1. OPERATING WITH THE REMOTE CONTROL SOFTWARE (continued)
3-1-2. COMMUNICATION SETUP (continued)
• CASE OF LAN PORT:
Connect the control device to the Di-VentiX with the RS-232 port as indicated in the previous page, then
configure the LAN communication port (local address & port, remote address & port, netmask and gateway) of
the device with the Remote Control Software (CONTROL menu > LAN setup).
Connect the LAN port (RJ45 connector) of the device to your network according to your installation.
Select the LAN communication port of the device with the remote control software (CONTROL menu >
RS232/LAN setup >LAN setup) and configure the control device (Local port, Remote IP address & Remote
Port). Click on Apply to setup the new values. The software will also display Device connected. Then you can
disconnect the RS232 cable.

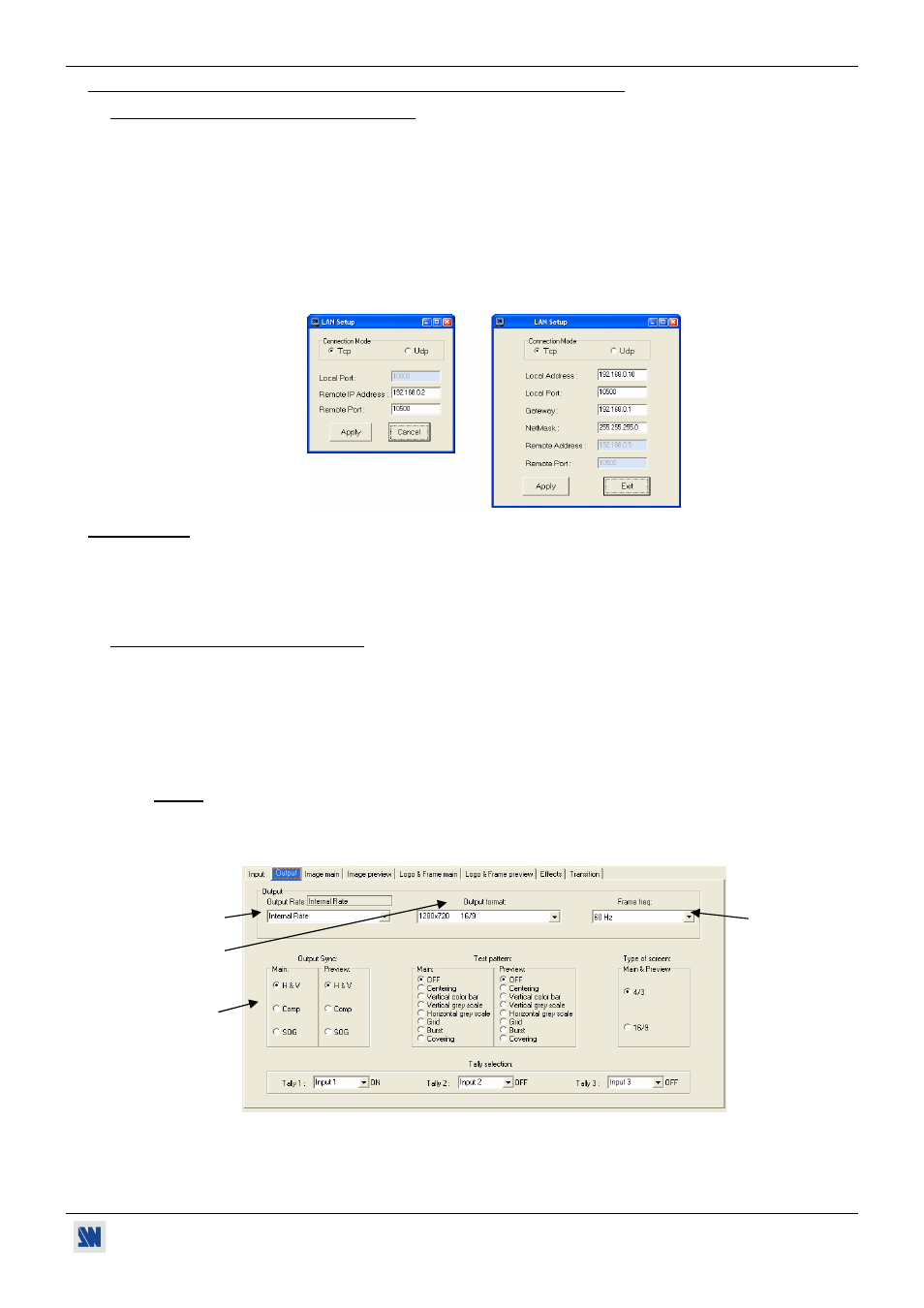

Figure 15
IMPORTANT: The Di-VentiX can be used in three different modes: the MIXER MODE, the MATRIX MODE and the
EMBEDDED EDGE BLENDING MODE. The MIXER MODE allows switching seamlessly, fading
and titling between all the inputs. The MATRIX MODE allows displaying the inputs onto two
independents display devices.
In EDGE BLENDING MODE, Di-VentiX can drive 2 video-projectors
for horizontal or vertical Soft Edge. The default mode is the MIXER MODE.
3-1-3. OPERATING IN MIXER MODE
• SETTINGS
We recommend resetting the device to its default values (Controls menu > default value) before proceeding.
Verify the device
is set in MIXER MODE (Mode menu > Mixer).
Click on the Input tab and select the signal type of each source connected to the inputs.
Click on the Output tab.
Select the output rate mode (Internal rate or follow input...). Then select the frame freq.
Select one of the output formats.
NOTE: For fixed pixels display device (DMD, LCD, PLASMA…), always select the output format
corresponding to the native resolution of your display device. Thus, the display device will not have to
scale the image and the result will be better.
Select the output sync. according to your display device.
Figure 16
