14
4. Snap the conduit connector into the hole by pressing it
in until it clicks into place.

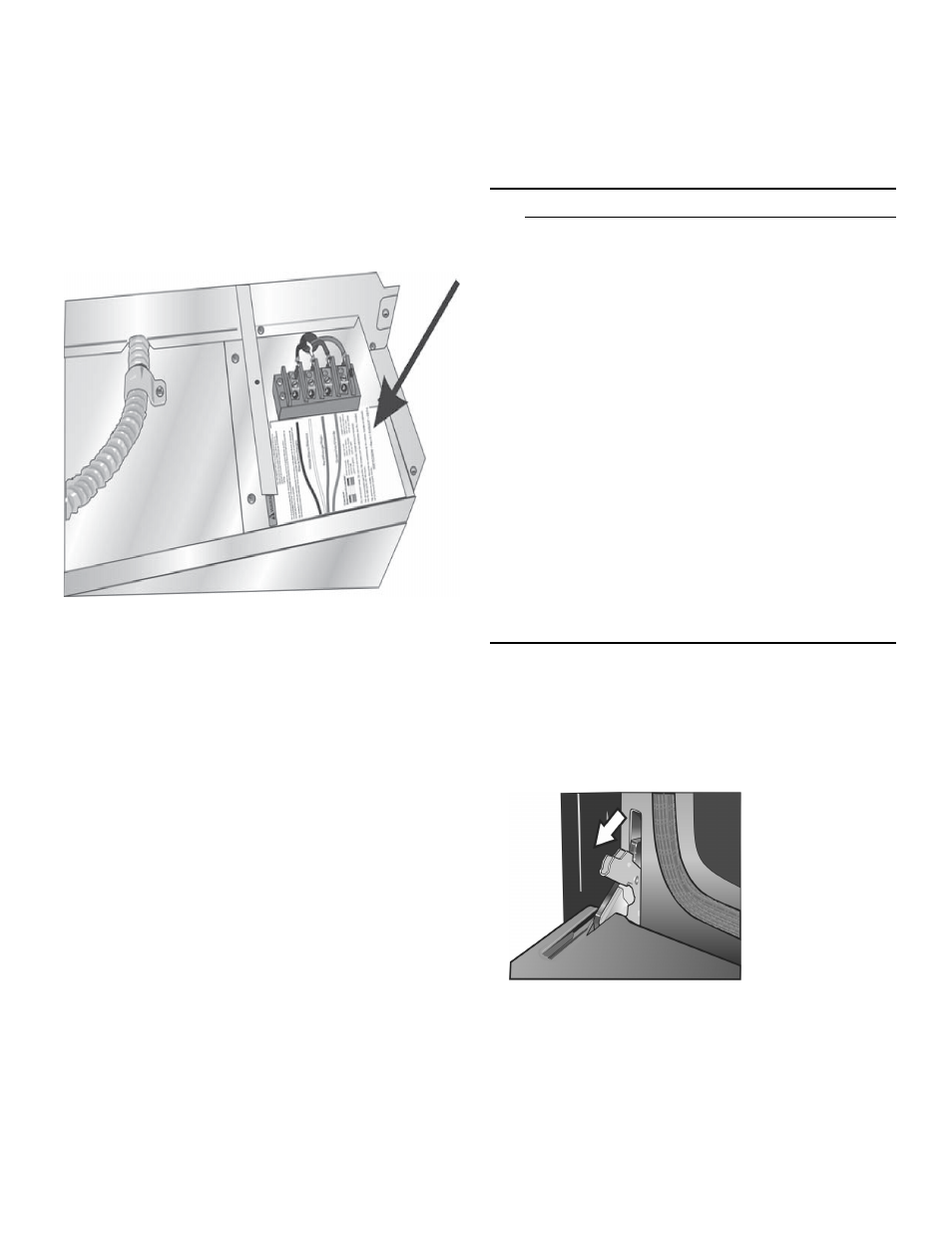

5. Follow the wiring diagram label and match and
connect each wire by color to the wires attached to the
wiring block inside the oven-mounted junction box.
Push the bare end of the wire until it is snug in the
wiring block then tighten down the retaining screw on
each wire.
Tighten securely, but do not overtighten.
See previous illustration in Step 3 for finished
appearance.
6. Replace the oven-mounted junction box cover and
tighten the two screws holding it in place.
Tighten securely, but do not overtignten.
Remove Oven Door Prior to Installation
It is recommended to remove the conventional (lower)
oven door to help reduce the unit weight.
NOTICE: Do not remove the speed oven door.
How to Remove the Oven Door
9 WARNING
▯
Make sure oven is cool and power to the oven
has been turned off before removing the door.
Failure to do so could result in electrical shock or
burns.
▯
The oven door is heavy and parts of it are fragile.
Use both hands to remove the oven door. The
door front is glass. Handle carefully to avoid
breakage.
▯
Grasp only the side of the oven door. Do not
grasp the handle as it may swing in your hand
and cause damage or injury.
▯
Failure to grasp the oven door firmly and properly
could result in personal injury or product damage.
▯
To avoid injury from hinge bracket snapping
closed, be sure both levers are securely in place
before removing the door. Also, do not force door
open or closed-the hinge could be damaged and
injury could result.
▯
Do not lay removed door on sharp or pointed
objects as this could break the glass. Lay on a
flat, smooth surface, positioned so that the door
cannot fall over.
To help avoid injury or damage, be sure to read the
above WARNING before attempting to remove the oven
door.
1. Open the oven door to its fully open position.
2. Flip levers on hinges toward you.
Note: It may be necessary to use a tool, such as a
screwdriver, to gently pry the upper part of the lever
away from the housing. Take care to avoid scratching
the housing.
3. Bring both door hinge levers to their fullest down
position as shown in the illustration. The left and right
door hinges differ slightly but operate in the same
manner.
