13
3. Place the speed oven on top of the universal
connector brackets and fasten in place using three (3)
screws per side. Tighten the screw securely, but do
not overtighten.

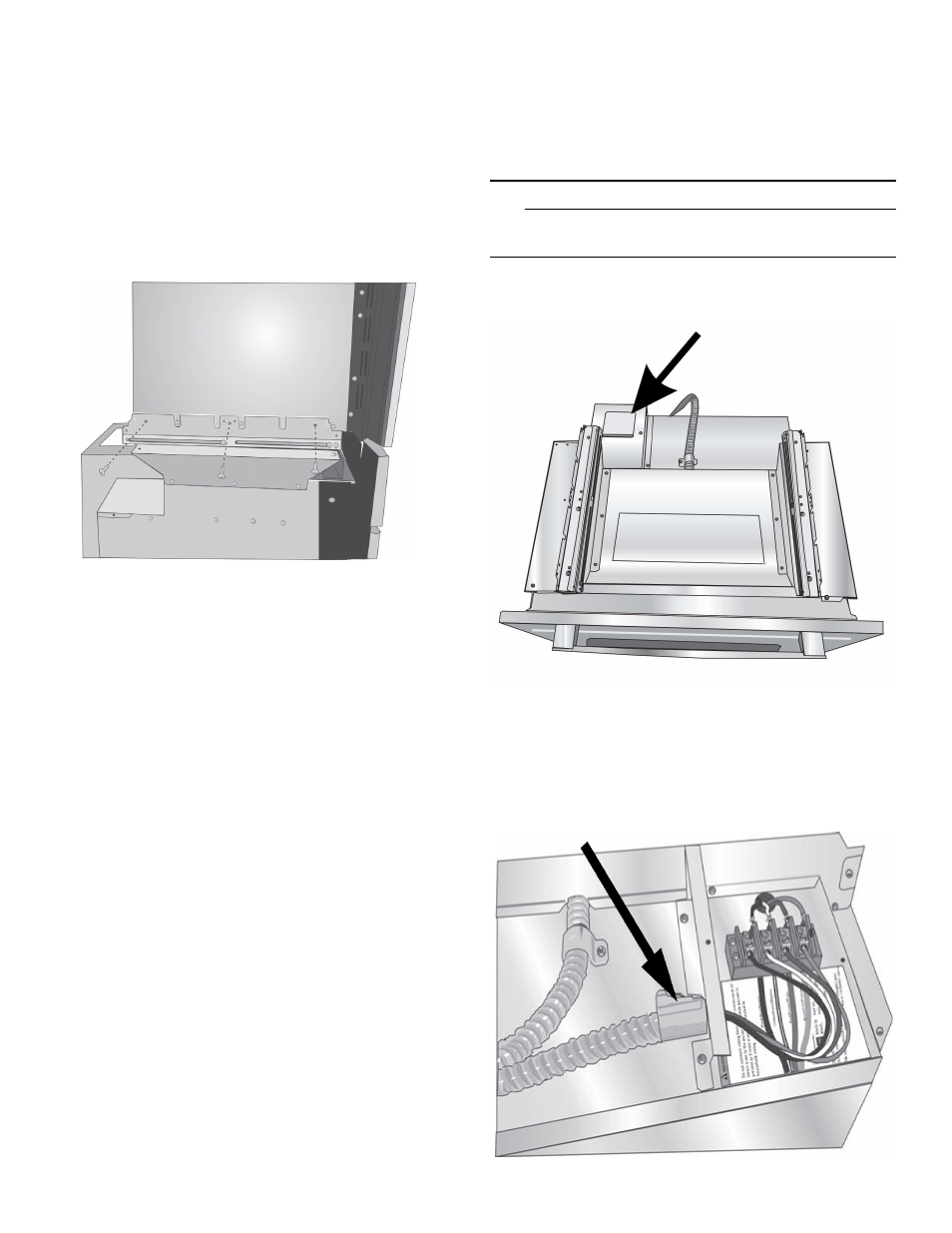

Note: The existing screws in the speed oven base
help with alignment. When lowering the speed oven
into place on the universal connector brackets, allow
these screw heads to slide into the slots as shown in
the illustration below. The screw nearest the front of
the speed oven should slide into the base of the slope
at the front of the bracket.
4. Continue to “Connecting the Speed Oven Electrical
Conduit to the Lower Oven”.
Connecting Speed Oven Electrical Conduit to
Lower Oven
Note:
When installing the combination unit, the power
cable must be properly attached to the oven-mounted
junction box. This must be done prior to supplying
electrical power to the oven unit.
9 WARNING
Check to be sure that no electrical power has yet
been supplied to the oven.
1. Remove the oven-mounted junction box cover located
on the top rear of the oven. (See image below).
2. Remove the cap from the conduit access hole in the
side of the oven-mounted junction box.
3. Guide the wires from the conduit cable coming from
the speed oven through the hole in the oven-mounted
junction box. There are four wires coming from the
speed oven.
