Oven Installation
NOTICE: Before installing the appliance, be sure to
verify the cabinet dimensions and electrical connections.
For Best Installation
The oven can be difficult for two people to handle during
installation. It is recommended to have three or more
people available to assist with lifting the unit into place.
Removal of the oven door during installation (to provide
the necessary handholds and to significantly reduce the
unit weight) can be cumbersome unless the detailed
door removal instructions are followed carefully. Please
take time to read and follow the instructions provided for
an improved installation experience.
Pre-Assembly of the Combination Oven
Combination ovens require the oven and the microwave
to be assembled prior to installing the combination unit
into the wall cabinet.

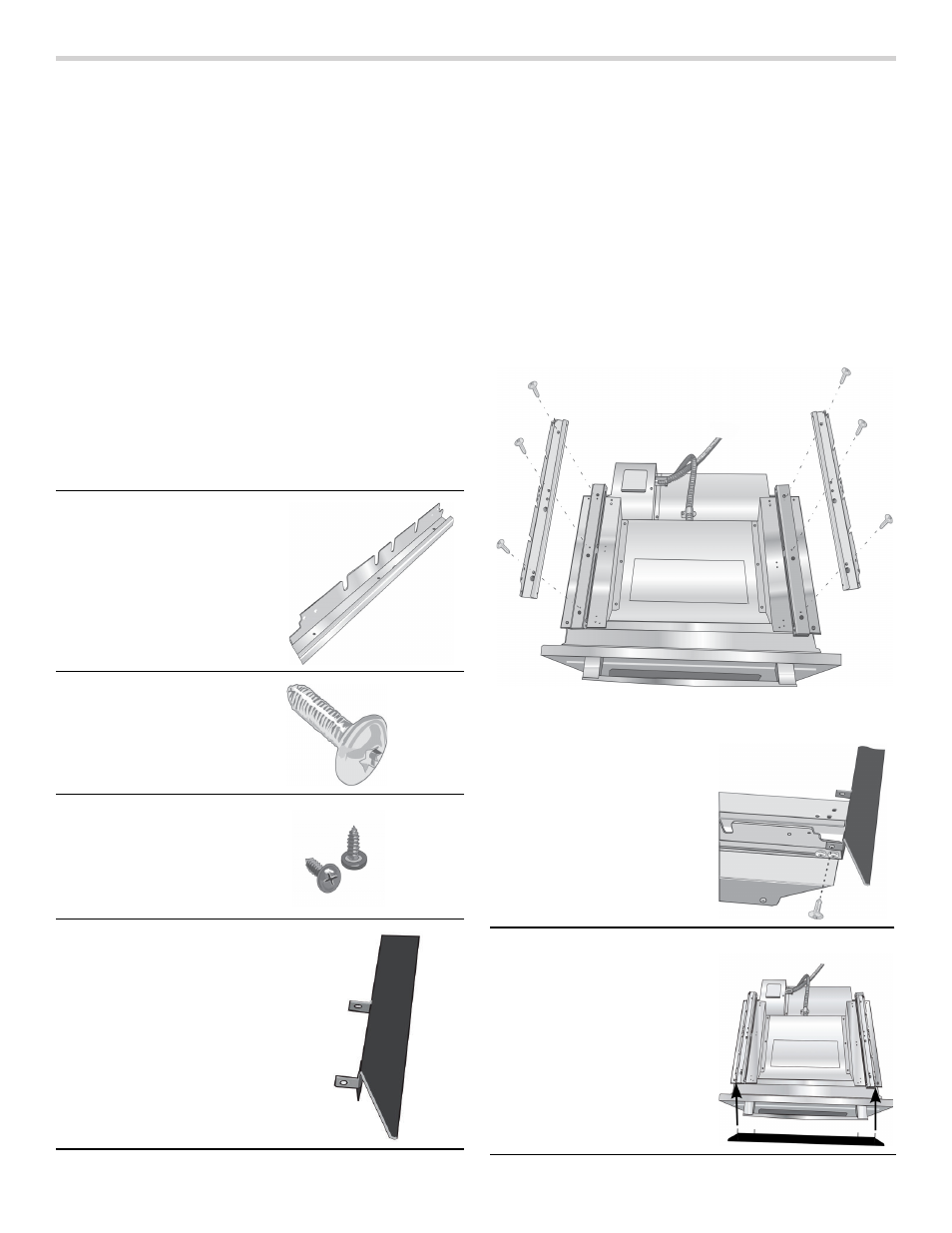

Parts Provided
Assembly of the two Oven Units
Notes
▯
Do not place the oven into the wall cabinet until after
mounting the speed oven on top of the lower oven and
securing it with the universal connector brackets.
▯
The universal connector brackets are interchangeable
for the left and right sides of the oven. Be sure the
taller vertical edge of the bracket is positioned to the
outside of the oven.
1. Install both universal connector brackets on top of the
lower oven using six (6) of the screws provided.
Tighten screws securely, but do not overtighten.
2. Install decorative trim.
Universal connector bracket
(2):
in parts box on top of oven
Screws (16):
in red bag inside parts box
on top of oven.
Oven Mounting Screws (8):
Screws are included to
secure the oven trim to the
cabinet. The screws are
located in a small plastic bag
affixed to the literature pack
bag.
Trim Piece:
in plastic bag on top of oven.
Position the decorative trim
piece so the flanges with the
holes in them face to the rear
of the oven.
Align the outer flanges with
the outside of the universal
brackets. Fasten with one (1)
screw each into the end hole
of each universal bracket.
Tighten screws securely, but
do not overtighten.
