8

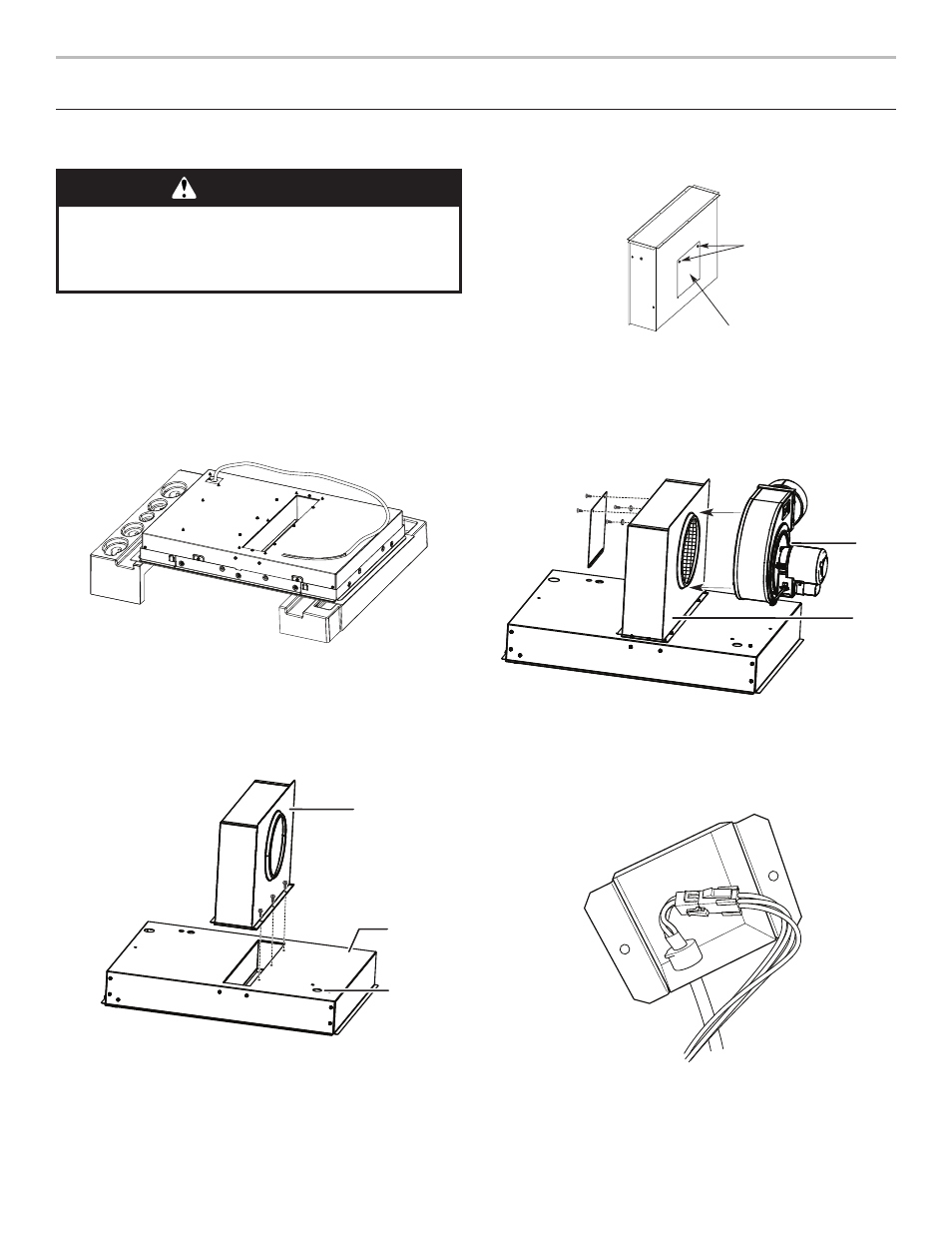

INSTALLATION INSTRUCTIONS
Prepare Cooktop
Decide on the final location for the cooktop.
IMPORTANT: Do not cut top of product packaging. This may
damage the product.
1. Open product as instructed on product packaging.
2. Remove all items from both sides of the foam and set aside.
Take out packaging foam and set aside to lay cooktop on.
IMPORTANT: Do not place packaging foam on knobs.
3. Using 2 or more people, remove cooktop and place the
cooktop upside down on the packaging foam, making sure
the knobs are not laid on the packaging foam.
4. Remove plenum and plenum screw pack (in the literature
bag).
5. Remove downdraft motor assembly.
6. Place plenum on bottom of cooktop with round opening
to the motor wire harness.
NOTE: All holes are pre-drilled. If all 6 holes do not line up,
reverse plenum.
7. Using a 1 /
4
" nut driver, screw in the 6 screws from the
literature pack to attach plenum.
8. Remove access panel from plenum using a 1 /
4
" nut driver
and set aside.
9. Remove 4 locking nuts and 4 washers from literature bag.
NOTE: Remove the 4 protective caps from the motor
mounting posts.
10. Place blower motor on plenum and rotate blower outlet
to where it matches the ductwork.
11. Install and finger-tighten the 4 washers and locking nuts that
were removed through the opening of the motor access
panel. Do not over-tighten to allow for motor to rotate.
12. Connect blower electrical connector to cooktop.
WARNING
Excessive Weight Hazard
Use two or more people to move and install cooktop.
Failure to do so can result in back or other injury.
A
B
C
A. Plenum
B. Cooktop
C. Motor wire harness
A
B
A. Access panel
B. 2 screws
A
B
A. Blower motor
B. Plenum
