10

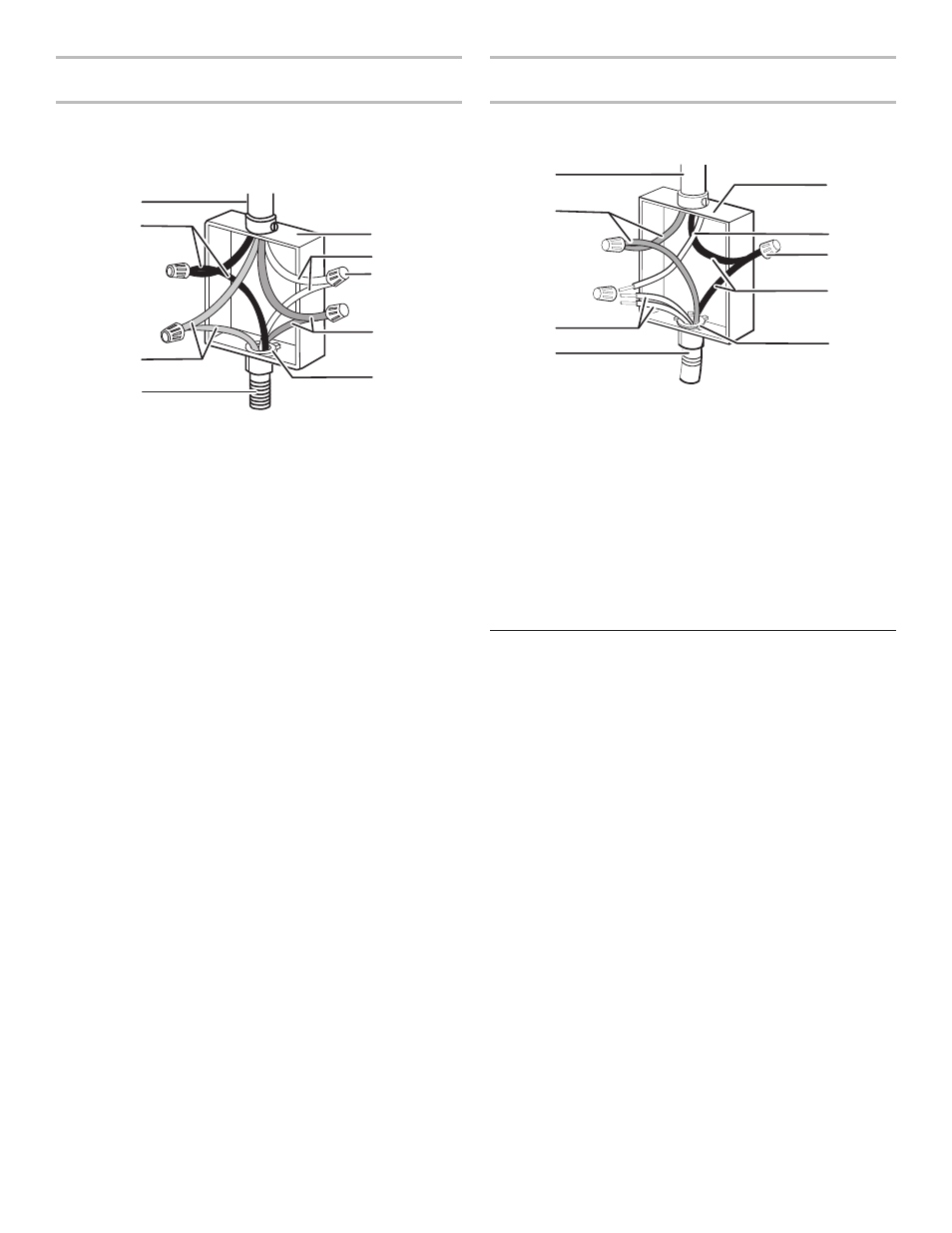

4-Wire Cable from Home Power Supply to 4-Wire
Cable from Cooktop
IMPORTANT: Use the 4-wire cable from home power supply
in the U.S. where local codes do not allow grounding through
neutral, new branch circuit installations (1996 NEC), mobile
homes and recreational vehicles, new construction, and in
Canada.
1. Connect the 2 black wires together using the UL Listed
wire connectors.
2. Connect the 2 red wires together using the UL Listed
wire connectors.
3. Connect the 2 white wires together using the UL Listed
wire connectors.
4. Connect the green (or bare) ground wire from the cooktop
cable to the green (or bare) ground wire (in the junction box)
using the UL Listed wire connectors.
5. Install junction box cover.
3-Wire Cable from Home Power Supply to 4-Wire
Cable from Cooktop - U.S. only
IMPORTANT: Use the 3-wire cable from power supply where
local codes permit connecting the frame-ground conductor to
the neutral (white) junction box wire.
1. Connect the 2 black wires together using the UL Listed
wire connectors.
2. Connect the 2 red wires together using the UL Listed
wire connectors.
3. Connect the green or bare and white cooktop cable wires
to the white (neutral) wire in the junction box using the UL
Listed wire connectors.
4. Install junction box cover.
Complete Installation
1. Check that all parts are now installed. If there is an extra part,
go back through the steps to see which step was skipped.
2. Check that you have all your tools.
3. Dispose of/recycle all packaging materials.
4. Use a mild solution of liquid household cleaner and warm
water to clean cooktop before use. Dry thoroughly with a soft
cloth. For more information, see the “Cooktop Care” section
of the Use and Care Guide.
5. Read the “Cooktop Use” section in the cooktop Use and
Care Guide.
6. Reconnect power.
NOTE: If the cooktop does not work after turning on the power,
check that a circuit breaker has not tripped or a household fuse
has not blown. See the “Troubleshooting” section in the Use and
Care Guide for further information.
If you need Assistance or Service:
Please reference the “Warranty” section of the Use and Care
Guide.
A
D
F
H
B
C
E
G
I
A. Cable from home power supply
B. Black wires
C. Bare ground wires
D. 4-wire cable from cooktop
E. Junction box F. White wires
G. UL Listed wire connector
H. Red wires
I. UL Listed or CSA Approved
conduit connector
B
C
D
E
F
H
A
G
I
A. Cable from home power supply
B. Red wires
C. White wire and green (or bare)
wire (from cooktop)
D. 4-wire cable from cooktop
E. Junction box
F. White wire
G. UL Listed wire connector
H. Black wires
I. UL Listed or CSA Approved
conduit connector
