Precautions when making connections

o

Do not turn the unit on until after making all connections.

o

Carefully read the manuals of the devices that you are connecting
and follow their instructions when making connections.

B

C

D

A

L

L

R

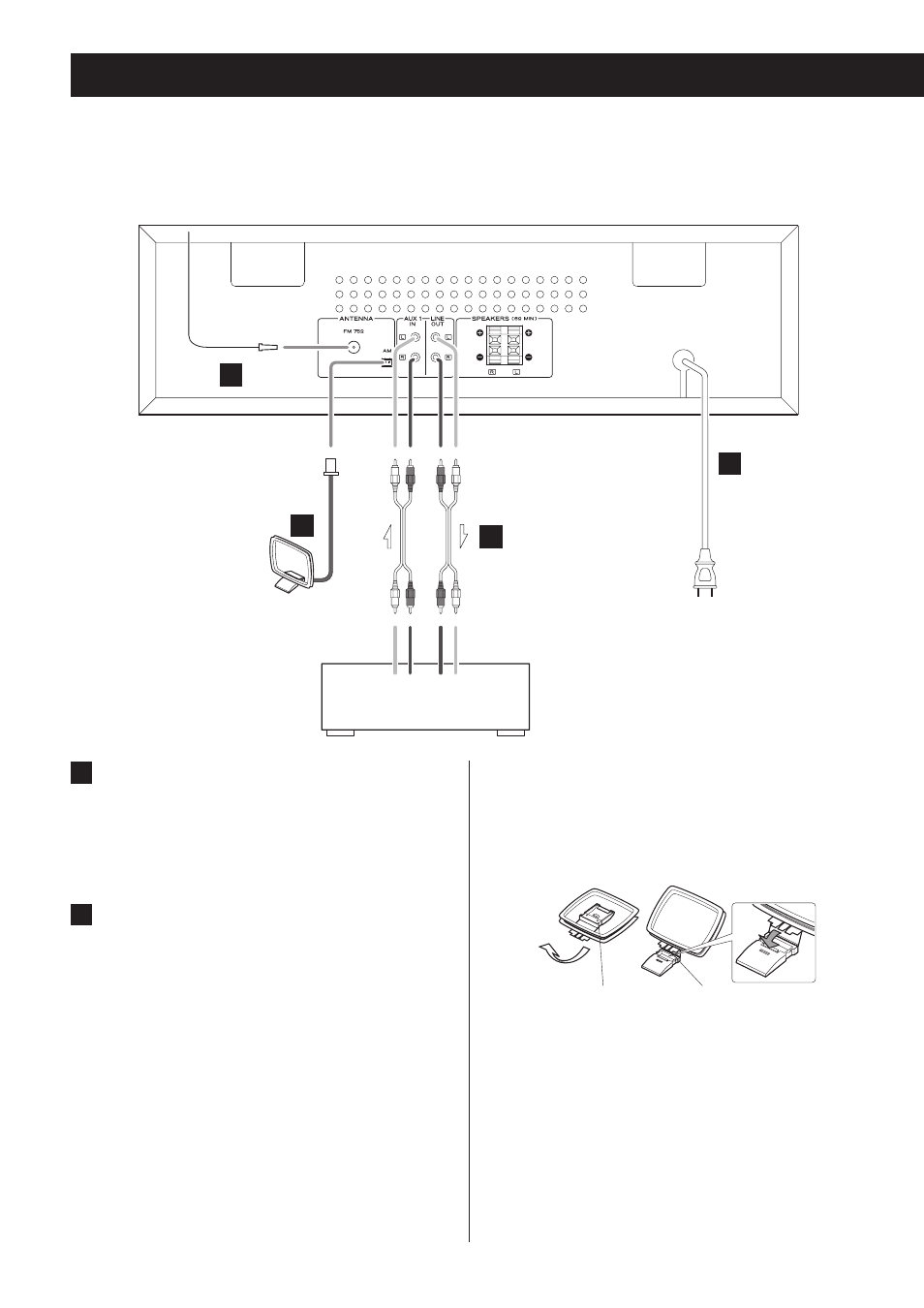

Connections (1)

A

FM antenna connector

Extend the FM antenna and fix it in the position
where the reception is best (on a window frame or
wall, for example).

B

AM antenna connector

Assemble the included AM loop antenna and con-
nect it to the AM antenna jack on the back of the
unit.
Place the antenna in the position that provides the
best AM reception.

Assembling the AM antenna

To assemble the AM antenna, turn the base in the direc-
tion of the arrow. Then, insert the hook at the bottom of
the loop into the slot in the base.

Antenna base

Hook

1

2

Recording device
Cassette deck, CD recorder, etc.

Audio output

jacks

Audio input

jacks
