Mode d’emploi SONOSAX SX-M32 Page 20 de 25

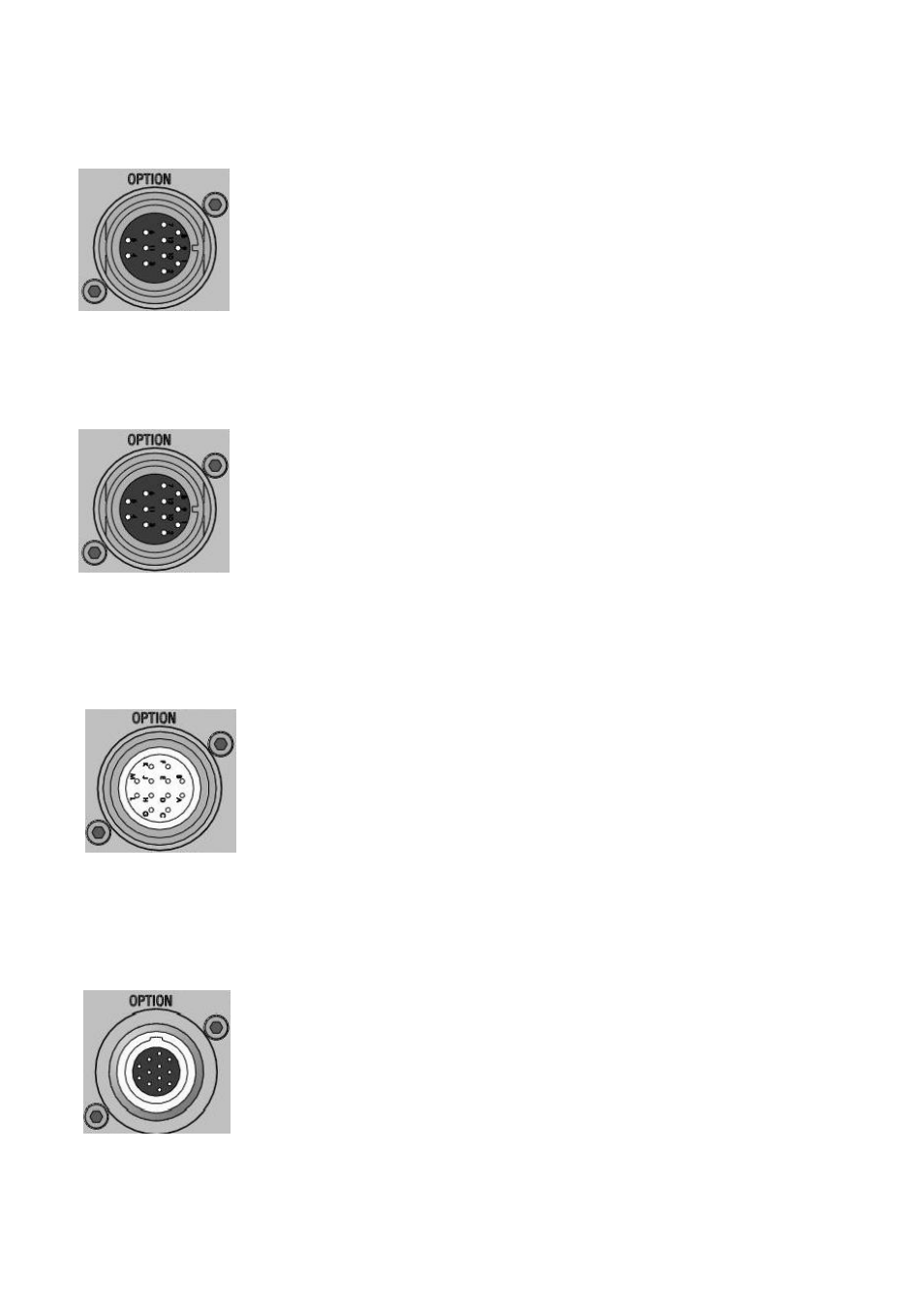

6.1.2 Connecteurs optionnels
HIROSE 10 PIN Brochage compatible: AudioDevelopment / SQN / SOUND DEVICES / COOPER / MIXY
RM15TRD-10SB Connecteur de câble correspondant: RM15TPD-10P
Pin 1 = Out LEFT Hi +
Pin 2 = Out LEFT Lo -
Pin 3 = Out RIGHT Hi +
Pin 4 = Out RIGHT Lo -
Pin 5 = Return LEFT +
Pin 6 = Return LEFT Gnd
Pin 7 = Return RIGHT +
Pin 8 = Return RIGHT Gnd
Pin 9 = GND
Pin 10 = GND
HIROSE 12 PIN Brochage compatible: SQN-5S
HR10A-10R-12S Connecteur de câble correspondant: HR10-10P12P
Pin 1 = Sub-Out LEFT
Pin 2 = Sub-Out RIGHT
Pin 3 = GND
Pin 4 = Mix Bus In LEFT
Pin 5 = Mix Bus In RIGHT
Pin 6 = GND
Pin 7 = CH1 Post-Fader Out ( can be changed to PRE fader )
Pin 8 = CH2 Post-Fader Out "
Pin 9 = CH3 Post-Fader Out "
Pin 10 = ---
Pin 11 = ---
Pin 12 = ---
TAJIMI 12 PIN Brochage compatible: SQN / Mixy / Sony
PRC 05R 12F Connecteur de câble correspondant: PRC05P12M
Pin A = Out LEFT Hi +
Pin B = Out LEFT Lo -
Pin C = Out RIGHT Hi +
Pin D = Out RIGHT Lo -
Pin E = Return LEFT +
Pin F = Return LEFT Gnd
Pin G = Return RIGHT +
Pin H = Return RIGHT Gnd
Pin J= GND
Pin K = GND
Pin L = Sub-Out LEFT
Pin M = Sub-Out Right
NEUTRIK MINICON MRF12 Brochage compatible: Mixy
MRF12 Connecteur de câble correspondant:
Pin 1 = Sub-Out LEFT ( to HF transmitter )
Pin 2 = DC IN Power / 6 to 18VDC
Pin 3 = GND
Pin 4 = GND
Pin 5 = Sub-Out RIGHT ( to HF transmitter )
Pin 6 = IN 3 Hi + ( from HF receiver )
Pin 7 = IN 3 Lo - ( from HF receiver )
Pin 8 = DC OUT 6 to 8,2VDC ( max xxmA )
Pin 9 = IN 2 Hi + ( from HF receiver )
Pin 10 = GND
Pin 11 = IN 2 Lo - ( from HF receiver )
Pin 12 = ---
