12

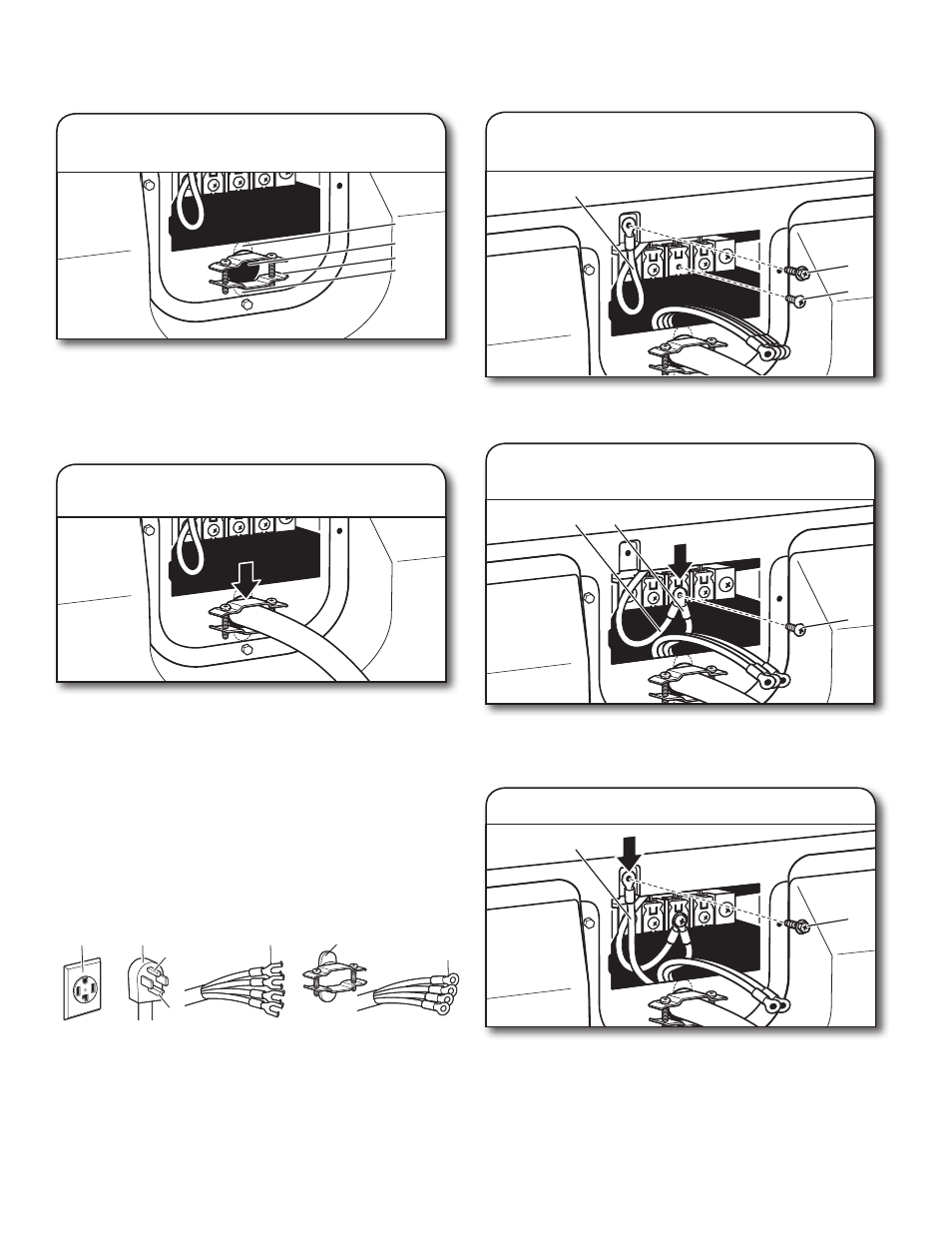

Put power supply cord through the strain relief. Be sure that
the wire insulation on the power supply cord is inside the
strain relief. The strain relief should have a tight fit with the
dryer cabinet and be in a horizontal position. Do not further
tighten strain relief screws at this point.
For 3-wire Power Supply Cord Connection.
For 4 wire Power Supply Cord Connection, continue to
step 3.
Attach power supply cord
to strain relief
2.
D
C
B
A
Attach power supply cord
strain relief
Remove the screws from a 3/4" (19 mm) UL listed strain relief
(UL marking on strain relief). Put the tabs of the two clamp
sections (C) into the hole (B) below the terminal block opening
so that one tab is pointing up (A) and the other is pointing
down (D), and hold in place. Tighten strain relief screws just
enough to hold the two clamp sections (C) together.
1.
Power supply cord strain relief
POWER SUPPLY CORD CONNECTION
4-wire Power Supply Cord Connection
Remove center terminal block screw (B). Remove neutral
ground wire (E) from external ground conductor screw (A).
B
A
E
Prepare to connect neutral
ground wire and neutral wire.
3.
IMPORTANT: A 4-wire connection is required for mobile
homes and where local codes do not permit the use of 3-wire
connections.
A. 4-wire receptacle (NEMA type 14-30R)
B. 4-prong plug
C. Ground prong
D. Neutral prong
E. Spade terminals with upturned ends
F. 3/4" (19 mm) UL listed strain relief
G. Ring terminals
B
C E
Connect neutral ground wire
and neutral wire
4.
Connect neutral ground wire (E) and neutral wire (white or
center) (C) of power supply cord under center terminal block
screw (B). Tighten screw.
A
F
Connect ground wire (F) (green or bare) of power supply cord
to external ground conductor screw (A). Tighten screw.
5.
Connect ground wire
A. B.
D.
C.
E. F.
G.
