11

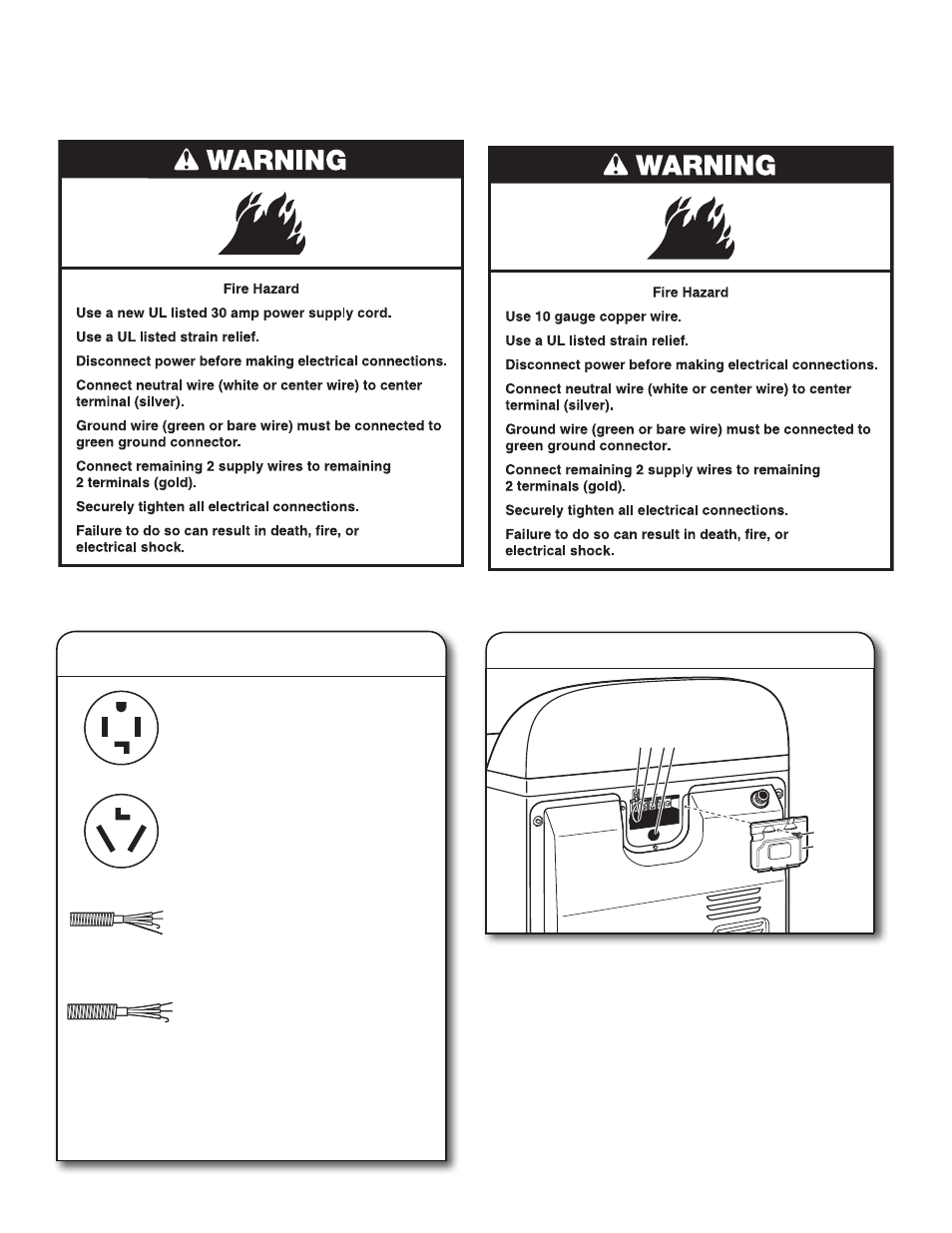

MAKE ELECTRICAL CONNECTION - U.S.A. ONLY (EFFECTUER LE
RACCORDEMENT ÉLECTRIQUE – ÉTATS-UNIS SEULEMENT)
Power Supply Cord
ELECTRICAL CONNECTION OPTIONS
1.
Choose electrical connection type
Power supply cord 4-wire receptacle
(NEMA Type 14-30R): Go to steps 1-2
on page 12 for power supply cord strain
relief: then steps 3-6 for 4-wire Power
Supply Cord Connection section. Then,
go to Venting Requirements.
3-wire direct connection: Go to steps
1-2 on page 15 for direct wire strain relief:
then steps 3-7 for 3-wire Direct Wire
Connection section. Then go to Venting
Requirements.
4-wire direct connection: Go to steps
1-2 on page 14 for direct wire strain relief:
then steps 3-8 for 4-wire Direct Wire
Connection section. Then go to Venting
Requirements.
Power supply cord 3-wire receptacle
(NEMA Type 10-30R): Go to steps 1-2
on page 13 for power supply cord strain
relief: then steps 3-5 for 3-wire Power
Supply Cord Connection section. Then
go to Venting Requirements.
NOTE: If local codes do not permit connection of a
cabinet-ground conductor to neutral wire, go to “Optional
3-wire Connection” section. This connection may be
used with either a power supply cord or a direct wire
connection.
Direct Wire
A
B C C E F
D
2.
Remove terminal block cover
Before you start, disconnect power. Remove hold-down
screw (D) and terminal block cover (A).
A. Terminal block cover
B. External ground conductor screw
C. Center terminal block screw
D. Hold-down screw
E. Neutral ground wire
F. Hole below terminal block cover
