HD SCAN™
PAGE 6
Chapter 2 : INSTALLATION
• Table Top Mounting: The HD SCAN ™ can be used directly on a table: the unit is equipped with 4 plastic feet.

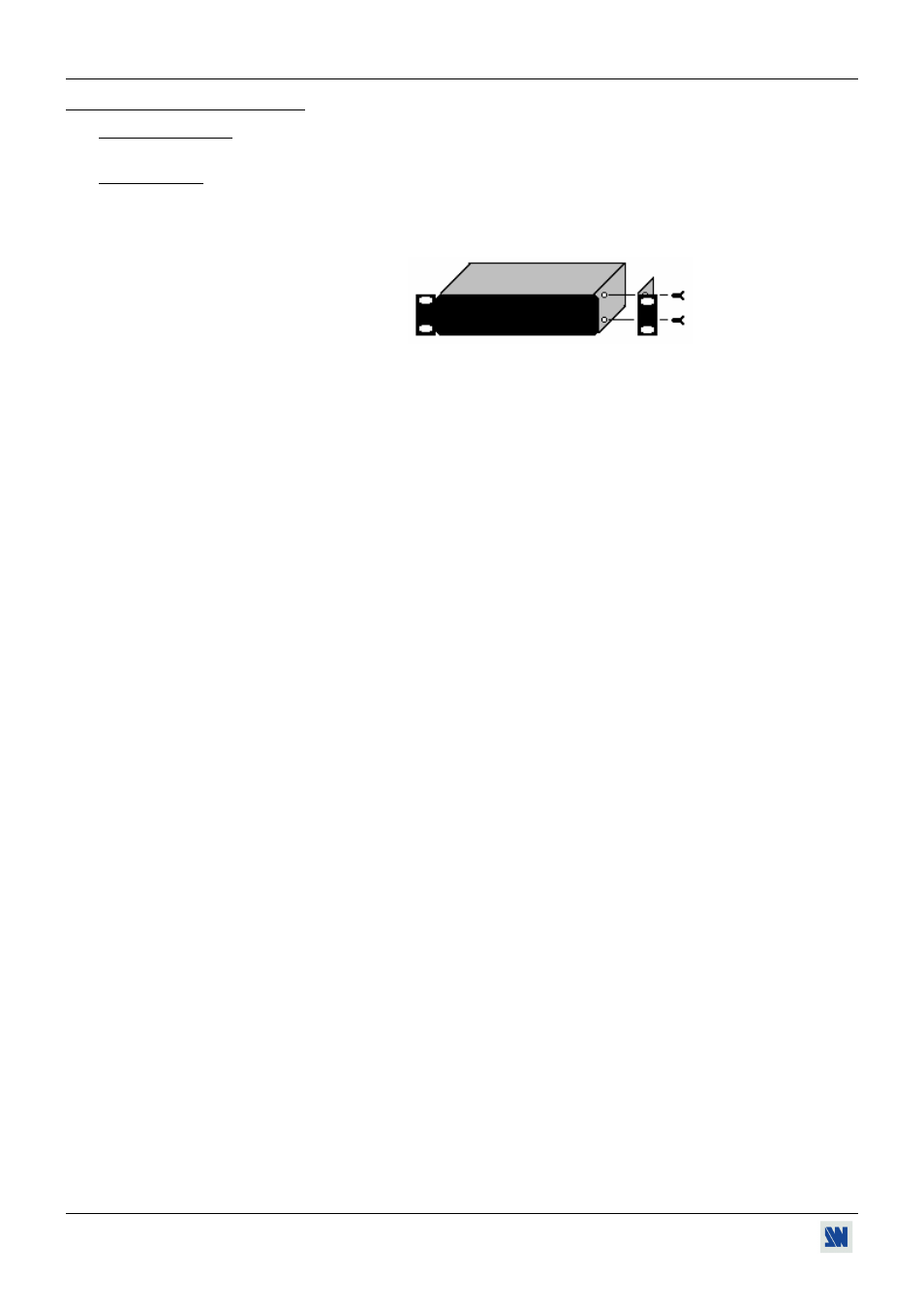

• Rack Mounting: The HD SCAN ™ is compatible with a 19" enclosure. Please follow the instructions below to install
the HD SCAN ™ into a 19” rack:
c Screw the supplied 19” brackets to the sides of the HD SCAN ™ .
d Attach the HD SCAN
™ to your rack by using 4 screws in the front panels (screws are not
included).
IMPORTANT: • The openings in the front panel and in the rear panel are for cooling. Do not cover these
openings.
• Be sure that no weight is added to the HD SCAN
™ in excess of 2 kg (4.4 lbs.).
• The maximum ambient operating temperature must not exceed 40°C (104°F).
• The rack and all mounted equipment in it must be reliably grounded to national and local
electrical codes.
