40
20. Unscrew the metal door stop T on the right-hand
side of the refrigerator's door, turn it over and screw
it to the left-hand side of the freezer's door, aligning
the hole in the plate with the one in the door (R13).
Unscrew the metal door stop T on the right-hand
side of the freezer's door, turn it over and screw it to
the left-hand side of the refrigerator's door, aligning
the hole in the plate with the one in the door (R13).
21. Insert the hole cover S, previously placed on the left-
hand side of the refrigerator's door on the right-hand
side of the same door (R13).
Fitting the doors
22. Insert the freezer's door in the top hinge (R14).
23. Insert the middle hinge and screw it in place, check-
ing that the plastic distance pieces are correctly in-
serted on the pin (R14).
24. Insert the refrigerator's door into the middle hinge
(R14).
25. Insert the bottom hinge into the refrigerator's door,
checking that the plastic distance piece is correctly
inserted on the pin between the hinge and the door.
Screw the hinge in place (R14).
26. Re-install the plinth.
27. Return the appliance to vertical position and open
the freezer's door up to the stop.
28. Remove the adhesive tape to free the cable from the
control panel and connect the connector to the board
(R15).
29. Thread the cable through the cable guide upwards,
taking care not to twist it U. Pull it gently to tighten
it and insert it into the labyrinth formed by the ribbing
on the door V,starting from the area close to the
hinge (R16).
30. Use pliers to fit the lower part and the upper part on
the right-hand side of the door's rear cover(R17).
31. Fasten the rear cover in place B (R18).
32. Insert the upper covers A (R18).


Wait two hours before restarting your refrige-
rator.
Reversing the direction the doors open EN

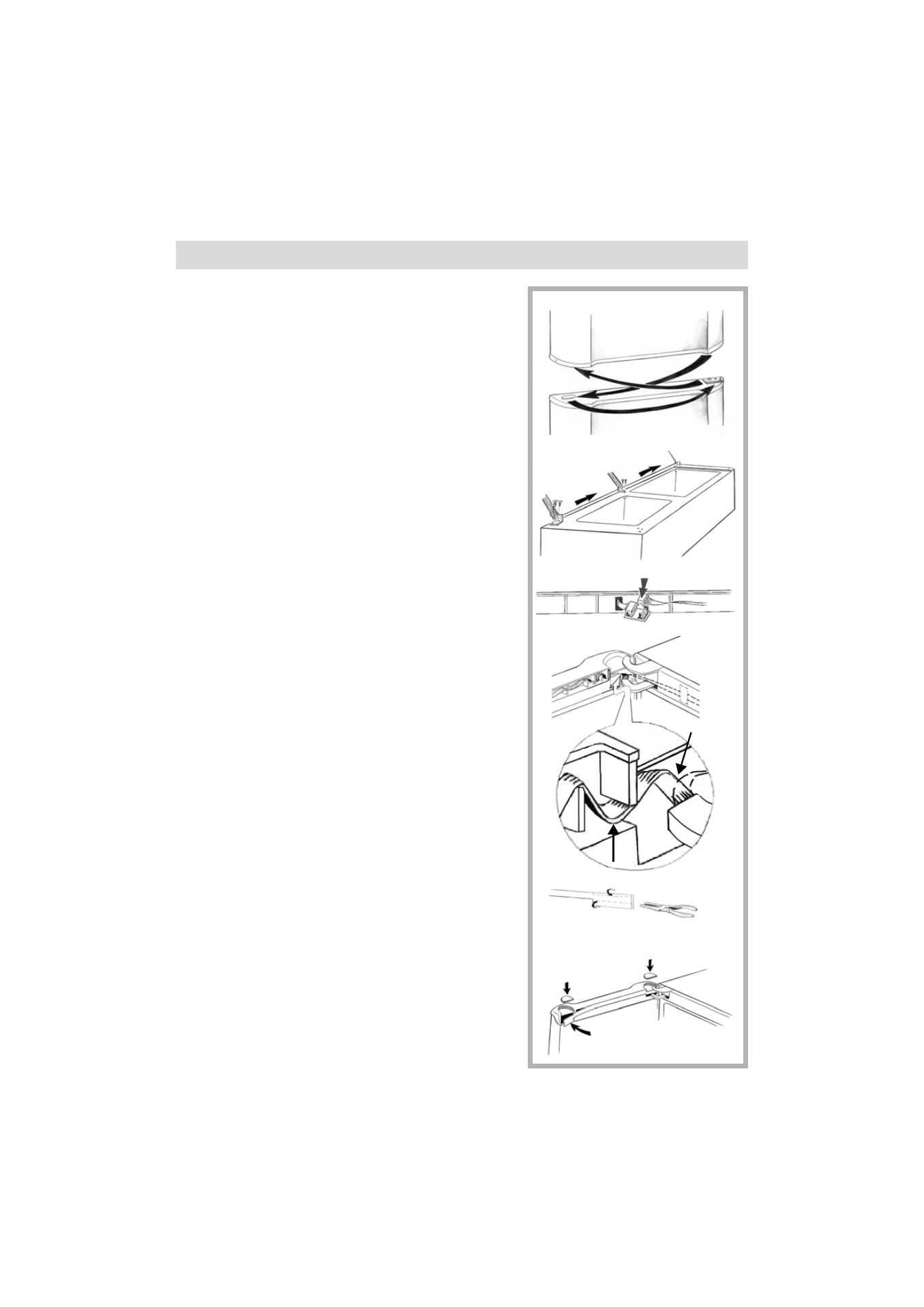

Drawing R13
T
S
Drawing R14
Drawing R15
Drawing R16
Drawing R17
Drawing R18
U
V
A
A
B
