10. Remove the covers I from the control panel (R7).
11. Unscrew and remove the top right-hand hinge L
(R7).
12. Unscrew the control panel M and remove it, lifting
the top part from the middle so as to free the three
spikes on the inside. Swivel the control panel down-
wards and then to the side to free the cable (R8).
13. Unscrew the cable guide N and release it from its
housing on the right of the appliance. Remove the
cable from its housing on the right and swivel the ca-
ble guide 180°. Insert it in the housing on the left and
screw it in place (R12). Insert the cable in the hous-
ings on the left of the crosspiece.
14. Re-install the control panel, fitting the cable and the
cable guide in the housing provided on the left O. Po-
sition the spikes correctly in the central section to the
top and the bottom of the control panel and then
screw the control panel in place (R10).
15. The upper left-hand hinge P is placed inside the
plinth (R11). Remove it and inset it into the housing
on the left on the control panel R. Fasten it with the
two screws (R12).
16. Insert the covers Q and fasten them onto the control
panel (R12).
17. Thread the cable through the cable guide upwards,
taking care not to twist it and fasten it to the control
panel with adhesive tape.
18. So as not to lose the top right-hand hinge, which you
may need later, store it in the housing in the plinth
(R11).
19. Remove the hole covers S on the left-hand side of
the refrigerator's door (R13).
Reversing the direction the doors open EN
I

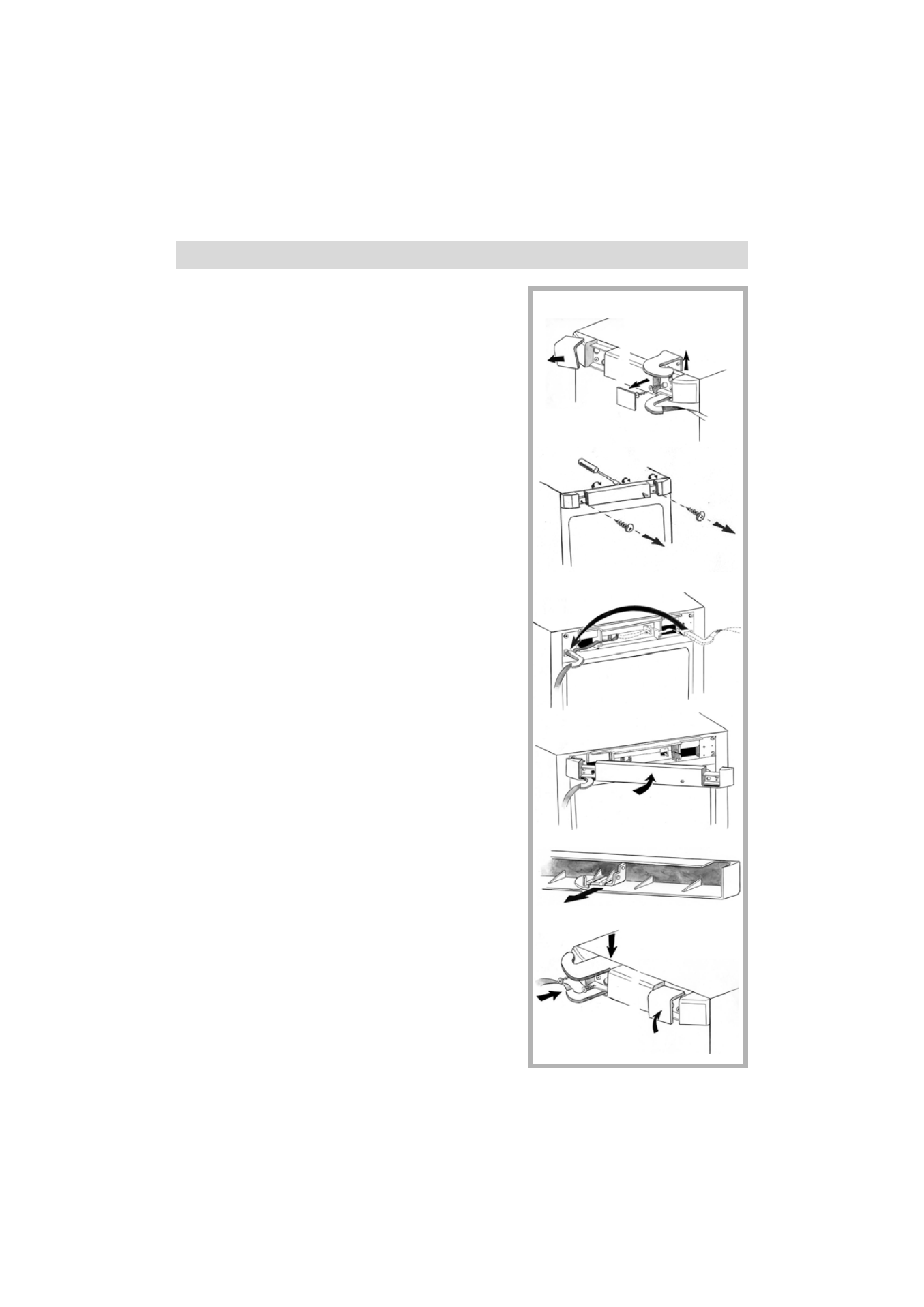

Drawing R7
N
L
I
M
Drawing R9
Drawing R10
O
Drawing R8
Drawing R11
P
Drawing R12
R
Q
Q
