96
MAINTENANCE
Rear Suspension
InspectRear Shock Absorber Preload (Ride Height)
2. The uppermost spanner nut on the shock is the locknut (1). The
spanner nut closest to the spring is the adjuster nut (2). Loosen the
locknut by turning it counterclockwise (as viewed from the top of
shock absorber) with the spanner wrench.
3. Spray a light lubricant on the adjuster nut where it contacts the
spring. DO NOT allow spray to contact the drive belt.
4. Adjust shock absorber preload by rotating adjuster nut clockwise (as
viewed from the top of shock absorber) to INCREASE the ride
height measurement (firm), and counterclockwise to DECREASE
the ride height measurement (softer). Re-check ride-height
dimension after adjustment.
5. Tighten lock nut securely against adjuster nut when adjustment is
complete.
6. Reinstall fuse box bracket and securely tighten the 3 bolts that
secure panel to chassis.
7. Re-install fuse box and right side cover.

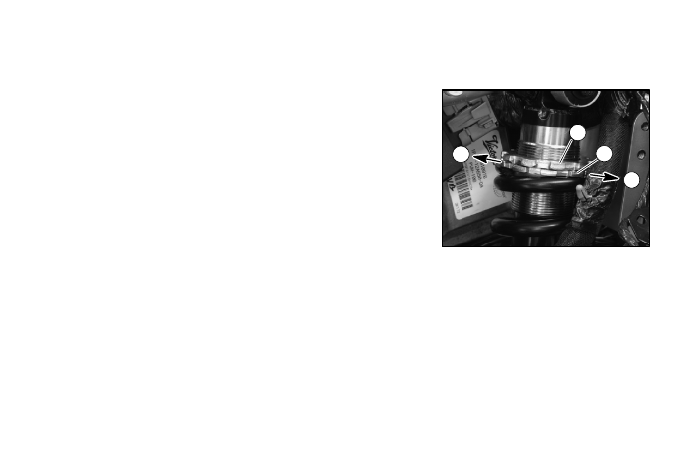

1. Preload Adjustment Locknut
2. Preload Adjuster Nut
3. Increase Ride Height Measurement
4. Reduce Ride Height Measurement
1
3
4
2
