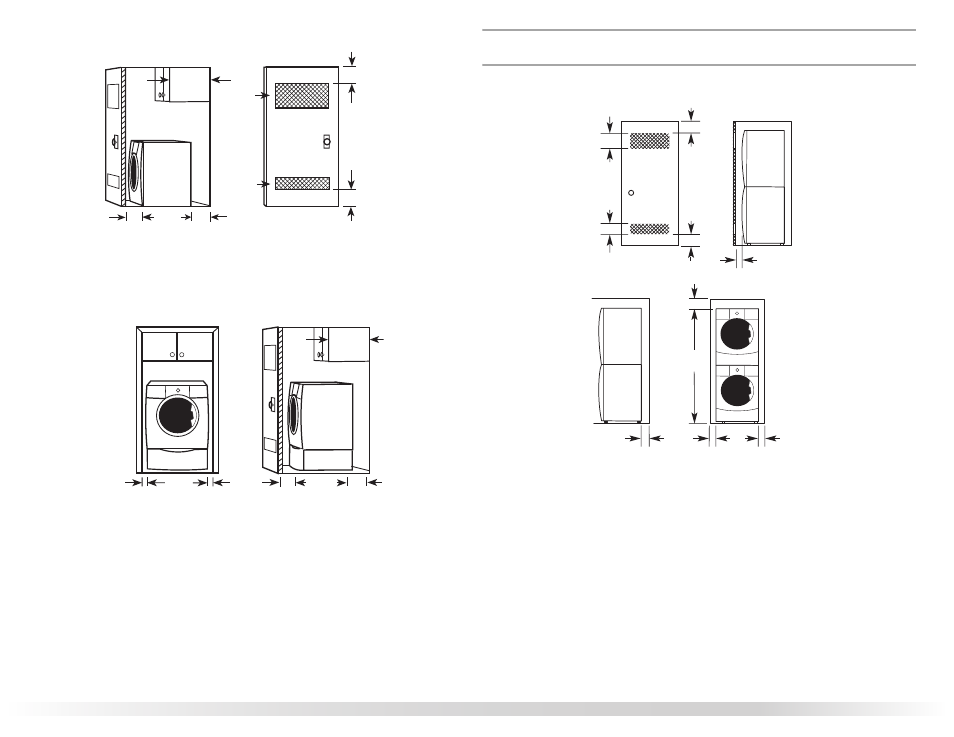

Recessed area or closet installation
A
B
3"
(76 mm)
3"
(76 mm)
1"
(25 mm)
4"
(102 mm)
30½"
(775 mm)
48 in.
2
*
(310 cm
2
)
24 in.
2
*
(155 cm
2
)
14"* max.
(356 mm)
A. Side view - closet or confined area
B. Closet door with vents
*Min. top and bottom air openings for closet door.
Recessed or closet installation - Washer on pedestal
1"
(25 mm)
30½"
(775 mm)
1"
(25 mm)
1"
(25 mm)
27"
(686 mm)
4"
(102 mm)
A
B
14"* max.
(356 mm)
A. Recessed area
B. Side view - closet or confined area
Recommended installation spacing for recessed or closet installation, with stacked
washer and dryer
The dimensions shown are for the recommended spacing.
48 in.
2
*
(310 cm
2
)
3" (76 mm)
12" (305 mm)
72"
(1829 mm)
27"
(686 mm)
3" (76 mm)
1" (25 mm)
5¼"**
(133 mm)
1"***
(25 mm)
1"***
(25 mm)
24 in.
2
*
(155 cm
2
)
*Min. top and bottom air openings for closet door.
**External exhaust elbow requires additional space.
†
Wall, door and floor molding may require additional spacing.
