INSTALLATION REQUIREMENTS
Tools and Parts
Gather the required tools and parts before starting installation. The parts supplied are in the
washer drum.
Tools needed for connecting the water inlet hoses
„ Pliers (that open to 1 9 /
16
" [39.5 mm]) „ Flashlight (optional)
Tools needed for connecting the drain hose
„ Locking pliers (that open to 1 9 / 16 " [39.5 mm])
Tools needed for installation
„ Open end wrenches
14 mm and 13 mm
„ Level
„ Wood block
„ Ruler or measuring tape

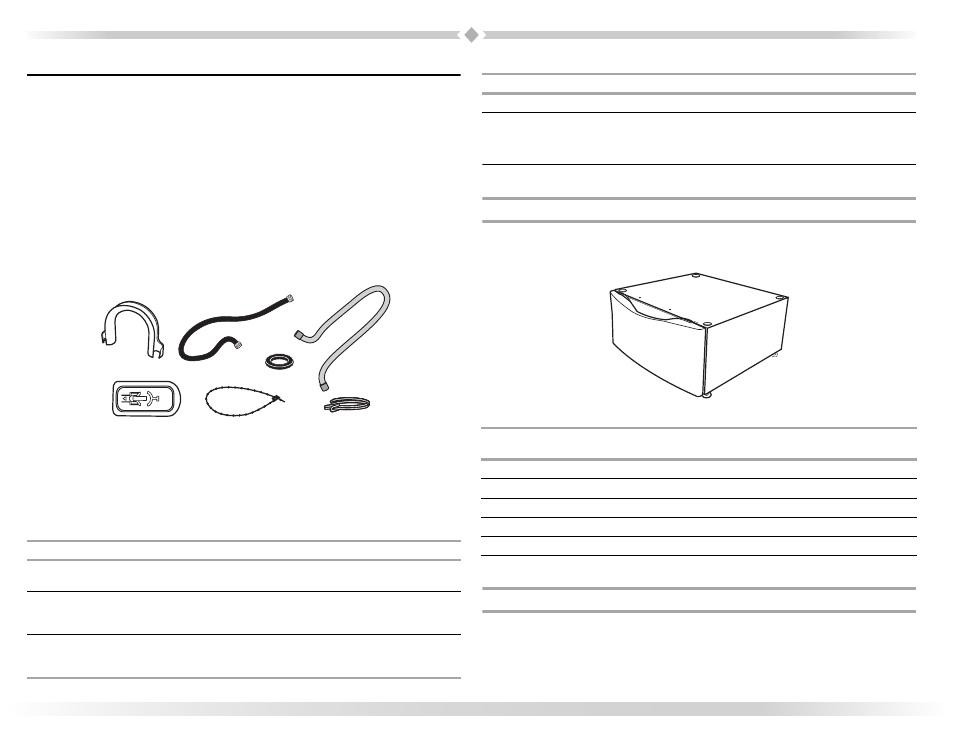

Parts supplied
A B
F
G
C
D E
A. Drain hose form
B. Inlet hose (2)
C. Inlet hose washer (4)
D. Transport bolt hole plug (4)
E. Beaded strap
F. Drain hose
G. Hose clamp
Alternate Parts
Your installation may require additional parts. If you are interested in purchasing one of the
items listed here, call the toll-free number on the cover or in the “Assistance or Service”
section.
If You Have You Will Need to Buy
Laundry tub or standpipe
taller than 96" (2.4 m) Sump pump system (if not already available)
Overhead sewer Standard 20 gal. (76 L), 30" (762 mm) tall drain tub or
utility sink and sump pump (available from local plumbing
suppliers)
Floor drain Siphon break, Part Number 285834; additional drain hose,
Part Number 8318155; and connector kit, Part
Number 285835
Drain hose too short 4 ft (1.2 m) drain hose extension kit, Part Number 285863
Water faucets beyond reach
of fill hoses 2 longer water fill hoses:
6 ft (1.8 m) Part Number 76314
10 ft (3.0 m) Part Number 350008
Options
Pedestal
You have the option of purchasing pedestals of different heights separately for this washer. You
may select a 10" (254 mm) or a 15.5" (394 mm) pedestal. The pedestal will add to the total
height of the washer.
Optional pedestal
Pedestal Height Approximate height
with washer Color Model Number
10" (254 mm) 46" (1168 mm) White MHP1000SQ0
10" (254 mm) 46" (1168 mm) Black MHP1000SB0
10" (254 mm) 46" (1168 mm) Cranberry XHP1000WR
15.5" (394 mm) 51.5" (1308 mm) White MHP1500SQ0
15.5" (394 mm) 51.5" (1308 mm) Black MHP1500SB0
15.5" (394 mm) 51.5" (1308 mm) Blue MHP1500SK0
Stack Kit
Are you planning to stack your washer and dryer? To do so, you will need to purchase a
Stack Kit.
To order, call the dealer from whom you purchased your washer or refer to the “Assistance or
Service” section. Ask for Part Number 8572546.
