31-2001170 Rev 0
5
Design Information

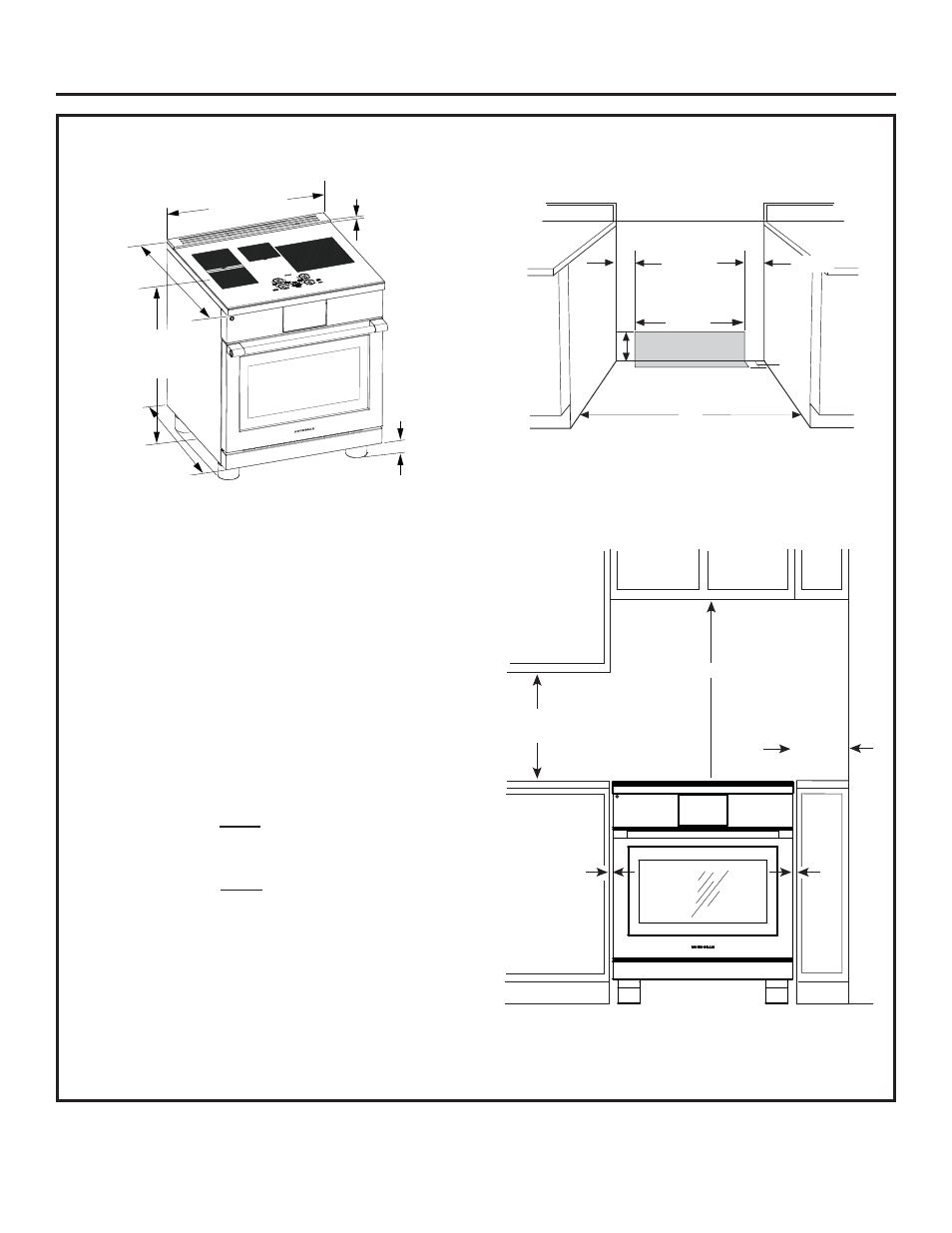

PRODUCT DIMENSIONS AND CLEARANCES
30” Wide Range Models
MINIMUM DIMENSIONS BETWEEN COOKTOP,
WALLS AND ABOVE THE COOKTOP:
Make sure the wall covering, countertop, flooring and
cabinets around the range can withstand the heat (up to
200°F) generated by the range.
A. Above range: Allow 30” minimum clearance between
surface units and bottom of unprotected wood or
metal cabinet, or allow a 24” minimum when bottom
of wood or metal cabinet is protected by no less than
1/4” thick flame retardant millboard covered with not
less than No. 28 MSG sheet metal, (.015”), .015”
thick stainless steel, .024” aluminum or .020” copper.
B. Adjacent to range below the cooktop: This
appliance has been approved for 0” spacing to
adjacent surfaces below the cooktop.
C. Adjacent to range above the cooktop : This
appliance has been approved for 0” spacing to
adjacent surfaces above the cooktop. However, a
6” minimum lateral spacing to surfaces less than
15” above the cooktop is recommended to reduce
exposure to steam, grease splatter and heat.
To reduce the risk of burns or fire when reaching over
hot surface elements, cabinet storage space above the
cooktop should be avoided. If cabinet storage space
is to be provided above the cooktop, the risk can be
reduced by installing a range hood that projects at least
5” beyond the front of the cabinets. Cabinets installed
above the cooktop must be no deeper than 16”.
Universal Utility Locations
28-1/2” Depth to
Front of Door
29-7/8” Width
9/16” (Top of
Glass to Top
of Vent Trim)
29 3/8”
Depth to
Front of
Bullnose
35-7/16” to
36-15/16”
Height to Top of
Glass
Toekick/
Leg Height
3-1/4”
to 4-3/4”
30”
4-5/8”
20-3/4”
Electric 6-1/2”
2”
4-5/8”
C
Both
Sides
A
C
Both
Sides
B B
